Solace 2.5 Ton R-32 Wall-Mount Air Handler - S-AWST30LU1308A
$1,171.00
$995.35
(You save $175.65)
brand: Solace
- SKU:
- S-AWST30LU1308A
- Shipping:
- Calculated at Checkout

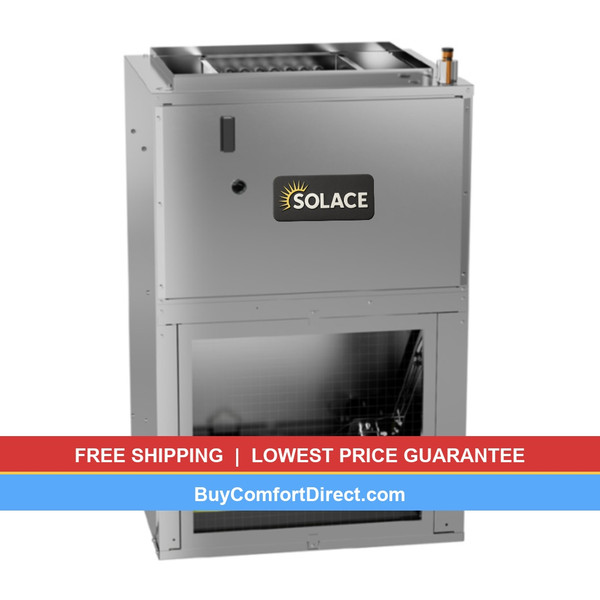

Solace 2.5 Ton R-32 Wall-Mount Air Handler - S-AWST30LU1308A
The Solace S-AWST30LU1308A is a high-efficiency wall-mounted air handler designed for use with R-32 refrigerant systems. Featuring an advanced ECM blower motor, this unit delivers precise airflow control and reduced energy consumption. Includes a factory-installed 8kW (27,296 BTU/h) electric heat kit for supplemental heating. This air handler requires a compatible outdoor condensing unit (sold separately) to complete your heating and cooling system.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-AWST30LU1308A |
| Product Type | Wall-Mounted Air Handler |
| Tonnage | 2.5 Tons |
| Airflow | 1000 CFM |
| Blower Motor Type | ECM |
| Refrigerant Type | R-32 |
| Included Heat Kit | 8kW (27,296 BTU/h) |
| Voltage/Phase/Frequency | 208/230V/1-Ph/60Hz |
| Min Circuit Ampacity | 15.0 A |
| Max Overcurrent Protection | 20.0 A |
| Mounting Type | Wall-Mounted |
| Dimensions (HxWxD) | 30.0" x 38.0" x 11.0" |
| Shipping Weight | 45 lbs |
Comprehensive Warranty Protection
10
Year Parts Warranty
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
10-Year Limited Parts Warranty
