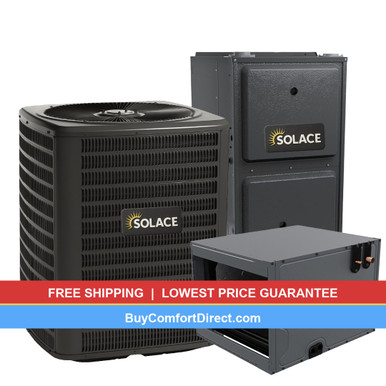

Solace 3.5 Ton 15.2 SEER2 80,000 BTU 92% AFUE AC and Furnace System – Horizontal – S-GLXS5BA4210
$6,318.00
-
Product Details
- Model Numbers
- S-GLXS5BA4210
S-GR9S920804CNA
S-CHPTA4230C3 - Brand
- Solace
- Condition
- New
- Warranty
- 10-Year Limited Parts Warranty
Description
SOLACE 3.5 Ton 15.2 SEER2 R-32 92% AFUE Gas Furnace Air Conditioning System (Horizontal Coil)
Experience reliable home comfort with this complete Solace 3.5 ton HVAC system (Horizontal Coil). This matched system combines a high-efficiency 15.2 SEER2 air conditioner, a 92% AFUE single-stage gas furnace with multi-speed ECM blower, and a precision-engineered horizontal evaporator coil with factory-installed TXV. Designed for dependable year-round heating and cooling performance, this system delivers excellent energy efficiency, quiet operation, and proven reliability with R-32 refrigerant.
Technical Specifications
Air Conditioner — S-GLXS5BA4210 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GLXS5BA4210 |
| Product Type | Air Conditioner Condenser |
| Tonnage | 3.5 Ton |
| Cooling Capacity | 42,000 BTU/h |
| SEER2 Rating | 15.2 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 141 oz |
| Compressor Type | Scroll |
| Voltage/Phase/Frequency | 208/230-1V-1-60Hz |
| Min Circuit Ampacity | 19.3 A |
| Max Overcurrent Protection | 30 A |
| Sound Level | 74.0 dBA |
| Liquid Line Size | ⅜” |
| Suction Line Size | 1⅛” |
| Dimensions (W×D×H) | 35.5″ × 35.5″ × 36.5″ |
| Shipping Weight | 250 lbs |
Gas Furnace — S-GR9S920804CNA Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GR9S920804CNA |
| Product Type | Gas Furnace |
| BTU Input | 80,400 BTU/h |
| BTU Output | 73,968 BTU/h |
| AFUE | 92% |
| Heating Stages | Single Stage |
| Blower Motor Type | Multi-Speed ECM |
| Configuration | Multi-Position |
| Voltage/Phase/Frequency | 120/1/60V-1-60Hz |
| Min Circuit Ampacity | 15.0 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (W×D×H) | 21.0″ × 29.0″ × 33.0″ |
| Shipping Weight | 160 lbs |
Evaporator Coil — S-CHPTA4230C3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-CHPTA4230C3 |
| Product Type | Cased Horizontal Evaporator Coil |
| Tonnage | 3.5 Ton |
| Metering Device | Factory-Installed TXV |
| Configuration | Cased |
| Liquid Line Connection | ⅜” |
| Suction Line Connection | ¾” |
| Dimensions (W×D×H) | 25.0″ × 25.25″ × 19.0″ |
| Shipping Weight | 47 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
Additional information
| Weight | 350.00 lbs |
|---|---|
| Dimensions | 48.00 × 48.00 × 60.00 in |
| System Type | AC + Gas Furnace System |
| Brand | Solace |
| Tonnage | 3.5 Ton |
| SEER2 | 15.2 |
| AFUE | 92% |
| Heating BTU | 80,000 BTU |
| Refrigerant | R-32 |
| Airflow Direction | Horizontal |
| Blower Motor | Multi-Speed ECM |
| Voltage | 115V |
Related products
-
Solace 1.5 Ton Air Handler – Wall-Mount – S-AWST18SU1303A
NewFree Shipping$965.00-
Add to cart -
Solace 3.5 Ton 14.3 SEER2 Heat Pump – S-GLZS4BA4210
NewFree Shipping$3,447.00-
Add to cart -
Solace 2 Ton Air Handler – Wall-Mount – S-AWST24SU1310A
NewFree Shipping$1,037.00-
Add to cart -

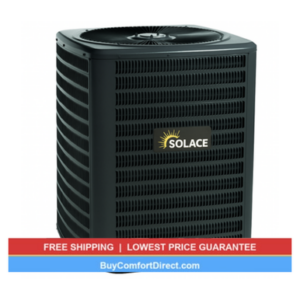

Solace 3.5 Ton 14.3 SEER2 Air Conditioner – S-GLXS4BA4210
