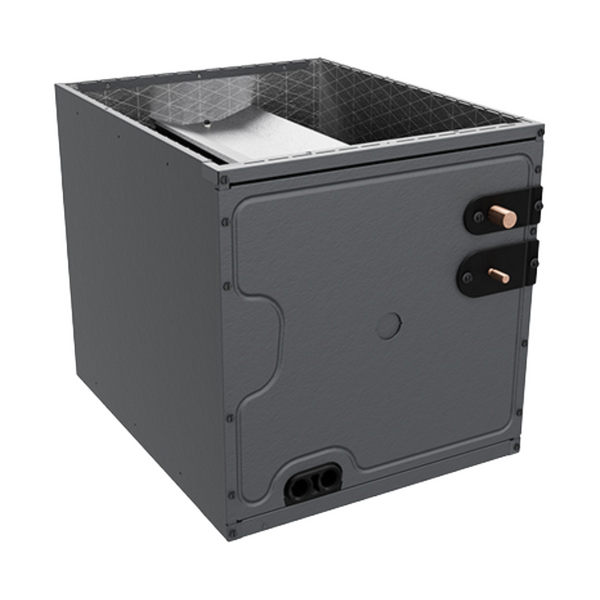

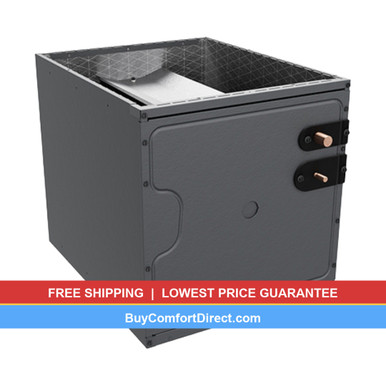

Solace 3.5 Ton R-32 Upflow Evaporator Coil - S-CAPTA4230C3
brand: Solace
- SKU:
- S-CAPTA4230C3
- Shipping:
- Calculated at Checkout
Solace 3.5 Ton R-32 Upflow Evaporator Coil - S-CAPTA4230C3
The Solace S-CAPTA4230C3 is a high-efficiency 3.5 ton upflow evaporator coil designed for use with R-32 refrigerant systems. This cased coil features TXV metering for optimal refrigerant control and includes a factory-installed drain pan for easy installation. Designed for upflow applications, it pairs with compatible outdoor condensing units to deliver reliable cooling performance. This evaporator coil requires a compatible outdoor unit and furnace or air handler (sold separately) to complete your system.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-CAPTA4230C3 |
| Product Type | Upflow Evaporator Coil |
| Tonnage | 3.5 Tons |
| Nominal Cooling Capacity | 42,000 BTU/h |
| Refrigerant Type | R-32 |
| Metering Device | TXV |
| Coil Configuration | Upflow / Vertical |
| Cabinet Type | Cased |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Drain Connection | 3/4" |
| Dimensions (WxDxH) | 18.0" x 21.0" x 34.5" |
| Shipping Weight | 47 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
