Solace 3 Ton 13.4 SEER2 Packaged Gas/Electric - S-GPUM33606031
brand: Solace
- SKU:
- S-GPUM33606031
- Condition:
- New
- Shipping:
- Free Shipping

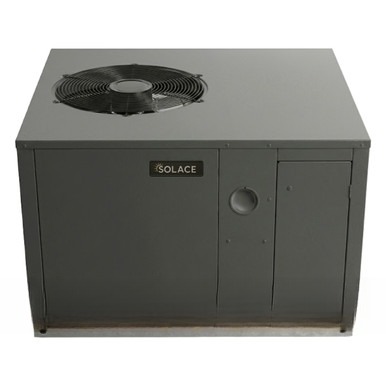

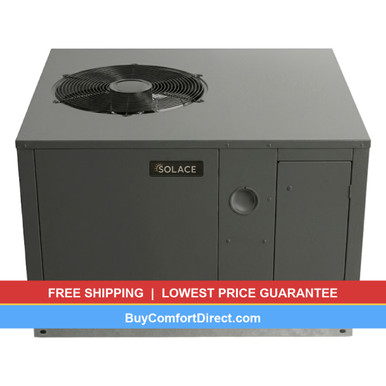

Solace 3 Ton 13.4 SEER2 Packaged Gas/Electric - S-GPUM33606031
The Solace S-GPUM33606031 is an all-in-one 3 ton packaged gas/electric rated at 13.4 SEER2. It uses R-32 refrigerant, consolidates the indoor and outdoor sections into a single cabinet for easier installs, and ships pre-charged for straightforward setup. It meets DOE efficiency requirements for Northeast-region installations; verify local eligibility outside those zones.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GPUM33606031 |
| Product Type | Packaged Unit |
| Tonnage | 3 Ton |
| SEER2 Rating | 13.4 |
| EER2 Rating | 10.6 |
| Refrigerant Type | R-32 |
| Cooling Capacity (BTU/h) | 33800 BTU/h |
| Sensible Capacity (BTU/h) | 26347 BTU/h |
| Heating Input (BTU/h) | 60000 BTU/h |
| Heating Output (BTU/h) | 48600 BTU/h |
| AFUE | 81 |
| Burners | 3 |
| Temperature Rise Range (°F) | 30-60 °F |
| Blower Motor | ECM (0.5 HP) |
| Compressor Type | Scroll |
| Factory Charge (oz) | 75 oz |
| Voltage/Phase/Frequency | 208/230V/1-Ph/60Hz |
| Min Circuit Ampacity | 42.8 A |
| Max Overcurrent Protection | 60 A |
| Sound Level (dBA) | 76 dBA |
| Cabinet Size | None |
| Shipping Weight | 510 lbs |
| Operating Weight | 500 lbs |
California Low-NOx Notice
- GPGM3 models comply with California Low NOx standards (40 ng/J NOx) but are not eligible for installation in SCAQMD, SJVAPCD, or BAAQMD.
- GPUM3 models comply with SCAQMD Rule 1111, SJVAPCD Rule 4905, and BAAQMD Rule 9-4 14 ng/J NOx emission limits.
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant - Northeast Region Only
This equipment meets Department of Energy efficiency requirements for residential HVAC installations only in Northeast U.S. climate zones. Typically not approved for installation in South, Southeast, or Southwest regions.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
