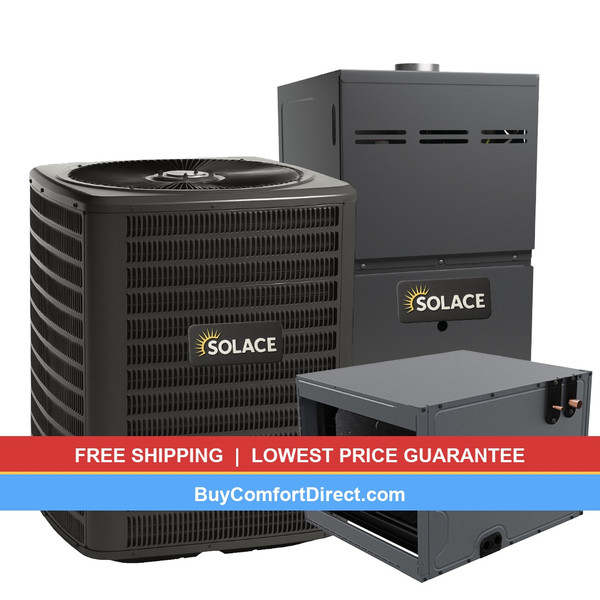

Solace 4 Ton 15.2 SEER2 80,000 BTU 80% AFUE Dual Fuel System - Horizontal - S-GLZS5BA4810
brand: Solace
- SKU:
- S-GLZS5BA4810,S-GR9S800804CNA,S-CHPTA4830C3
- Condition:
- New
- Shipping:
- Free Shipping

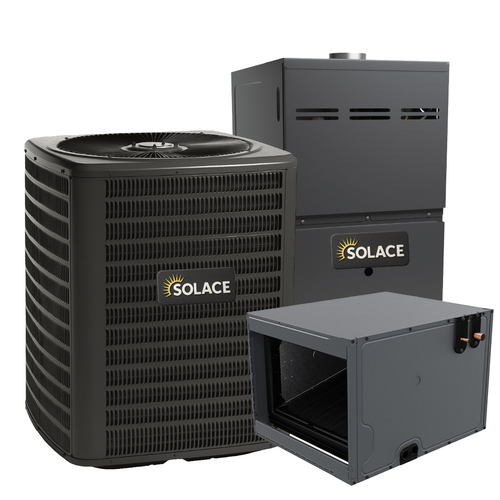

SOLACE 4 Ton 15.2 SEER2 R-32 80% AFUE Dual Fuel System (Horizontal Coil)
Experience ultimate year-round comfort with this complete Solace 4 ton dual fuel HVAC system (Horizontal Coil). This advanced matched system combines a high-efficiency 15.2 SEER2 heat pump, a 80% AFUE single-stage gas furnace with multi-speed ECM blower, and a precision-engineered horizontal evaporator coil with factory-installed TXV. The dual fuel configuration automatically switches between electric heat pump and gas furnace operation to optimize efficiency and comfort. Designed for exceptional year-round heating and cooling performance, this system delivers outstanding energy efficiency, quiet operation, and proven reliability with R-32 refrigerant.
Technical Specifications
Heat Pump — S-GLZS5BA4810 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GLZS5BA4810 |
| Product Type | Heat Pump Condenser |
| Tonnage | 4 Ton |
| Cooling Capacity | 48,000 BTU/h |
| Heating Capacity (47°F) | 48,000 BTU/h |
| SEER2 Rating | 15.2 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 174 oz |
| Compressor Type | Scroll |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 25.5 A |
| Max Overcurrent Protection | 40 A |
| Sound Level | 73.6 dBA |
| Liquid Line Size | ⅜" |
| Suction Line Size | 1â…›" |
| Dimensions (W×D×H) | 35.5" × 35.5" × 36.5" |
| Shipping Weight | 284 lbs |
Gas Furnace — S-GR9S800804CNA Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GR9S800804CNA |
| Product Type | Gas Furnace |
| BTU Input | 80,400 BTU/h |
| BTU Output | 64,320 BTU/h |
| AFUE | 80% |
| Heating Stages | Single Stage |
| Blower Motor Type | Multi-Speed ECM |
| Configuration | Multi-Position |
| Voltage/Phase/Frequency | 120/1/60V-1-60Hz |
| Min Circuit Ampacity | 15.0 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (W×D×H) | 21.0" × 29.0" × 33.0" |
| Shipping Weight | 160 lbs |
Evaporator Coil — S-CHPTA4830C3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-CHPTA4830C3 |
| Product Type | Cased Horizontal Evaporator Coil |
| Tonnage | 4 Ton |
| Metering Device | Factory-Installed TXV |
| Configuration | Cased |
| Liquid Line Connection | ⅜" |
| Suction Line Connection | ¾" |
| Dimensions (W×D×H) | 26.0" × 26.0" × 20.0" |
| Shipping Weight | 50 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
