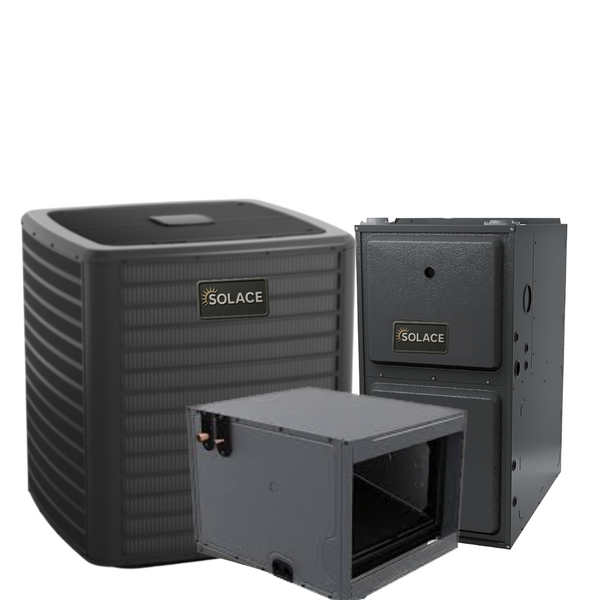

SOLACE 4 Ton 17.2 SEER2 R-32 96% AFUE 80,000 BTU Gas Furnace Air Conditioning System (Horizontal Coil)
brand: Solace
- SKU:
- S-GLXT7CA4810,S-CHPTA6030D3,S-GRVT960804CN
- Condition:
- New
- Shipping:
- Free Shipping
SOLACE 4 Ton 17.2 SEER2 R-32 96% AFUE 80,000 BTU Gas Furnace Air Conditioning System (Horizontal Coil)
This comprehensive Solace HVAC system combines the S-GLXT7CA4810 air conditioner, S-GRVT960804CN 96% AFUE gas furnace, and S-CHPTA6030D3 evaporator coil for complete year-round comfort. Rated at 17.2 SEER2, this 4 ton system provides efficient cooling in summer and reliable gas heating in winter. Premium features include two-stage compression. Premium features include two-stage heating, variable-speed ECM blower. Uses eco-friendly R-32 refrigerant and delivers outstanding performance for residential applications.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GLXT7CA4810 |
| Product Type | Air Conditioner |
| Tonnage | 4 Ton |
| Cooling Capacity (BTU/h) | 48000 BTU/h |
| SEER2 Rating | 17.2 |
| Refrigerant Type | R-32 |
| Compressor Type | Two-Stage Scroll |
| Voltage/Phase/Frequency | 208/230V/1-Ph/60Hz |
| Min Circuit Ampacity | 31.6 A |
| Max Overcurrent Protection | 50.0 A |
| Factory Charge (oz) | 180.0 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 1-1/8" |
| Sound Level (dBA) | 73 dBA |
| Dimensions (H×W×D) | 27.4" x 36.6" x 13.8" |
| Shipping Weight | 281.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GRVT960804CN |
| Product Type | 96% AFUE Gas Furnace |
| AFUE Rating | 96% |
| Input BTU/h | 80,000 BTU |
| Output BTU/h | 77,600 BTU |
| Heating Stages | 2 |
| Blower Motor Type | Variable Speed ECM (0.75 HP) |
| Airflow (CFM) | 1600 CFM |
| Fuel Type | Natural Gas / LP |
| Gas Connection Size | 1/2" FPT |
| Voltage/Phase/Frequency | 115V/1-Ph/60Hz |
| Min Circuit Ampacity | 10.9 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (H×W×D) | 44.0" x 21.0" x 29.0" |
| Shipping Weight | 141.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-CHPTA6030D3 |
| Product Type | Horizontal Evaporator Coil |
| Tonnage | 5 Ton |
| Nominal Cooling (BTU/h) | 60000 BTU/h |
| Refrigerant Type | R-32 |
| Metering Device | TXV |
| Coil Configuration | Cased Horizontal |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Drain Connection Size | 3/4" |
| Dimensions (W×D×H) | 30.0" x 21.0" x 24.5" |
| Shipping Weight | 82.0 lbs |
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
