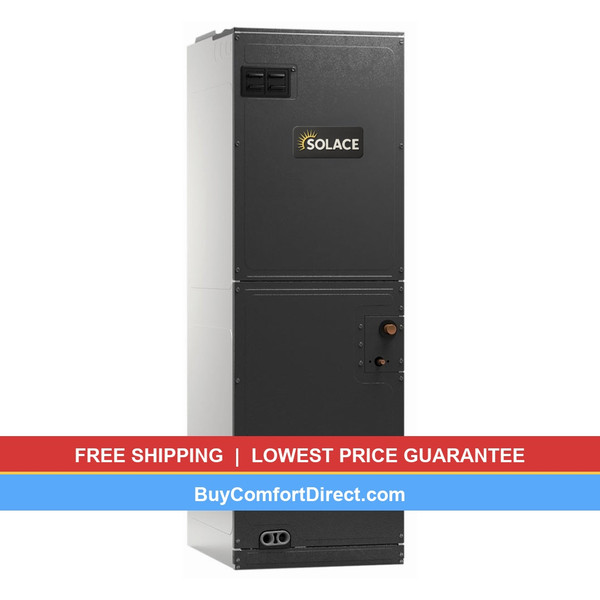

Solace 4 Ton Air Handler – S-AMST48CU13

$1,901.00

Condition: NewFree Shipping10-Year Limited Parts Warranty

-

Complete Your System Optional add-ons — each ships with your order as its own item
Thermostat
Condensate Safety SwitchShuts the system off before a clogged drain overflows
Condensate PumpFor installs without a gravity drain
Air Filter
Electric Heat KitBackup / supplemental electric heat strip for the air handler
Your system total: $1,901.00

Product Details

Model Number
S-AMST48CU13
Brand
Solace
Condition
New
Warranty
10-Year Limited Parts Warranty

Description

Solace 4 Ton R-32 Air Handler – S-AMST48CU13

* {
box-sizing: border-box;
margin: 0;
padding: 0;
}

#product-container {
font-family: ‘Segoe UI’, Tahoma, Geneva, Verdana, sans-serif;
max-width: 1200px;
margin: 0 auto;
padding: 20px;
color: #000000;
background: #fff;
}

#product-container h1 {
font-size: 2.5em;
color: #FFBE00;
margin-bottom: 10px;
padding-bottom: 15px;
border-bottom: 3px solid #FFBE00;
font-weight: 700;
}

#product-container h2 {
font-size: 1.8em;
color: #FFBE00;
margin: 30px 0 15px 0;
font-weight: 600;
}

#product-container h3 {
font-size: 1.4em;
color: #000000;
margin: 25px 0 12px 0;
font-weight: 600;
}

#product-container p {
line-height: 1.8;
margin-bottom: 15px;
font-size: 1.05em;
color: #000000;
}

.intro-section {
background: linear-gradient(135deg, #f8f9fa 0%, #e9ecef 100%);
padding: 25px;
border-radius: 8px;
margin: 25px 0;
border-left: 5px solid #FFBE00;
}

.specs-table {
width: 100%;
border-collapse: collapse;
margin: 20px 0;
box-shadow: 0 2px 8px rgba(0,0,0,0.1);
border-radius: 8px;
overflow: hidden;
}

.specs-table thead {
background: linear-gradient(135deg, #FFBE00 0%, #CC9800 100%);
color: white;
}

.specs-table th {
padding: 15px;
text-align: left;
font-weight: 600;
font-size: 1.1em;
}

.specs-table td {
padding: 12px 15px;
border-bottom: 1px solid #e0e0e0;
}

.specs-table tbody tr {
background: #fff;
transition: all 0.3s ease;
}

.specs-table tbody tr:nth-child(even) {
background: #f8f9fa;
}

.specs-table tbody tr:hover {
background: linear-gradient(90deg, #FFBE00 0%, #CC9800 100%) !important;
color: white;
transform: scale(1.01);
box-shadow: 0 4px 12px rgba(255, 190, 0, 0.3);
}

.specs-table tbody tr:hover td {
color: white;
}

.warranty-section {
background: linear-gradient(135deg, #F8F9FA 0%, #e9ecef 100%);
padding: 50px 30px;
border-radius: 15px;
margin: 50px 0;
}

.warranty-section h2 {
color: #FFBE00;
text-align: center;
margin-bottom: 40px;
font-size: 28px;
}

.warranty-grid {
display: grid;
grid-template-columns: repeat(auto-fit, minmax(200px, 1fr));
gap: 30px;
max-width: 800px;
margin: 0 auto;
}

.warranty-card {
background: white;
padding: 30px;
border-radius: 12px;
text-align: center;
border: 2px solid rgba(255, 190, 0, 0.3);
transition: all 0.3s ease;
}

.warranty-card:hover {
background: rgba(255, 190, 0, 0.05);
border-color: #FFBE00;
transform: translateY(-5px);
}

.warranty-years {
font-size: 48px;
font-weight: 700;
color: #FFBE00;
}

.warranty-label {
color: #333;
font-size: 14px;
font-weight: 600;
}

.cta-section {
background: linear-gradient(135deg, #F8F9FA 0%, #e9ecef 100%);
padding: 60px 30px;
border-radius: 15px;
margin-top: 50px;
box-shadow: 0 10px 40px rgba(0,0,0,0.2);
}

.cta-content {
text-align: center;
margin-bottom: 40px;
}

.cta-section h2 {
color: #FFBE00;
margin: 0 0 15px 0;
font-size: 28px;
font-weight: 700;
}

.cta-section p {
color: #333;
margin: 0;
font-size: 16px;
max-width: 700px;
margin-left: auto;
margin-right: auto;
line-height: 1.6;
}

.compliance-badge {
background: rgba(255, 190, 0, 0.05);
border: 2px solid #FFBE00;
border-radius: 12px;
padding: 25px 30px;
display: flex;
align-items: center;
gap: 20px;
max-width: 700px;
margin: 0 auto;
transition: all 0.3s ease;
}

.compliance-badge:hover {
background: #f8f9fa;
transform: translateY(-2px);
box-shadow: 0 8px 20px rgba(255, 190, 0, 0.3);
}

.badge-icon {
font-size: 32px;
color: #FFBE00;
font-weight: 700;
background: rgba(255, 190, 0, 0.3);
width: 50px;
height: 50px;
border-radius: 50%;
display: flex;
align-items: center;
justify-content: center;
flex-shrink: 0;
}

.badge-content {
text-align: left;
}

.badge-content h3 {
color: #FFBE00;
margin: 0 0 8px 0;
font-size: 18px;
font-weight: 700;
}

.badge-content p {
color: #555;
margin: 0;
font-size: 14px;
line-height: 1.5;
}

@media (max-width: 768px) {
#product-container {
padding: 15px;
}

#product-container h1 {
font-size: 1.8em;
}

#product-container h2 {
font-size: 1.4em;
}

.specs-table {
font-size: 0.9em;
}

.specs-table th,
.specs-table td {
padding: 10px;
}

.compliance-badge {
flex-direction: column;
text-align: center;
padding: 20px;
}

.badge-content {
text-align: center;
}

.cta-section {
padding: 40px 20px;
}
}

Solace 4 Ton R-32 Air Handler – S-AMST48CU13

The Solace S-AMST48CU13 is a high-efficiency multi-position air handler designed for use with R-32 refrigerant systems. Featuring a PSC blower motor, this unit delivers reliable airflow for consistent comfort. The multi-position cabinet design allows for flexible installation in upflow, downflow, or horizontal configurations. This air handler requires a compatible outdoor condensing unit (sold separately) to complete your heating and cooling system.

Technical Specifications

Specification Value
Manufacturer Solace
Model Number S-AMST48CU13
Product Type Air Handler
Tonnage 4.0 Tons
Airflow 1600 CFM
Blower Motor Type Multi-Speed ECM
Refrigerant Type R-32
Voltage/Phase/Frequency 208/230V/1-Ph/60Hz
Min Circuit Ampacity 7.1 A
Max Overcurrent Protection 15 A
Cabinet Configuration Multi-Position
Dimensions (HxWxD) 58.0″ x 191.1875″ x 21.125″
Shipping Weight 153 lbs

Comprehensive Warranty Protection

10
Year Parts Warranty

Professional Installation Required

Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.

✓

DOE Compliant Nationwide

This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones

Where the S-AMST48CU13 fits. The S-AMST48CU13 is Solace’s multi-position air handler in the 4-ton class — it installs upflow, downflow, or horizontal, and is the standard indoor match for Solace 4-ton R-32 air conditioners and heat pumps (S-GLXS, S-GLZS, S-GXV, and S-GZV). It is the straightforward like-for-like replacement for an aging 4-ton air handler; add a matching heat kit if you need electric backup heat. Confirm the pairing with the free sizing tool, and see all 4-ton Solace air handlers →

Additional information

Weight 350.00 lbs
Dimensions 48.00 × 48.00 × 60.00 in
System Type

Air Handler

Brand

Solace

Tonnage

4 Ton

Refrigerant

R-32

Airflow Direction

Multi-Position

Blower Motor

Multi-Speed ECM

Voltage

208/230V
