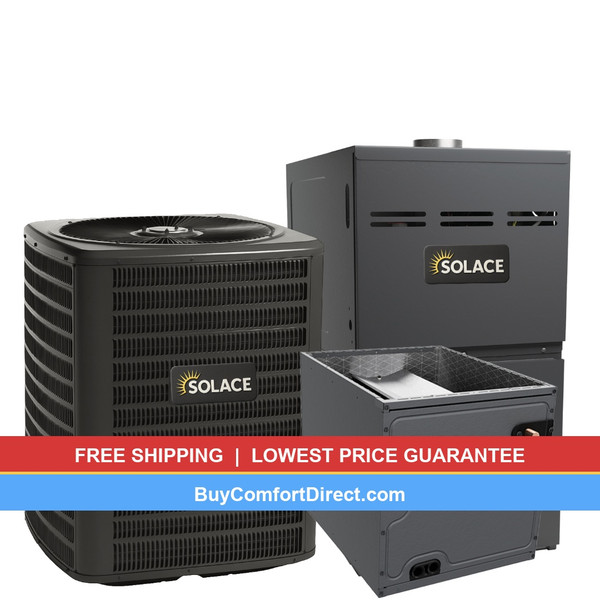

Solace 5 Ton 14.3 SEER2 100,000 BTU 80% AFUE AC and Furnace System – Upflow – S-GLXS4BA6010
$6,012.00
-
Product Details
- Model Numbers
- S-GLXS4BA6010
S-GR9S801005CNA
S-CAPTA6030C3 - Brand
- Solace
- Condition
- New
- Warranty
- 10-Year Limited Parts Warranty
Description

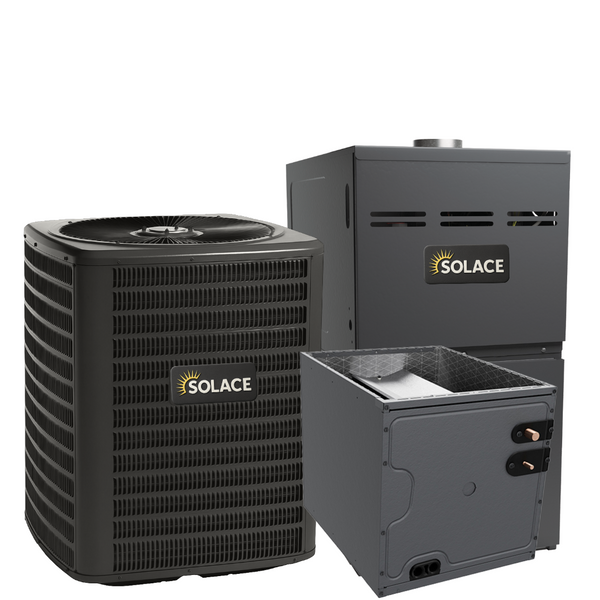

SOLACE 5 Ton 14.3 SEER2 R-32 80% AFUE Gas Furnace Air Conditioning System (Upflow Coil)
Experience reliable home comfort with this complete Solace 5-ton HVAC system (Upflow Coil). This matched system combines a high-efficiency 14.3 SEER2 air conditioner, a 80% AFUE single-stage gas furnace with multi-speed ECM blower, and a precision-engineered upflow evaporator coil with factory-installed TXV. Designed for dependable year-round heating and cooling performance, this system delivers excellent energy efficiency, quiet operation, and proven reliability with environmentally-friendly R-32 refrigerant.
Technical Specifications
Air Conditioner — S-GLXS4BA6010 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GLXS4BA6010 |
| Product Type | Air Conditioner Condenser |
| Tonnage | 5 Ton |
| Cooling Capacity | 60,000 BTU/h |
| SEER2 Rating | 14.3 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 94 oz |
| Compressor Type | Scroll |
| Voltage/Phase/Frequency | 208/230-1V-1-60Hz |
| Min Circuit Ampacity | 32.4 A |
| Max Overcurrent Protection | 50 A |
| Sound Level | 76 dBA |
| Liquid Line Size | ⅜” |
| Suction Line Size | 1⅛” |
| Dimensions (W×D×H) | 35″ × 35″ × 39.5″ |
| Shipping Weight | 275 lbs |
Gas Furnace — S-GR9S801005CNA Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GR9S801005CNA |
| Product Type | Gas Furnace |
| BTU Input | 100,000 BTU/h |
| BTU Output | 80,000 BTU/h |
| AFUE | 80% |
| Heating Stages | Single Stage |
| Blower Motor Type | Multi-Speed ECM |
| Configuration | Multi-Position |
| Voltage/Phase/Frequency | 115/1/60V-1-60Hz |
| Min Circuit Ampacity | 11.3 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (W×D×H) | 21.0″ × 19.5″ × 33.375″ |
| Shipping Weight | 132 lbs |
Evaporator Coil — S-CAPTA6030C3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-CAPTA6030C3 |
| Product Type | Cased Upflow Evaporator Coil |
| Tonnage | 5 Ton |
| Metering Device | Factory-Installed TXV |
| Configuration | Cased |
| Liquid Line Connection | ⅜” |
| Suction Line Connection | 1⅛” |
| Dimensions (W×D×H) | 21.0″ × 21.0″ × 30.0″ |
| Shipping Weight | 70 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
Additional information
| Weight | 350.00 lbs |
|---|---|
| Dimensions | 48.00 × 48.00 × 60.00 in |
| System Type | AC + Gas Furnace System |
| Brand | Solace |
| Tonnage | 5 Ton |
| SEER2 | 14.3 |
| AFUE | 80% |
| Heating BTU | 100,000 BTU |
| Refrigerant | R-32 |
| Airflow Direction | Upflow |
| Blower Motor | Multi-Speed ECM |
| Voltage | 115V |
