Solace 5 Ton 16.2 SEER2 80,000 BTU 80% AFUE AC and Furnace System – Horizontal – S-GXV6SS6010
$7,280.00
-
Product Details
- Model Numbers
- S-GXV6SS6010
S-CHPEA6030C3
S-GRVT800804CN
S-GTST-CW-WH-A - Brand
- Solace
- Condition
- New
- Warranty
- 10-Year Limited Parts Warranty
Description
The Solace 5 Ton 16.2 SEER2 80 — Solace 5 Ton 16.2 SEER2 80,000 BTU 80% AFUE AC and Furnace System – Horizontal – S-GXV6SS6010 — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.
About the Solace 5 Ton 16.2 SEER2 80

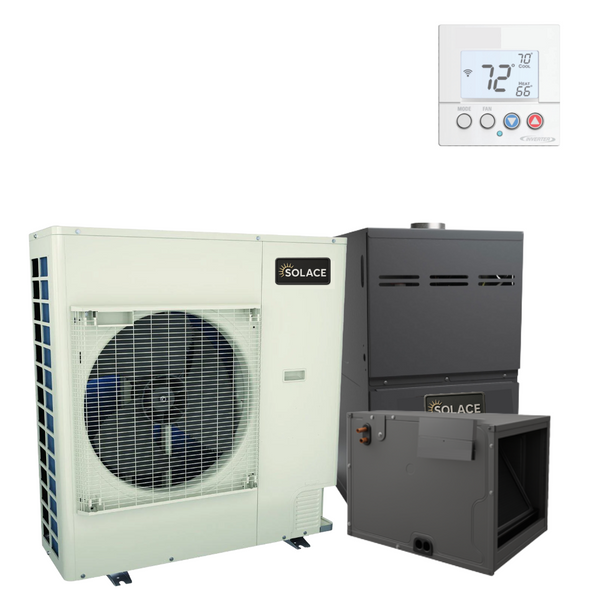

SOLACE 5 Ton 16.2 SEER2 R-32 80% AFUE 80,000 BTU Gas Furnace Air Conditioning System (Horizontal Coil)
This comprehensive Solace HVAC system combines the S-GXV6SS6010 air conditioner, S-GRVT800804CN 80% AFUE gas furnace, and S-CHPEA6030C3 evaporator coil for complete year-round comfort. Rated at 16.2 SEER2, this 5 ton system provides efficient cooling in summer and reliable gas heating in winter. Premium features include two-stage heating. Uses eco-friendly R-32 refrigerant and delivers outstanding performance for residential applications.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GXV6SS6010 |
| Product Type | Air Conditioner |
| Tonnage | 5 Ton |
| Cooling Capacity (BTU/h) | 53500 BTU/h |
| SEER2 Rating | 16.2 |
| Refrigerant Type | R-32 |
| Compressor Type | Swing |
| Voltage/Phase/Frequency | 208/230V/1-Ph/60Hz |
| Min Circuit Ampacity | 37.5 A |
| Max Overcurrent Protection | 40.0 A |
| Factory Charge (oz) | 118.0 oz |
| Liquid Line Size | 3/8″ |
| Suction Line Size | 1-1/8″ |
| Sound Level (dBA) | 72 dBA |
| Dimensions (H×W×D) | 39.0″ x 37.0″ x 12.625″ |
| Shipping Weight | 196.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GRVT800804CN |
| Product Type | 80% AFUE Gas Furnace |
| AFUE Rating | 80% |
| Input BTU/h | 80,000 BTU |
| Output BTU/h | 64,000 BTU |
| Heating Stages | 2 |
| Blower Motor Type | 0.5 HP |
| Airflow (CFM) | 1400 CFM |
| Fuel Type | Natural Gas / LP |
| Gas Connection Size | 1/2″ FPT |
| Voltage/Phase/Frequency | 115/1/60V/1-Ph/60Hz |
| Min Circuit Ampacity | 7.6 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (H×W×D) | 33.375″ x 21.0″ x 28.0″ |
| Shipping Weight | 118.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-CHPEA6030C3 |
| Product Type | Horizontal Evaporator Coil |
| Tonnage | 5 Ton |
| Nominal Cooling (BTU/h) | 60000 BTU/h |
| Refrigerant Type | R-32 |
| Metering Device | TXV |
| Coil Configuration | Cased Horizontal |
| Liquid Line Size | 3/8″ |
| Suction Line Size | 1-1/8″ |
| Drain Connection Size | 3/4″ PVC |
| Dimensions (W×D×H) | 30.0″ x 21.0″ x 24.5″ |
| Shipping Weight | 78.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GTST-CW-WH-A |
| Product Type | Thermostat Controller |
| Description | WiFi Smart Thermostat |
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
Solace 5 Ton 16.2 SEER2 80: fitment and resources
Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the ENERGY STAR furnace guide. Browse the rest of our 5 Ton or the Solace catalog, and see what customers say on our reviews page.
Ordering and delivery
In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.
Solace 5 Ton 16.2 SEER2 80 FAQ
Does the Solace 5 Ton 16.2 SEER2 80 ship free?
Yes on orders over $99 — most orders that include it qualify.
How do I know it fits my system?
Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.
Additional information
| Weight | 350.00 lbs |
|---|---|
| Dimensions | 48.00 × 48.00 × 60.00 in |
| System Type | AC + Gas Furnace System |
| Brand | Solace |
| Tonnage | 5 Ton |
| SEER2 | 16.2 |
| AFUE | 80% |
| Heating BTU | 80,000 BTU |
| Refrigerant | R-32 |
| Airflow Direction | Horizontal |
| Voltage | 115V |
