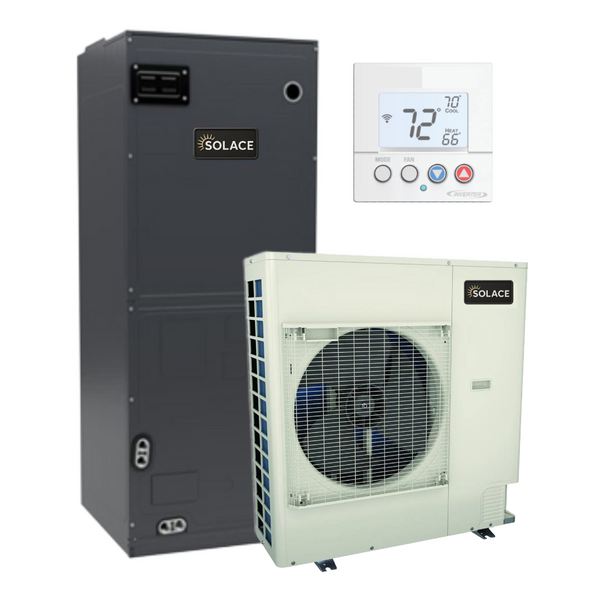

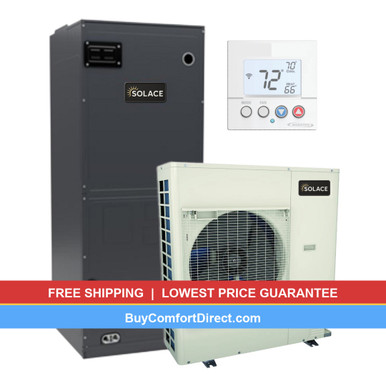

SOLACE 5 Ton 16.2 SEER2 R-32 Air Conditioning System with Multi-Positional Air Handler
$6,240.00
$4,992.00
(You save $1,248.00)
brand: Solace
- SKU:
- S-GXV6SS6010,S-AHVE60DP1300,S-GTST-CW-WH-A
- Shipping:
- Calculated at Checkout
SOLACE 5 Ton 16.2 SEER2 R-32 Air Conditioning System with Multi-Positional Air Handler
This complete Solace air conditioning system pairs the S-GXV6SS6010 outdoor condenser with the S-AHVE60DP1300 air handler for efficient cooling performance. Rated at 16.2 SEER2, this 5 ton system uses eco-friendly R-32 refrigerant and delivers reliable comfort for residential applications. Premium features include variable-speed ECM airflow.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GXV6SS6010 |
| Product Type | AC Condenser |
| Tonnage | 5 Ton |
| Cooling Capacity (BTU/h) | 53500 BTU/h |
| SEER2 Rating | 16.2 |
| Refrigerant Type | R-32 |
| Compressor Type | Swing |
| Voltage/Phase/Frequency | 208/230V/1-Ph/60Hz |
| Min Circuit Ampacity | 37.5 A |
| Max Overcurrent Protection | 40.0 A |
| Factory Charge (oz) | 118.0 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 1-1/8" |
| Sound Level (dBA) | 72 dBA |
| Dimensions (H×W×D) | 39.0" x 37.0" x 12.625" |
| Shipping Weight | 196.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-AHVE60DP1300 |
| Product Type | Multi-Position Air Handler |
| Tonnage | 5 Ton |
| Airflow (CFM) | 2000 CFM |
| Blower Motor Type | Variable Speed ECM |
| Refrigerant Type | R-32 |
| Metering Device | TXV |
| Drain Connection | 3/4" PVC |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Voltage/Phase/Frequency | 208/230V/1-Ph/60Hz |
| Min Circuit Ampacity | 6.8 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (H×W×D) | 58.0" x 24.5" x 26.125" |
| Shipping Weight | 167.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GTST-CW-WH-A |
| Product Type | Thermostat Controller |
| Description | WiFi Smart Thermostat |
| Compatible Equipment | |
| Shipping Weight |
Warranty Coverage
10
Year Parts Warranty
10
Year Compressor Warranty
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
10-Year Limited Parts Warranty
