Solace 5 Ton 16.2 SEER2 R-32 Air Conditioner - S-GXV6SS6010
brand: Solace
- SKU:
- S-GXV6SS6010
- Shipping:
- Calculated at Checkout
Solace 5 Ton 16.2 SEER2 R-32 Air Conditioner - S-GXV6SS6010

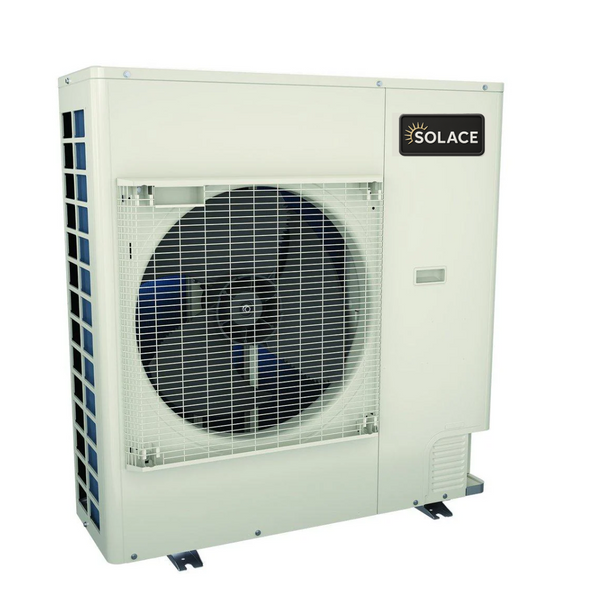

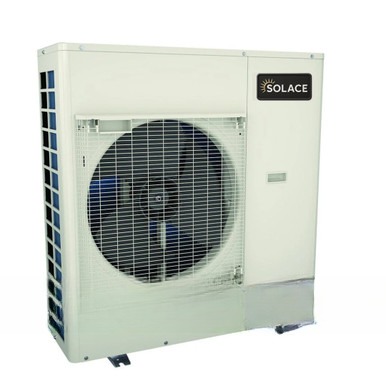

The Solace S-GXV6SS6010 is a high-efficiency 5 ton air conditioning outdoor unit rated at 16.2 SEER2. This outdoor unit uses eco-friendly R-32 refrigerant and features a reliable swing compressor for quiet, efficient cooling. Designed for residential applications, it provides consistent comfort while meeting modern energy efficiency standards. This outdoor unit requires a compatible indoor evaporator coil or air handler (sold separately) to complete your cooling system.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GXV6SS6010 |
| Product Type | Air Conditioner Condenser |
| Tonnage | 5 Ton |
| Cooling Capacity (BTU/h) | 53500 BTU/h |
| SEER2 Rating | 16.2 |
| Refrigerant Type | R-32 |
| Compressor Type | Swing |
| Voltage/Phase/Frequency | 208/230V/1-Ph/60Hz |
| Min Circuit Ampacity | 37.5 A |
| Max Overcurrent Protection | 40.0 A |
| Factory Charge (oz) | 118.0 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 1-1/8" |
| Sound Level (dBA) | 72 dBA |
| Dimensions (H×W×D) | 39.0" x 37.0" x 12.625" |
| Shipping Weight | 196.0 lbs |
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
