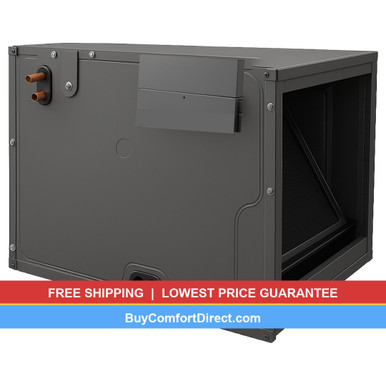

Solace 5 Ton R-32 Horizontal Evaporator Coil - S-CHPEA6030C3
brand: Solace
- SKU:
- S-CHPEA6030C3
- Shipping:
- Calculated at Checkout
Solace 5 Ton R-32 Horizontal Evaporator Coil - S-CHPEA6030C3
The Solace S-CHPEA6030C3 is a 5 ton cased horizontal evaporator coil designed for R-32 refrigerant systems. This indoor coil component is engineered for efficient heat transfer and reliable performance in attic or crawlspace installations. The cased design provides protection and easy service access. Requires a compatible outdoor condensing unit to complete your cooling system.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-CHPEA6030C3 |
| Product Type | Horizontal Evaporator Coil |
| Tonnage | 5 Ton |
| Nominal Cooling (BTU/h) | 60000 BTU/h |
| Refrigerant Type | R-32 |
| Metering Device | TXV |
| Coil Configuration | Cased Horizontal |
| Liquid Line Size | 3/8" |
| Suction Line Size | 1-1/8" |
| Drain Connection Size | 3/4" PVC |
| Dimensions (W×D×H) | 30.0" x 21.0" x 24.5" |
| Shipping Weight | 78.0 lbs |
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
