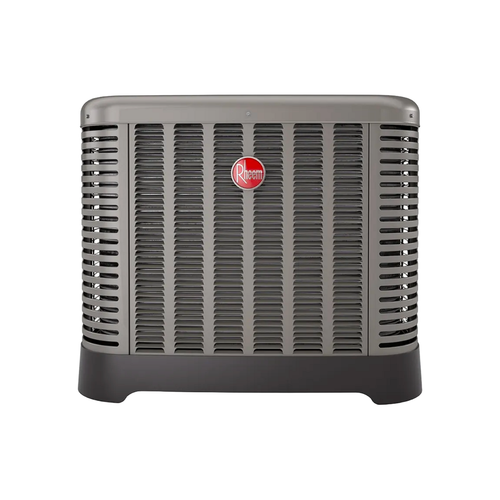

RA14AY60AJ1NA - Endeavor® Line Classic® Series Air Conditioner
Key Features:
• Energy Efficiency: Achieves a 13.8 SEER2 rating, ensuring cost-effective and environmentally friendly operation.
• Durable Construction: Built with high-quality materials to withstand various weather conditions, ensuring years of dependable service.
• Advanced Performance: Designed to deliver optimal cooling for your home while maintaining quiet operation.
• Compact Design: Space-saving dimensions make it easy to install in a variety of residential settings.
Specifications:
• Model: RA14AY60AJ1NA
• Refrigerant Type: R-454B
• Nominal Capacity: 60,000 Btu (5 Tons)
• Cooling Efficiency: 13.8 SEER2 / 11.7 EER2
• Sound Level: 76 dB
• ENERGY STAR® Certified: Yes
• EcoNet® Enabled: No
• Compressor Type: Single-Stage Scroll
• Condenser Coil Type: 7mm
• Weight: 266 lbs
PlusOne® Features:
• PlusOne® Expanded Valve Space: Provides a minimum working area of 27 square inches for easier installation and service.
• PlusOne® Triple Service Access: Industry-leading 15-inch wide corner service access with two fastener removable corners and easily removable individual louver panels.
• PlusOne® Refrigerant Detection System™: Integrated, patented design providing system protection and homeowner peace of mind with low GWP refrigerant monitoring.
Dimensions:
• Depth: 35 3/4 inches
• Width: 35 3/4 inches
• Height: 45 inches
Limited Warranty:
- Conditional Parts: 10 Years (registration required)

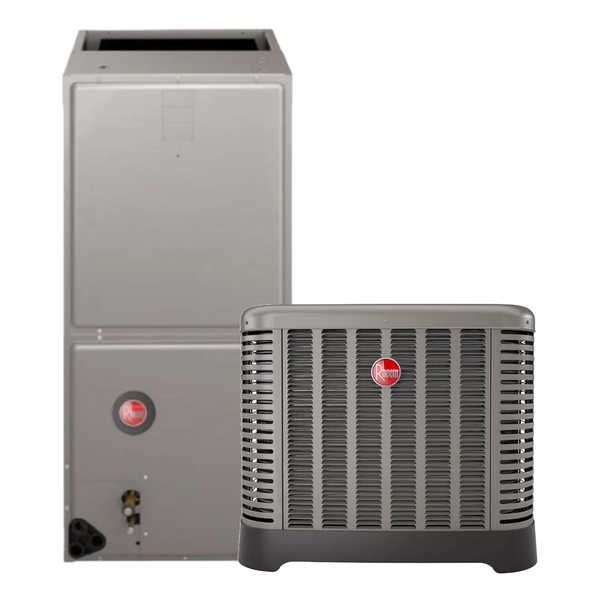

RH2TY6024STANNJ - Endeavor® Line Air Handler
Key Features:
• Quiet Operation: Cabinet construction with 1.0 inch of foil-faced insulation ensures quieter sound characteristics.
• Aluminum Indoor Coil Design: Constructed with aluminum fins bonded to internally grooved aluminum tubing for enhanced corrosion resistance.
• Versatile 4-Way Convertible Compact Design: Allows for upflow, downflow, horizontal left, and horizontal right applications, even in compact spaces.
• Rugged Steel, Compact Cabinet Construction: Designed for added strength and versatility.
• Less than 2% Cabinet Air Leakage at 1-inch H₂O: Tested in accordance with ASHRAE Standard 193 to ensure minimal air leakage.
• Designing for Sustainability with Low GWP: Utilizes R-454B refrigerant with a global warming potential (GWP) limit of 700, reducing environmental impact.
• PlusOne® Refrigerant Detection System™: Integrated, patented design providing system protection and homeowner peace of mind with low GWP refrigerant monitoring.
Specifications:
• Model: RH2TY6024STANNJ
• Voltage: 208 to 240 V
• Number of Phases: 1
• Frequency: 60 Hz
• Stages of Airflow: Two-Stage
• Motor Type: Constant Torque
• Refrigerant: R-454B
• Nominal Capacity: 60,000 Btu (5 Tons)
• Metering: TXV
• Controls: Non-communicating
• Blower Motor: 1 hp
• Blower Motor RPM: 300 to 1,100
• Motor Amps: 8.4 A
• Minimum Circuit Ampacity: 11 A
• Maximum Overcurrent Protection: 15 A
• Weight: 150 lbs
• Shipping Weight: 170 lbs
• Dimensions (D x W x H): 21 11/16 in x 24 1/2 in x 58 1/2 in
• Supply Duct: 22 in
• Refrigerant Connections - Liquid: 3/8 in
• Refrigerant Connections - Vapor: 7/8 in
Limited Warranty:
- Conditional Parts: 10 Years (registration required)
Specifications:
- Model: WRX10021
- Heating Capacity: 10 kW
- Voltage: 208/240V
- Phase: Single
- Number of Heating Elements: 2
- Amperage at 208V: 47.6A
- Amperage at 240V: 41.7A
- Breaker Size: 50A
- Compatibility: Designed for use with select Rheem air handlers
- Construction: Heavy-duty components for enhanced reliability
- Installation: Factory-approved kit for secure and efficient integration
Limited Warranty:
- Conditional Parts Warranty: 10 Years (registration required)
