Goodman 1.5 Ton 15.2 SEER2 40,000 BTU 80% AFUE Dual Fuel System – Upflow – GLZS5BA1810
$4,908.00
-
Product Details
- Model Numbers
- GLZS5BA1810
GR9S800403ANA
CAPTA2422A3 - Brand
- Goodman
- Condition
- New
- Warranty
- Goodman's standard 10 year parts warranty when registered online through the manufacturer.
Description

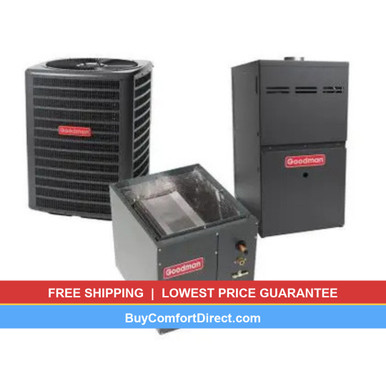

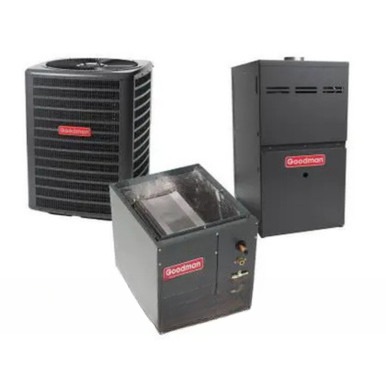

GOODMAN 1.5 Ton 15.2 SEER2 R-32 80% AFUE Dual Fuel System (Upflow Coil)
Experience year-round comfort with this complete Goodman 1.5-ton dual fuel heat pump system with upflow coil. This matched system combines a high-efficiency 15.2 SEER2 heat pump for efficient cooling, a 80% AFUE single-stage gas furnace for reliable heating, and a precision-engineered upflow evaporator coil with factory-installed TXV. Designed for dependable performance with reliable R-32 refrigerant.
Technical Specifications
Air Conditioner — GLZS5BA1810 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GLZS5BA1810 |
| Series | Classic |
| Product Type | Heat Pump Condenser |
| Tonnage | 1.5 Ton |
| Cooling Capacity | 18,000 BTU/h |
| SEER2 Rating | 15.2 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 88 oz |
| Compressor Type | Scroll |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 11.4 A |
| Max Overcurrent Protection | 15 A |
| Sound Level | 70.0 dBA |
| Liquid Line Size | ⅜” |
| Suction Line Size | ¾” |
| Dimensions (W×D×H) | 29″ × 29″ × 39.5″ |
| Shipping Weight | 186 lbs |

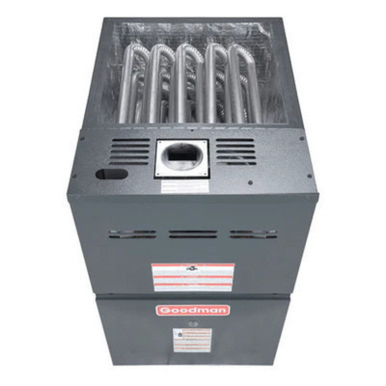

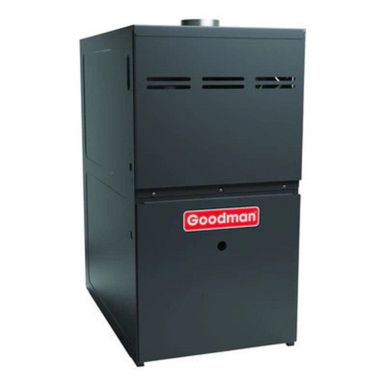

Gas Furnace — GR9S800403ANA Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GR9S800403ANA |
| Product Type | Gas Furnace |
| BTU Input | 40,300 BTU/h |
| BTU Output | 32,240 BTU/h |
| AFUE | 80% |
| Heating Stages | Single Stage |
| Blower Motor Type | PSC |
| Configuration | Multi-Position |
| Voltage/Phase/Frequency | 120V-1-60Hz |
| Min Circuit Ampacity | 15.0 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (W×D×H) | 14.5″ × 29.0″ × 33.0″ |
| Shipping Weight | 120 lbs |

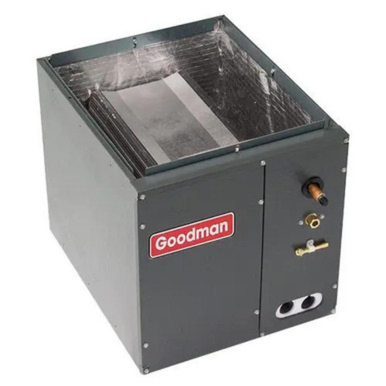

Evaporator Coil — CAPTA2422A3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | CAPTA2422A3 |
| Product Type | Cased Upflow / Vertical Evaporator Coil |
| Tonnage | 2 Ton |
| Refrigerant Type | R-32 Compatible |
| Metering Device | Factory-Installed TXV |
| Configuration | Cased |
| Liquid Line Connection | ⅜” |
| Suction Line Connection | ¾” |
| Dimensions (W×D×H) | 16.5″ × 19.5″ × 30.0″ |
| Shipping Weight | 40 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This complete R-32 15.2 SEER2 dual fuel heat pump system meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
Additional information
| Weight | 445.00 lbs |
|---|---|
| Dimensions | 28.00 × 21.00 × 33.50 in |
| System Type | Dual Fuel System |
| Brand | Goodman |
| Tonnage | 1.5 Ton |
| SEER2 | 15.2 |
| AFUE | 80% |
| Heating BTU | 40,000 BTU |
| Refrigerant | R-32 |
| Airflow Direction | Upflow |
| Blower Motor | PSC |
| Voltage | 115V |
