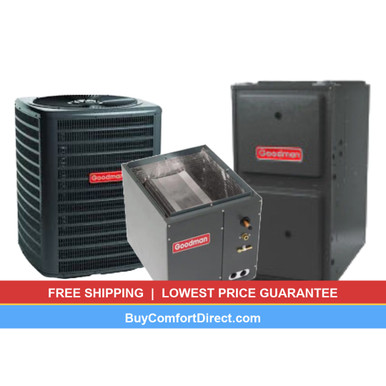

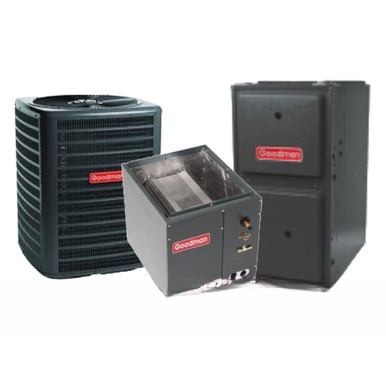

Goodman 2.5 Ton 14.3 SEER2 Air Conditioning System – Upflow – GLXS4BA3010

Goodman 2.5 Ton 14.3 SEER2 Air Conditioning System – Upflow – GLXS4BA3010

Name: Goodman 2.5 Ton Upflow 92% Gas System - GLXS4BA3010 | Buy Comfort Direct
SKU: GLXS4BA3010, GR9S920603BNA, CAPTA3626B3
Price: 4799.00 USD
Availability: InStock

$4,799.00

Condition: NewFree ShippingGoodman's standard 10 year parts warranty when registered online through the manufacturer.

Complete Your System Optional add-ons — each ships with your order as its own item

Line SetInsulated copper line set sized for this system (3/4" suction / 3/8" liquid)

Line Set CoverHides and protects the line set on an exterior wall

Thermostat

Condenser PadLevel, UV-stable plastic pad for the outdoor unit

Surge ProtectorProtects the compressor and control board from power surges

Disconnect & WhipOutdoor electrical disconnect, with an optional 6' weather-tight whip

Condensate Safety SwitchShuts the system off before a clogged drain overflows

Condensate PumpFor installs without a gravity drain

Air Filter

Propane (LP) Conversion KitOnly if the furnace will run on propane instead of natural gas

Your system total: $4,799.00

Product Details

Model Numbers: GLXS4BA3010
GR9S920603BNA
CAPTA3626B3
Brand: Goodman
Condition: New
Warranty: Goodman's standard 10 year parts warranty when registered online through the manufacturer.

Shop more:2.5 Ton Air Conditioners & AC Systems 2.5-Ton AC + Gas Furnace Systems Furnace + AC Systems Split Gas Systems

Description

GOODMAN 2.5 Ton 14.3 SEER2 R-32 92% AFUE Gas Furnace Air Conditioning System (Upflow Coil)

Experience reliable home comfort with this complete Goodman 2.5-ton R-32 HVAC system (Upflow Coil). This matched system combines a high-efficiency 14.3 SEER2 air conditioner, a 92% AFUE single-stage gas furnace with multi-speed ECM blower, and a precision-engineered upflow/downflow evaporator coil with factory-installed TXV. Designed for dependable year-round heating and cooling performance, this system delivers excellent energy efficiency, quiet operation, and proven reliability with environmentally-friendly R-32 refrigerant.

Complete System Components (Upflow Coil)

Air Conditioner

Goodman GLXS4BA3010A
2.5 Ton (30,000 BTU/h)
Single-Stage Rotary Compressor
R-32 Refrigerant
14.3 SEER2

Gas Furnace

Goodman GR9S920603BNA
60,000 BTU/h Input
55,260 BTU/h Output
92% AFUE
Single-Stage Multi-Speed ECM

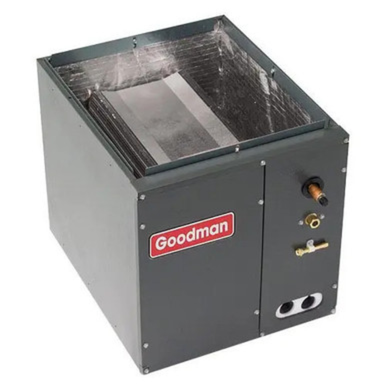

Evaporator Coil

Goodman CAPTA3626B3
3 Ton Cased Upflow/Downflow Coil
All-Aluminum Construction
Factory-Installed TXV
R-32 Compatible

Technical Specifications

Air Conditioner – GLXS4BA3010A Specifications

Specification	Value
Manufacturer	Goodman
Model	GLXS4BA3010A
Tonnage	2.5 Ton
Cooling Capacity (Nominal)	30,000 BTU/h
SEER2 Rating	14.3
EER2 Rating	11.2
Refrigerant	R-32
Compressor Type	Single-Stage Rotary
Compressor RLA	11.2 A
Compressor LRA	52.5 A
Fan Motor Type	PSC (1/6 HP)
Voltage	208–230V / 1Ph / 60Hz
Min Circuit Ampacity	15.0 A
Max Overcurrent Protection	25 A
Sound Level	71.0 dBA
Dimensions (H×W×D)	32″ × 29″ × 29″
Weight	155 lbs
Refrigerant Charge	63 oz (Factory charged for 15′ line)
Liquid Line Size	⅜”
Suction Line Size	¾”

Gas Furnace – GR9S920603BNA Specifications

Specification	Value
Manufacturer	Goodman
Model	GR9S920603BNA
BTU Input	60,000 BTU/h
BTU Output	55,260 BTU/h
AFUE	92%
Stages	Single-Stage
Blower Motor	Multi-Speed ECM (9-Speed)
Blower HP	1/2 HP
Blower Size	10″ × 8″
Number of Burners	3
Voltage	115 VAC, 60 Hz, Single-Phase
Min Circuit Ampacity	7.6 A
Max Overcurrent Device	15 A
Temperature Rise Range	35–65°F
Vent Diameter	2″
Filter Size	16″ × 25″ × 1″
Cabinet Width	17½”
Dimensions (W×D×H)	17½” × 28⅞” × 40½”
Weight	114 lbs

Evaporator Coil – CAPTA3626B3 Specifications

Specification	Value
Manufacturer	Goodman
Model	CAPTA3626B3
Tonnage	2–3 Ton
Type	Cased Upflow/Downflow Indoor Coil
Expansion Device	Factory-Installed TXV (Thermal Expansion Valve)
Refrigerant	R-32 Compatible
Construction	All-Aluminum A-Coil
Dimensions (W×D×H)	17½” × 21″ × 26″
Weight	48 lbs
Liquid Connection	⅜”
Suction Connection	⅞”
Cabinet Style	Cased with Drain Pan

Comprehensive Warranty Protection

Year Parts Warranty

Year Compressor Warranty

⧫

Lifetime Heat Exchanger Warranty

Professional Installation Required

Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.

✓

DOE Compliant Nationwide

This R-32 air conditioner meets Department of Energy minimum efficiency requirements for all U.S. climate zones

Additional information

Weight	445.00 lbs
Dimensions	28.00 × 21.00 × 33.50 in
System Type	AC + Gas Furnace System
Brand	Goodman
Tonnage	2.5 Ton
SEER2	14.3
AFUE	92%
Refrigerant	R-32
Stages	Single Stage
Airflow Direction	Upflow
Cabinet Width	17"
Blower Motor	Multi-Speed ECM
Voltage	115V
