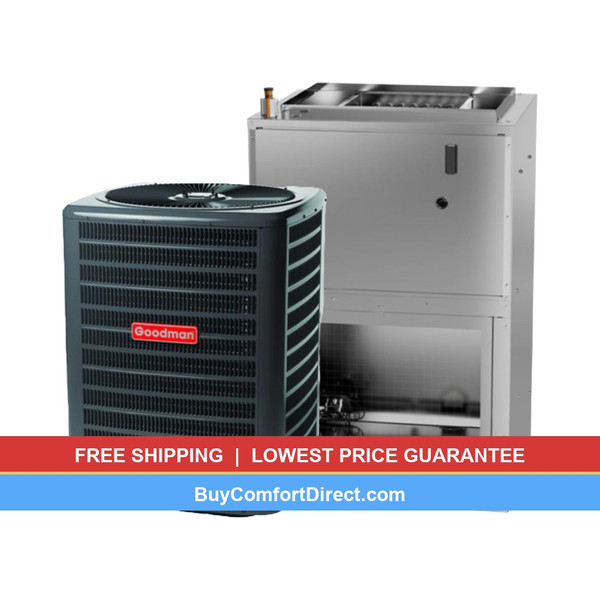

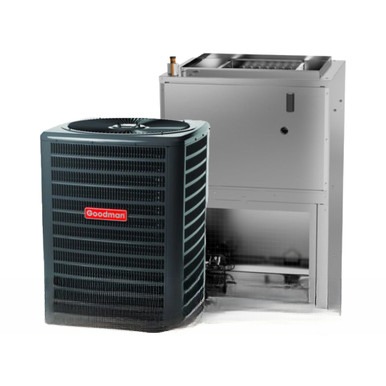

Goodman 2 Ton 13.4 SEER2 AC System with Air Handler – Wall-Mount – GLXS3BN2410
$2,820.00
-
Product Details
- Model Numbers
- GLXS3BN2410
AWST24SU1305 - Brand
- Goodman
- Condition
- New
- Warranty
- Goodman's standard 10 year parts warranty when registered online through the manufacturer.
Description
The Goodman 2 Ton 13.4 SEER2 AC System with Air Handler — Goodman 2 Ton 13.4 SEER2 AC System with Air Handler – Wall-Mount – GLXS3BN2410 — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.
About the Goodman 2 Ton 13.4 SEER2 AC System with Air Handler

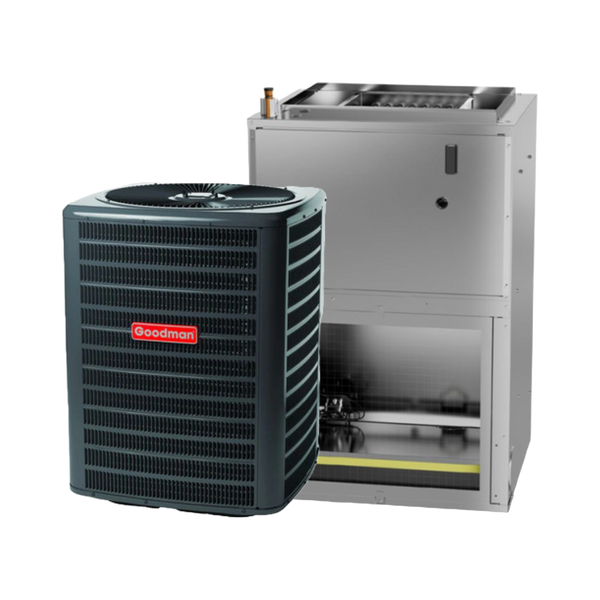

GOODMAN 2 Ton 13.4 SEER2 R-32 Air Conditioning System with Wall-Hung Air Handler
Experience superior comfort cooling with this complete Goodman 2-ton air conditioning system featuring a space-saving wall-hung air handler with integrated electric heat. This matched system combines a high-efficiency 13.4 SEER2 air conditioner with a wall-mounted air handler that includes a 5kW electric heat kit for reliable winter heating. Perfect for homes where floor space is limited, this system delivers efficient cooling and heating with environmentally-friendly R-32 refrigerant while maximizing your usable living space.
Technical Specifications

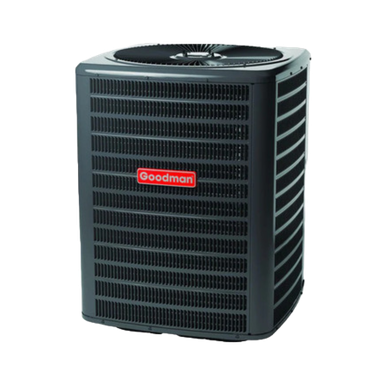

Air Conditioner — GLXS3BN2410 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GLXS3BN2410 |
| Series | Classic |
| Product Type | Air Conditioner Condenser |
| Tonnage | 2 Ton |
| Cooling Capacity | 24,000 BTU/h |
| SEER2 Rating | 13.4 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 53 oz |
| Compressor Type | Rotary |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 10.9 A |
| Max Overcurrent Protection | 15 A |
| Sound Level | 74.0 dBA |
| Liquid Line Size | ⅜” |
| Suction Line Size | ¾” |
| Dimensions (W×D×H) | 26″ × 26″ × 27.5″ |
| Shipping Weight | 114 lbs |

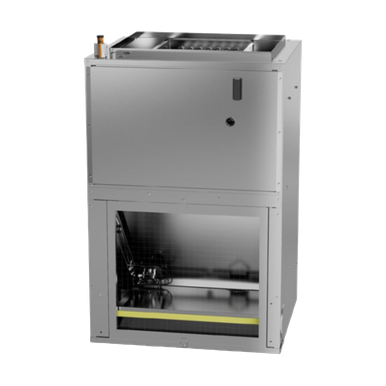

Wall-Hung Air Handler — AWST24SU1305A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | AWST24SU1305A |
| Product Type | Wall-Mounted Air Handler |
| Tonnage | 2 Ton |
| Refrigerant Type | R-32 Compatible |
| Blower Motor Type | ECM |
| Metering Device | TXV (Thermal Expansion Valve) |
| Mounting Type | Wall-Mounted |
| Integrated Electric Heat Kit | 5 kW (17,060 BTU/h) |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 15.0 A |
| Max Overcurrent Protection | 20.0 A |
| Dimensions (W×D×H) | 38″ × 11″ × 30″ |
| Shipping Weight | 45 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant for Northern Regions
This complete R-32 13.4 SEER2 air conditioning system meets Department of Energy efficiency requirements for residential HVAC installations in Northern U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
Goodman 2 Ton 13.4 SEER2 AC System with Air Handler: fitment and resources
Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the AHRI Directory of Certified Product Performance. Browse the rest of our 2 Ton Air Conditioners & AC Systems or the Goodman catalog, and see what customers say on our reviews page.
Ordering and delivery
In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.
Goodman 2 Ton 13.4 SEER2 AC System with Air Handler FAQ
Does the Goodman 2 Ton 13.4 SEER2 AC System with Air Handler ship free?
Yes on orders over $99 — most orders that include it qualify.
How do I know it fits my system?
Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.
Additional information
| Weight | 245.00 lbs |
|---|---|
| Dimensions | 29.00 × 29.00 × 36.00 in |
| System Type | AC + Air Handler System |
| Brand | Goodman |
| Tonnage | 2 Ton |
| SEER2 | 13.4 |
| Refrigerant | R-32 |
| Blower Motor | Multi-Speed ECM |
| Voltage | 208/230V |
Only logged in customers who have purchased this product may leave a review.
Related products
-
Goodman 100,000 BTU 80% AFUE Gas Furnace – GR9S801005CNA
NewFree Shipping$1,575.00-
Add to cart -
Sale!
Goodman 3.5 Ton Heat Pump – GLZS4BA4210
NewFree ShippingOriginal price was: $3,447.00.$3,298.00Current price is: $3,298.00.-
Add to cart -

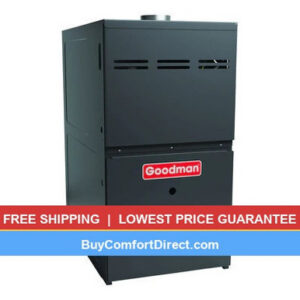

Goodman 80,000 BTU 80% AFUE Gas Furnace – GR9S800804CNA
