Goodman 2 Ton 17.2 SEER2 40,000 BTU 5% AFUE AC and Furnace System – Upflow – GLXT7CA2410
$6,990.00
-
Product Details
- Model Numbers
- GLXT7CA2410
CAPTA2422B3
GRVT960403BN - Brand
- Goodman
- Condition
- New
- Warranty
- Goodman's standard 10 year parts warranty when registered online through the manufacturer.
Description

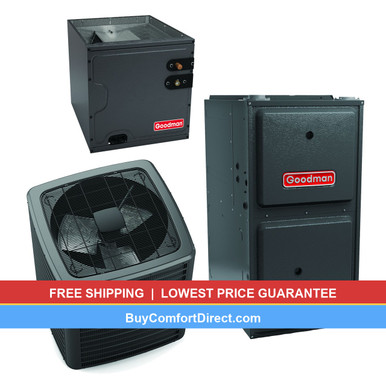

GOODMAN 2 Ton 17.2 SEER2 R-32 97.5% AFUE Gas Furnace Air Conditioning System (Upflow Coil)
Experience reliable home comfort with this complete Goodman 2-ton HVAC system (Upflow Coil). This matched system combines a high-efficiency 17.2 SEER2 air conditioner, a 97.5% AFUE single-stage gas furnace with multi-speed ECM blower, and a precision-engineered upflow evaporator coil with factory-installed TXV. Designed for dependable year-round heating and cooling performance, this system delivers excellent energy efficiency, quiet operation, and proven reliability with environmentally-friendly R-32 refrigerant.
Technical Specifications

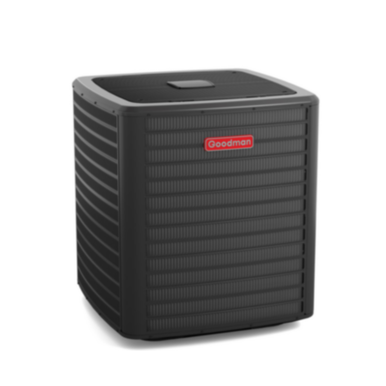

Air Conditioner — GLXT7CA2410 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GLXT7CA2410 |
| Product Type | Air Conditioner Condenser |
| Tonnage | 2 Ton |
| Cooling Capacity | 24,000 BTU/h |
| SEER2 Rating | 17.2 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 104 oz |
| Compressor Type | Two-Stage Scroll |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 15.0 A |
| Max Overcurrent Protection | 20 A |
| Sound Level | 69 dBA |
| Liquid Line Size | ⅜” |
| Suction Line Size | ¾” |
| Dimensions (W×D×H) | 36″ × 13″ × 27.4″ |
| Shipping Weight | 219 lbs |

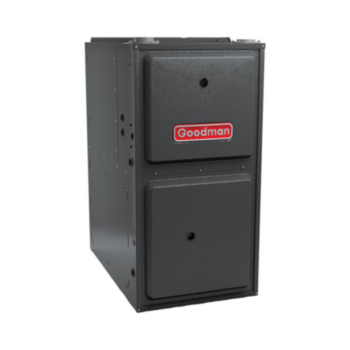

Gas Furnace — GRVT960403BN Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GRVT960403BN |
| Product Type | Gas Furnace |
| BTU Input | 40,000 BTU/h |
| BTU Output | 39,000 BTU/h |
| AFUE | 97.5% |
| Heating Stages | Two Stage |
| Blower Motor Type | Variable Speed ECM |
| Configuration | Multi-Position |
| Voltage/Phase/Frequency | 115V-1-60Hz |
| Min Circuit Ampacity | 7.6 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (W×D×H) | 17.5″ × 29.0″ × 44.0″ |
| Shipping Weight | 114 lbs |
Evaporator Coil — CAPTA2422B3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | CAPTA2422B3 |
| Product Type | Cased Upflow Evaporator Coil |
| Tonnage | 2 Ton |
| Metering Device | Factory-Installed TXV |
| Configuration | Cased |
| Liquid Line Connection | ⅜” |
| Suction Line Connection | ¾” |
| Dimensions (W×D×H) | 17.5″ × 21.0″ × 22.0″ |
| Shipping Weight | 40 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This 17.2 SEER2 equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
Additional information
| Weight | 200.00 lbs |
|---|---|
| Dimensions | 36.00 × 40.00 × 40.00 in |
| System Type | AC + Gas Furnace System |
| Brand | Goodman |
| Tonnage | 2 Ton |
| SEER2 | 17.2 |
| AFUE | 97.5% |
| Heating BTU | 40,000 BTU |
| Refrigerant | R-32 |
| Stages | Two Stage |
| Airflow Direction | Upflow |
| Blower Motor | Variable Speed ECM |
| Voltage | 115V |
