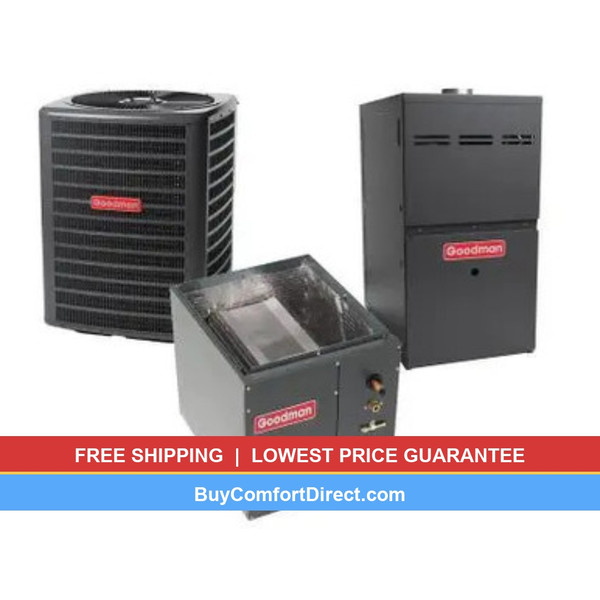

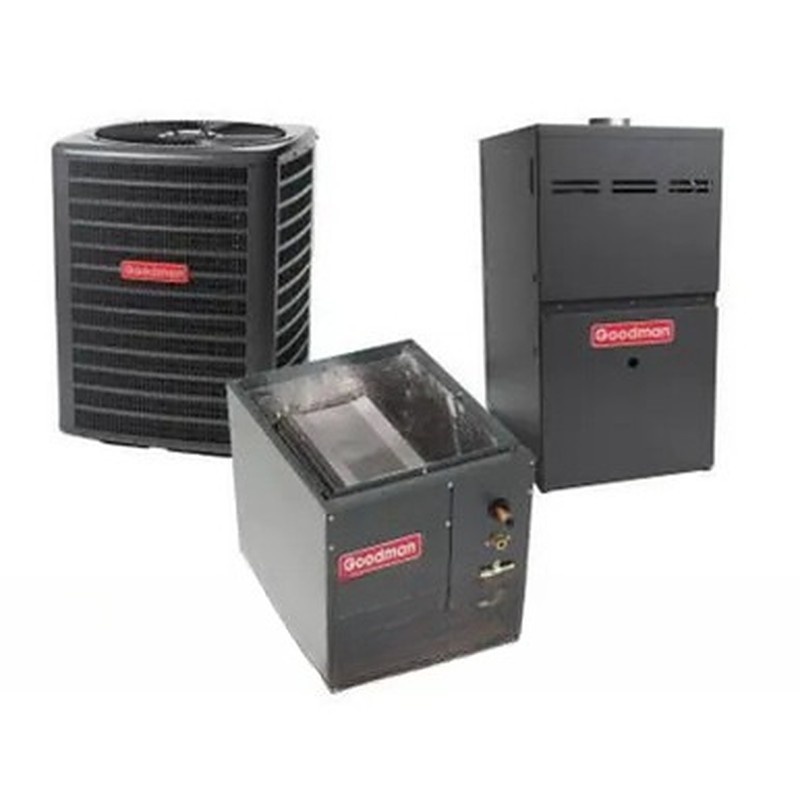

Goodman 3 Ton 13.4 SEER2 Air Conditioning System – Upflow – GLXS3BN3610
$4,359.00
-
Product Details
- Model Numbers
- GLXS3BN3610
GR9S800604BNA
CAPTA3626B3 - Brand
- Goodman
- Condition
- New
- Warranty
- Goodman's standard 10 year parts warranty when registered online through the manufacturer.
Description
The Goodman 3 Ton 13.4 SEER2 Air Conditioning System — Goodman 3 Ton 13.4 SEER2 Air Conditioning System – Upflow – GLXS3BN3610 — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.
About the Goodman 3 Ton 13.4 SEER2 Air Conditioning System
GOODMAN 3 Ton 13.4 SEER2 R-32 80% AFUE AC System (Upflow Coil)
Experience year-round comfort with this complete Goodman 3-ton air conditioning system with upflow coil. This matched system combines a high-efficiency 13.4 SEER2 air conditioner for efficient cooling, a 80% AFUE single-stage gas furnace for reliable heating, and a precision-engineered upflow evaporator coil with factory-installed TXV. Designed for dependable performance with environmentally-friendly R-32 refrigerant.
Technical Specifications
Air Conditioner — GLXS3BN3610 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GLXS3BN3610 |
| Series | Classic |
| Product Type | Air Conditioner Condenser |
| Tonnage | 3 Ton |
| Cooling Capacity | 36,000 BTU/h |
| SEER2 Rating | 13.4 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 60 oz |
| Compressor Type | Scroll |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 17.5 A |
| Max Overcurrent Protection | 30 A |
| Sound Level | 69.0 dBA |
| Liquid Line Size | ⅜” |
| Suction Line Size | ⅞” |
| Dimensions (W×D×H) | 26″ × 26″ × 32.5″ |
| Shipping Weight | 136 lbs |

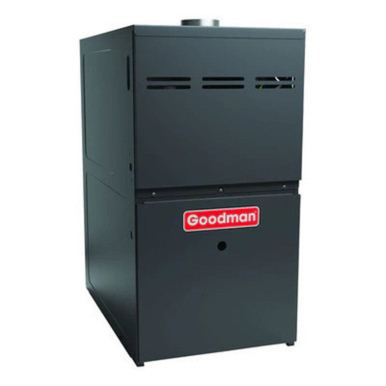

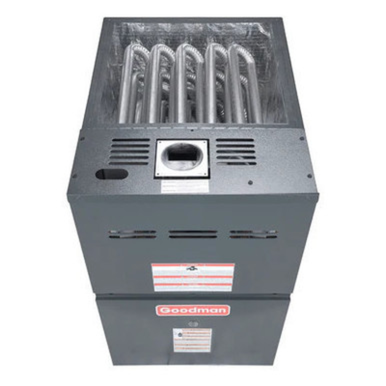

Gas Furnace — GR9S800604BNA Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GR9S800604BNA |
| Product Type | Gas Furnace |
| BTU Input | 60,400 BTU/h |
| BTU Output | 48,320 BTU/h |
| AFUE | 80% |
| Heating Stages | Single Stage |
| Blower Motor Type | PSC |
| Configuration | Multi-Position |
| Voltage/Phase/Frequency | 120V-1-60Hz |
| Min Circuit Ampacity | 15.0 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (W×D×H) | 17.5″ × 29.0″ × 33.0″ |
| Shipping Weight | 140 lbs |

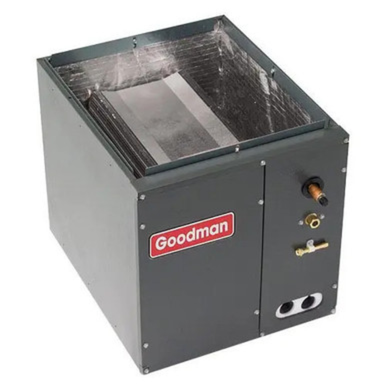

Evaporator Coil — CAPTA3626B3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | CAPTA3626B3 |
| Product Type | Cased Upflow / Vertical Evaporator Coil |
| Tonnage | 3 Ton |
| Refrigerant Type | R-32 Compatible |
| Metering Device | Factory-Installed TXV |
| Configuration | Cased |
| Liquid Line Connection | ⅜” |
| Suction Line Connection | ¾” |
| Dimensions (W×D×H) | 17.5″ × 20.5″ × 33.0″ |
| Shipping Weight | 45 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant for Northern Regions
This complete R-32 13.4 SEER2 air conditioning system meets Department of Energy efficiency requirements for residential HVAC installations in Northern U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
Goodman 3 Ton 13.4 SEER2 Air Conditioning System: fitment and resources
Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the ENERGY STAR furnace guide. Browse the rest of our 3 Ton Air Conditioners & AC Systems or the Goodman catalog, and see what customers say on our reviews page.
Ordering and delivery
In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.
Goodman 3 Ton 13.4 SEER2 Air Conditioning System FAQ
Does the Goodman 3 Ton 13.4 SEER2 Air Conditioning System ship free?
Yes on orders over $99 — most orders that include it qualify.
How do I know it fits my system?
Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.
Additional information
| Weight | 445.00 lbs |
|---|---|
| Dimensions | 28.00 × 21.00 × 33.50 in |
| System Type | AC + Gas Furnace System |
| Brand | Goodman |
| Tonnage | 3 Ton |
| SEER2 | 13.4 |
| AFUE | 80% |
| Refrigerant | R-32 |
| Airflow Direction | Upflow |
| Blower Motor | PSC |
| Voltage | 115V |
