GOODMAN 3 Ton 15.2 SEER2 R-32 80% AFUE AC System (Upflow Coil)
brand: Goodman
- SKU:
- GLXS5BA3610, GR9S800604BNA, CAPTA3626B3
- Condition:
- New
- Shipping:
- Free Shipping

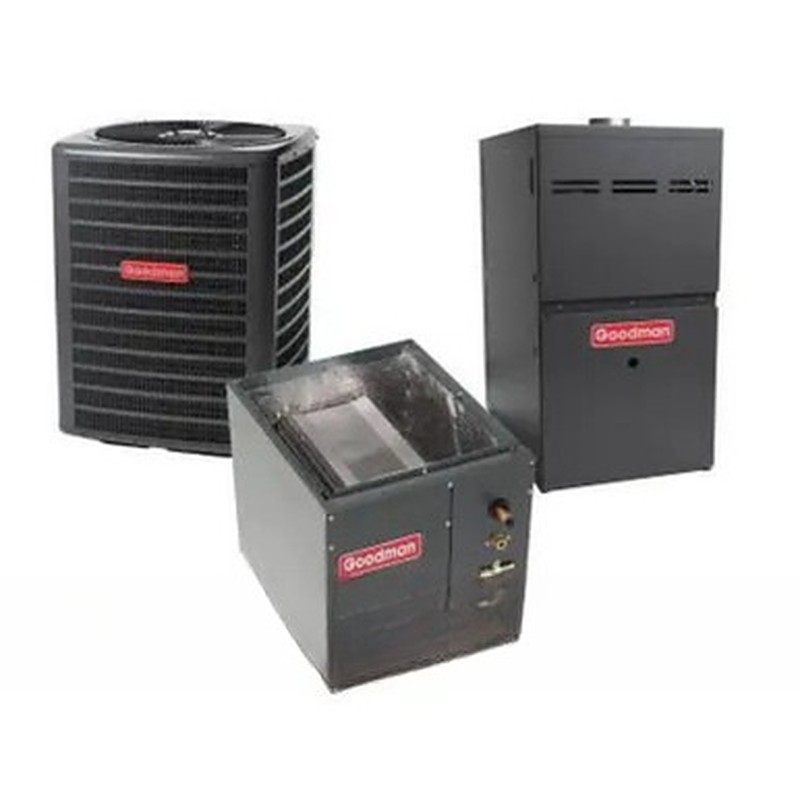

GOODMAN 3 Ton 15.2 SEER2 R-32 80% AFUE AC System (Upflow Coil)
Experience year-round comfort with this complete Goodman 3-ton air conditioning system with upflow coil. This matched system combines a high-efficiency 15.2 SEER2 air conditioner for efficient cooling, a 80% AFUE single-stage gas furnace for reliable heating, and a precision-engineered upflow evaporator coil with factory-installed TXV. Designed for dependable performance with reliable R-32 refrigerant.
Technical Specifications
Air Conditioner — GLXS5BA3610 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GLXS5BA3610 |
| Series | Classic |
| Product Type | Air Conditioner Condenser |
| Tonnage | 3 Ton |
| Cooling Capacity | 36,000 BTU/h |
| SEER2 Rating | 15.2 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 88 oz |
| Compressor Type | Scroll |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 17.8 A |
| Max Overcurrent Protection | 30 A |
| Sound Level | 71.0 dBA |
| Liquid Line Size | ⅜" |
| Suction Line Size | ⅞" |
| Dimensions (W×D×H) | 35" × 35" × 39.5" |
| Shipping Weight | 191 lbs |

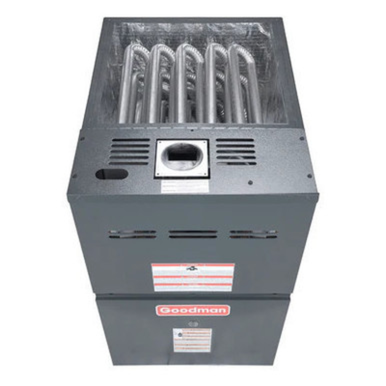

Gas Furnace — GR9S800604BNA Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GR9S800604BNA |
| Product Type | Gas Furnace |
| BTU Input | 60,400 BTU/h |
| BTU Output | 48,320 BTU/h |
| AFUE | 80% |
| Heating Stages | 1 |
| Blower Motor Type | PSC |
| Configuration | Multi-Position |
| Voltage/Phase/Frequency | 120V-1-60Hz |
| Min Circuit Ampacity | 15.0 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (W×D×H) | 17.5" × 29.0" × 33.0" |
| Shipping Weight | 140 lbs |
Evaporator Coil — CAPTA3626B3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | CAPTA3626B3 |
| Product Type | Cased Upflow / Vertical Evaporator Coil |
| Tonnage | 3 Ton |
| Refrigerant Type | R-32 Compatible |
| Metering Device | Factory-Installed TXV |
| Configuration | Cased |
| Liquid Line Connection | ⅜" |
| Suction Line Connection | ¾" |
| Dimensions (W×D×H) | 17.5" × 20.5" × 33.0" |
| Shipping Weight | 45 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This complete R-32 15.2 SEER2 air conditioning system meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
