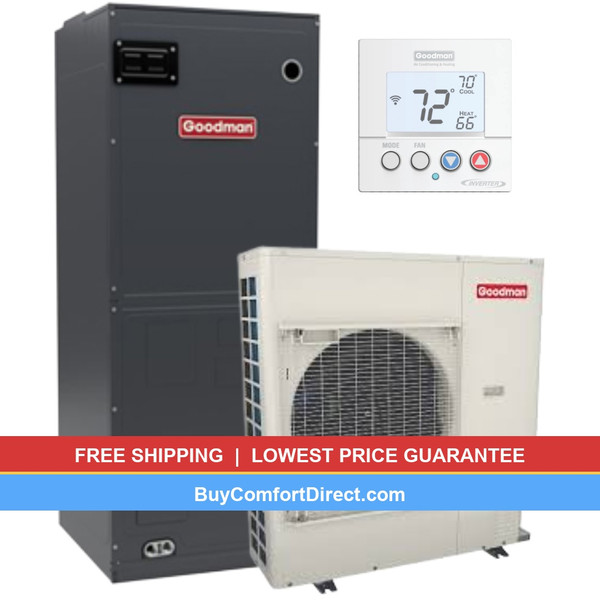

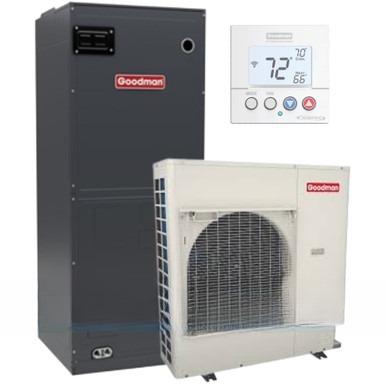

GOODMAN 3 Ton 16.2 SEER2 R-32 Air Conditioning System with Multi-Positional Air Handler
brand: Goodman
- SKU:
- GXV6SS3610, AHVE36CP1300, HKTSN10X1, GTST-CW-WH-A
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN 3 Ton 16.2 SEER2 R-32 Air Conditioning System with Multi-Positional Air Handler
Experience premium cooling comfort with this Goodman 3-ton 16.2 SEER2 air conditioning system. This complete matched system combines a high-efficiency air conditioner outdoor unit with a versatile multi-positional air handler. Designed for reliable cooling performance, this system delivers exceptional energy efficiency, quiet operation, and dependable comfort with R-32 refrigerant.
Technical Specifications
Air Conditioner — GXV6SS3610 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Tonnage | 3 Ton |
| Refrigerant | R-32 |
| SKU/Model No | GXV6SS3610 |
| Product Type | Split System Air Conditioner |
| Cooling Capacity | 34,200 BTU/h |
| SEER2 Rating | Up to 16.2 |
| Compressor Type | Swing |
| Voltage | 208/230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 22.4 A |
| Max Overcurrent Protection | 25 A |
| Liquid Line Size | ⅜" |
| Suction Line Size | ⅞" |
| Refrigerant Charge | 83 oz |
| Dimensions (H×W×D) | 27.375" × 36" × 13" |
| Weight | 148 lbs |
| Sound Level | 68 dBA |
Air Handler — AHVE36CP1300 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Tonnage | 3 Ton |
| SKU/Model No | AHVE36CP1300 |
| Product Type | Multi-Positional Air Handler |
| Motor Type | Variable Speed ECM |
| Nominal Cooling Capacity | 34,200 BTU/h |
| Airflow | N/A CFM |
| Voltage | 208/230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 6.5 A |
| Max Overcurrent Device | 15.0 A |
| Liquid Line Connection | ⅜" |
| Suction Line Connection | ⅞" |
| Metering Device | TXV (Internal) |
| Cabinet Configuration | Multi-Positional (B Cabinet) |
| Dimensions (H×W×D) | 19.875" × 21.0" × 18.625" |
| Weight | 140 lbs |
Comprehensive Warranty Protection
Note: Warranty terms and conditions apply. Unit must be registered within 60 days of installation for full coverage.
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This 16.2 SEER2 equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
