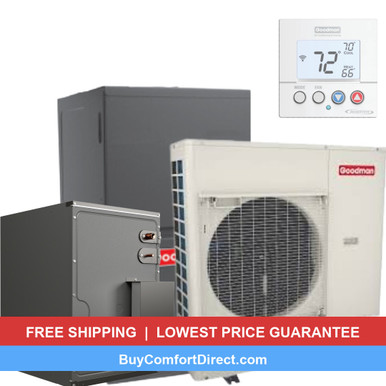

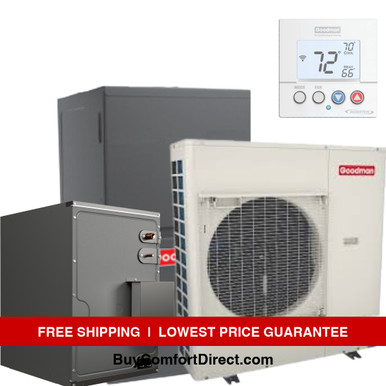

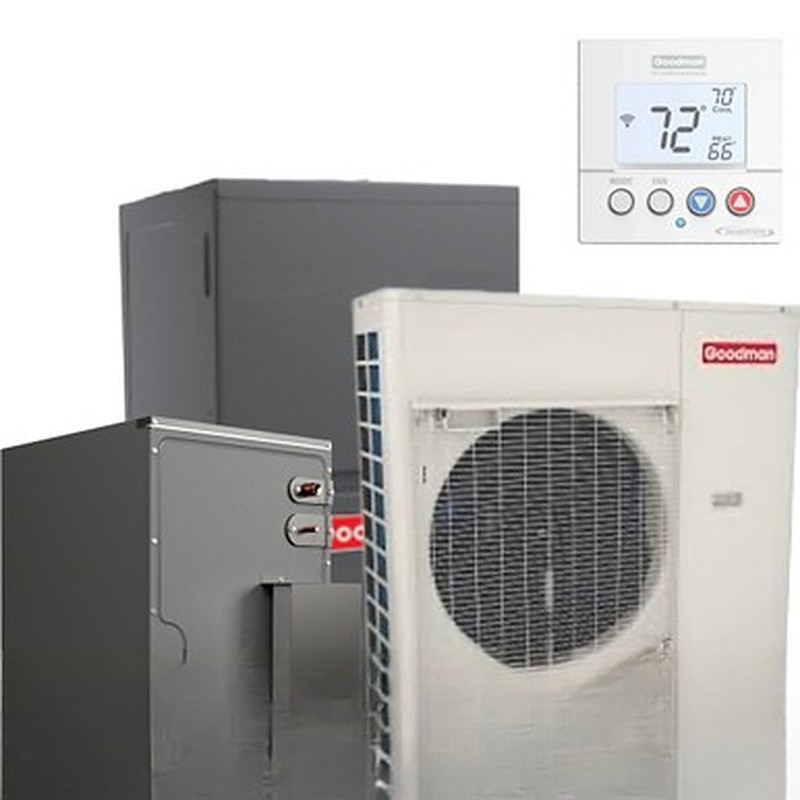

Goodman 5 Ton 16.2 SEER2 100,000 BTU 96% AFUE AC and Furnace System – Horizontal – GXV6SS6010
$8,279.00
-
Product Details
- Model Numbers
- GXV6SS6010
CHPEA6030C3
GRVT961005CN
GTST-CW-WH-A - Brand
- Goodman
- Condition
- New
- Warranty
- Goodman's standard 10 year parts warranty when registered online through the manufacturer.
Description
The Goodman 5 Ton 16.2 SEER2 100 — Goodman 5 Ton 16.2 SEER2 100,000 BTU 96% AFUE AC and Furnace System – Horizontal – GXV6SS6010 — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.
About the Goodman 5 Ton 16.2 SEER2 100
GOODMAN 5 Ton 16.2 SEER2 R-32 96% AFUE Gas Furnace Air Conditioning System (Horizontal Coil)
Experience reliable home comfort with this complete Goodman 5-ton HVAC system (Horizontal Coil). This matched system combines a high-efficiency 16.2 SEER2 air conditioner, a 96% AFUE single-stage gas furnace with multi-speed ECM blower, and a precision-engineered horizontal evaporator coil with factory-installed TXV. Designed for dependable year-round heating and cooling performance, this system delivers excellent energy efficiency, quiet operation, and proven reliability with environmentally-friendly R-32 refrigerant.
Technical Specifications
Air Conditioner — GXV6SS6010 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GXV6SS6010 |
| Product Type | Air Conditioner Condenser |
| Tonnage | 5 Ton |
| Cooling Capacity | 53,500 BTU/h |
| SEER2 Rating | 16.2 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 118 oz |
| Compressor Type | Swing |
| Voltage/Phase/Frequency | 208/230V-1-60Hz |
| Min Circuit Ampacity | 37.5 A |
| Max Overcurrent Protection | 40 A |
| Sound Level | 72 dBA |
| Liquid Line Size | ⅜” |
| Suction Line Size | 1⅛” |
| Dimensions (W×D×H) | 37″ × 12″ × 39.0″ |
| Shipping Weight | 196 lbs |
Gas Furnace — GRVT961005CN Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | GRVT961005CN |
| Product Type | Gas Furnace |
| BTU Input | 100,000 BTU/h |
| BTU Output | 96,100 BTU/h |
| AFUE | 96% |
| Heating Stages | Two Stage |
| Blower Motor Type | Multi-Speed ECM |
| Configuration | Multi-Position |
| Voltage/Phase/Frequency | 115/1/60V-1-60Hz |
| Min Circuit Ampacity | 13.9 A |
| Max Overcurrent Protection | 20.0 A |
| Dimensions (W×D×H) | 34.5″ × 19.5″ × 28.875″ |
| Shipping Weight | 143 lbs |
Evaporator Coil — CHPEA6030C3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model Number | CHPEA6030C3 |
| Product Type | Cased Horizontal Evaporator Coil |
| Tonnage | 5 Ton |
| Metering Device | Factory-Installed EEV |
| Configuration | Cased |
| Liquid Line Connection | ⅜” |
| Suction Line Connection | 1⅛” |
| Dimensions (W×D×H) | 30.0″ × 21.0″ × 24.5″ |
| Shipping Weight | 70 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This 16.2 SEER2 equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
Goodman 5 Ton 16.2 SEER2 100: fitment and resources
Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the ENERGY STAR furnace guide. Browse the rest of our 5 Ton Air Conditioners & AC Systems or the Goodman catalog, and see what customers say on our reviews page.
Ordering and delivery
In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.
Goodman 5 Ton 16.2 SEER2 100 FAQ
Does the Goodman 5 Ton 16.2 SEER2 100 ship free?
Yes on orders over $99 — most orders that include it qualify.
How do I know it fits my system?
Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.
Additional information
| Weight | 400.00 lbs |
|---|---|
| Dimensions | 36.00 × 40.00 × 40.00 in |
| System Type | AC + Gas Furnace System |
| Brand | Goodman |
| Tonnage | 5 Ton |
| SEER2 | 16.2 |
| AFUE | 96% |
| Heating BTU | 100,000 BTU |
| Refrigerant | R-32 |
| Airflow Direction | Horizontal |
| Blower Motor | Multi-Speed ECM |
| Voltage | 115V |
