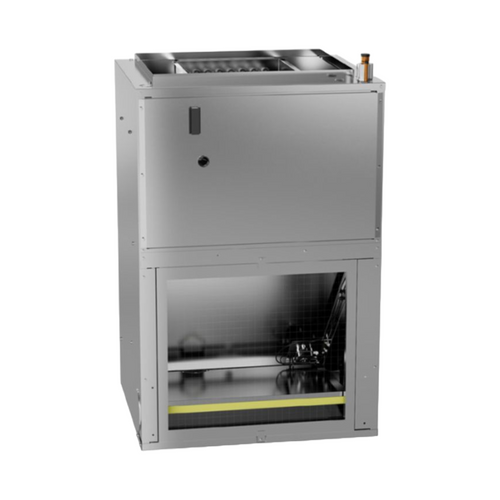

GOODMAN AWST18SU1308A – 1.5 Ton Wall-Mount Air Handler 8 kW Heat Kit R-32
brand: Goodman
- SKU:
- AWST18SU1308A
- Condition:
- New
- Shipping:
- Free Shipping
GOODMAN AWST18SU1308A – 1.5 Ton Wall-Mount Air Handler 8 kW Heat Kit R-32
Compact and efficient 1.5-ton wall-mounted air handler featuring an integrated 8 kW electric heat kit. Built for quiet, reliable operation with R-32 refrigerant compatibility and service-friendly design for long-term performance.
Space-Saving Wall Mount
Compact design ideal for apartments, condos, or tight mechanical spaces—mounts easily to wall brackets.
Quiet Multi-Speed Operation
Direct-drive ECM blower motor delivers consistent airflow and quiet comfort across speed settings.
Durable All-Aluminum Coil
Corrosion-resistant coil and drain pan help ensure dependable performance and long system life.
R-32 Compatible
Equipped with factory R-32 sensor and TXV expansion valve for efficient refrigerant control and serviceability.
Technical Specifications
Factory-rated specifications for the GOODMAN AWST18SU1308A.
| Specification | Value |
|---|---|
| Nominal Cooling Capacity | 18,000 BTU/h (1.5 Ton) |
| Electric Heat | 8 kW |
| Voltage / Phase / Hertz | 208–230V / 1Ph / 60Hz |
| Minimum Circuit Ampacity (MCA) | 39.6 A (208V) / 44.7 A (230V) |
| Maximum Overcurrent Protection | 40 A (208V) / 45 A (230V) |
| Blower Motor Type | Direct-Drive Multi-Speed ECM |
| Blower Motor HP | 1/3 HP |
| Blower FLA | 2.6 A |
| Expansion Device | TXV (Thermal Expansion Valve) |
| Refrigerant | R-32 |
| Liquid Line Size (O.D.) | 3/8" |
| Suction Line Size (O.D.) | 5/8" |
| Drain Connection (FPT) | 3/4" |
| Airflow (CFM @ 0.3" ESP) | 576 |
| Cabinet Dimensions (HxWxD) | 36" × 20¼" × 16⅛" |
| Filter Size | 14" × 18" × 1" |
| Cabinet Air Leakage | < 2.0% @ 1.0 in. H₂O; < 1.4% @ 0.5 in. H₂O |
| Net / Shipping Weight | 84 lbs / 84 lbs |
Performance & Reliability
The GOODMAN AWST18SU1308A offers quiet, efficient performance in a compact design that saves space while delivering comfort. The 8 kW heat kit provides reliable supplemental heating, and R-32 refrigerant compatibility supports a lower environmental impact.
Key Benefits:
- Compact Design: Wall-mount configuration maximizes space efficiency.
- Quiet Operation: ECM motor maintains low sound levels during operation.
- Long-Term Durability: All-aluminum coil and corrosion-resistant materials extend system life.
- Easy Access: Integrated disconnect, TXV, and filter rack simplify maintenance.
- Certified Quality: AHRI Certified; ETL Listed; UL 60335-2-40 compliant.
Professional Installation Recommended
This complete HVAC system is best installed by certified technicians to ensure optimal performance, proper commissioning, and warranty compliance.
Important Regional Efficiency Notice
This 13.4 SEER system may not be eligible for installation in all U.S. states and regions due to Department of Energy (DOE) minimum efficiency standards. Installation of 13.4 SEER equipment is generally limited to Northern U.S. states; it does not meet the minimum requirements in Southeast and Southwest regions.
Please ensure this equipment complies with all applicable state, regional, and local regulations for your installation location, including California and Alaska specific codes and standards. Non-compliance may result in denied permits, failed inspections, or warranty issues.
