HAIER 2 Ton 18.0 SEER2 R-454B 80% AFUE 45K BTU Dual Fuel System (Horizontal Coil)
brand: Haier
- SKU:
- 1U24T3PS1HE,NF80U045S3AR,NCHC24AT5S
- Condition:
- New
- Shipping:
- Free Shipping
HAIER 2 Ton 18.0 SEER2 R-454B 80% AFUE 45K BTU Dual Fuel System (Horizontal Coil)

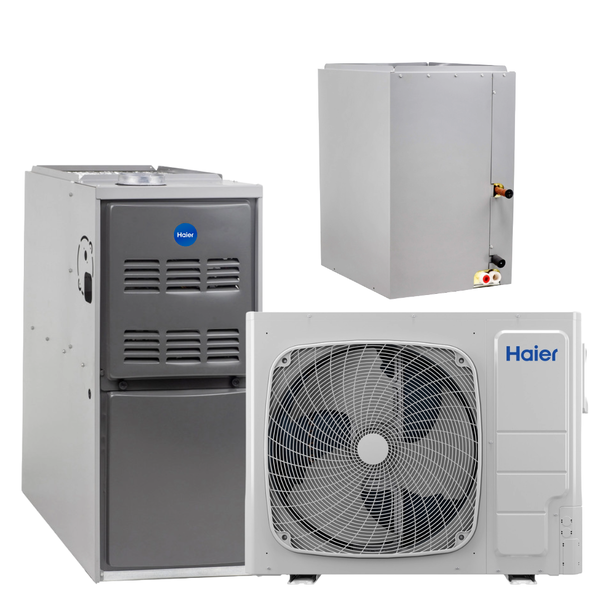

This complete furnace and coil system pairs a 2-ton outdoor condenser unit with an 80% AFUE gas furnace and matching evaporator coil to deliver reliable year-round comfort. Engineered to achieve up to 18.0 SEER2 cooling efficiency, the system uses R-454B refrigerant and is designed for coordinated performance across all components. Ideal for homeowners seeking an integrated heating and cooling solution that balances efficiency with dependable climate control.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | 1U24T3PS1HE |
| Product Type | Heat Pump |
| Tonnage | 2 Ton |
| Cooling Capacity (BTU/h) | 24000 BTU/h |
| Heating Capacity (BTU/h) | 24000 BTU/h |
| SEER2 Rating | 18.0 |
| Defrost Type | Demand |
| Refrigerant Type | R-454B |
| Compressor Type | Inverter |
| Voltage/Phase/Frequency | 208-230V/1-Ph/60Hz |
| Min Circuit Ampacity | 21 A |
| Max Overcurrent Protection | 30 A |
| Factory Charge (oz) | 62 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Sound Level (dBA) | 69 dBA |
| Dimensions (H×W×D) | 30.125" x 40.188" x 17.125" |
| Shipping Weight | 176.4 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | NF80U045S3AR |
| Product Type | 80% AFUE Gas Furnace |
| AFUE Rating | 80% |
| Input BTU/h | 44,000 BTU |
| Output BTU/h | 36,000 BTU |
| Heating Stages | 1 |
| Blower Motor Type | Multi-Speed ECM (Constant Torque) (1/2 HP) |
| Fuel Type | Natural Gas / LP |
| Gas Connection Size | 1/2" FPT |
| Voltage/Phase/Frequency | 120V/1-Ph/60Hz |
| Min Circuit Ampacity | 6.8 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (H×W×D) | 33.0" x 14.5" x 28.5" |
| Shipping Weight | 111.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | NCHC24AT5S |
| Product Type | Horizontal Evaporator Coil |
| Tonnage | 2 Ton |
| Nominal Cooling (BTU/h) | 24000 BTU/h |
| Refrigerant Type | R-454B |
| Metering Device | TXV |
| Coil Configuration | Cased Horizontal |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Drain Connection Size | (2) 3/4" FPT |
| Dimensions (W×D×H) | 14.5" x 21.5" x 27.25" |
| Shipping Weight | 42.75 lbs |
Features
- 18 SEER2 cooling efficiency for energy-conscious comfort
- 80% AFUE gas furnace for reliable heating performance
- R-454B refrigerant system supports environmental sustainability standards
- 2 ton cooling capacity outdoor unit and coil
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
