HAIER 2 Ton 18.0 SEER2 R-454B 97% AFUE 45K BTU Dual Fuel System (Upflow Coil)
brand: Haier
- SKU:
- 1U24T3PS1HE,NF97U045V3BR,NCUC30BT5S
- Condition:
- New
- Shipping:
- Free Shipping

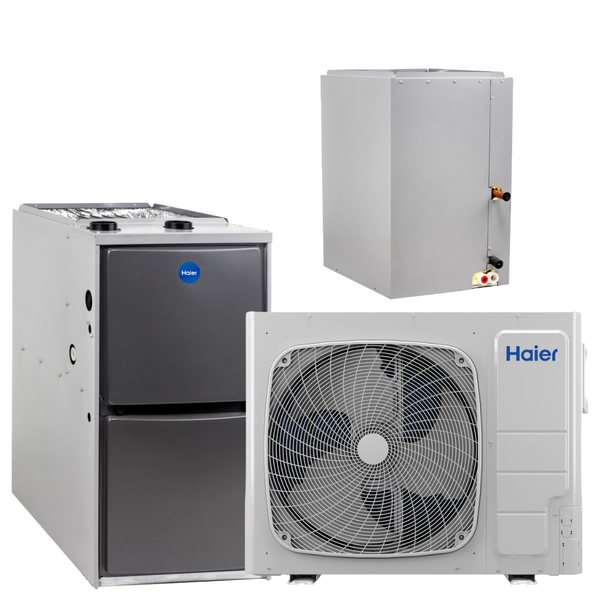

HAIER 2 Ton 18.0 SEER2 R-454B 97% AFUE 45K BTU Dual Fuel System (Upflow Coil)
This complete furnace and coil system pairs a 2.0-ton outdoor condenser unit with a 97% AFUE gas furnace and evaporator coil, all engineered to work together for reliable home comfort. The system achieves up to 18.0 SEER2 for efficient cooling performance and utilizes R-454B refrigerant. With a high-efficiency furnace rated at 97% AFUE, this matched system is designed to deliver both heating and cooling in a coordinated configuration.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | 1U24T3PS1HE |
| Product Type | Heat Pump |
| Tonnage | 2 Ton |
| Cooling Capacity (BTU/h) | 24000 BTU/h |
| Heating Capacity (BTU/h) | 24000 BTU/h |
| SEER2 Rating | 18.0 |
| Defrost Type | Demand |
| Refrigerant Type | R-454B |
| Compressor Type | Inverter |
| Voltage/Phase/Frequency | 208-230V/1-Ph/60Hz |
| Min Circuit Ampacity | 21 A |
| Max Overcurrent Protection | 30 A |
| Factory Charge (oz) | 62 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Sound Level (dBA) | 69 dBA |
| Dimensions (H×W×D) | 30.125" x 40.188" x 17.125" |
| Shipping Weight | 176.4 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | NF97U045V3BR |
| Product Type | 97% AFUE Gas Furnace |
| AFUE Rating | 97% |
| Input BTU/h | 44,000 BTU |
| Output BTU/h | 43,000 BTU |
| Heating Stages | 2 |
| Blower Motor Type | Variable Speed ECM (1/2 HP) |
| Fuel Type | Natural Gas / LP |
| Gas Connection Size | 1/2" FPT |
| Voltage/Phase/Frequency | 120V/1-Ph/60Hz |
| Min Circuit Ampacity | 7.7 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (H×W×D) | 33.0" x 17.5" x 28.5" |
| Shipping Weight | 124.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | NCUC30BT5S |
| Product Type | Upflow Evaporator Coil |
| Tonnage | 2.5 Ton |
| Nominal Cooling (BTU/h) | 30000 BTU/h |
| Refrigerant Type | R-454B |
| Metering Device | TXV |
| Coil Configuration | Cased Upflow |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Drain Connection Size | (2) 3/4" FPT |
| Dimensions (W×D×H) | 17.5" x 21.0" x 23.25" |
| Shipping Weight | 47.5 lbs |
Features
- 18 SEER2 system efficiency for reduced energy costs
- 97% AFUE gas furnace for maximum heating efficiency
- R-454B refrigerant compatible across all system components
- 2.0 ton outdoor condenser paired with matched indoor coil
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
