HAIER 3 Ton 18.0 SEER2 R-454B 96% AFUE 70K BTU Dual Fuel System (Upflow Coil)
brand: Haier
- SKU:
- 1U36T3PC1HE,NF96U070S3BR,NCUC36BT5S
- Condition:
- New
- Shipping:
- Free Shipping
HAIER 3 Ton 18.0 SEER2 R-454B 96% AFUE 70K BTU Dual Fuel System (Upflow Coil)

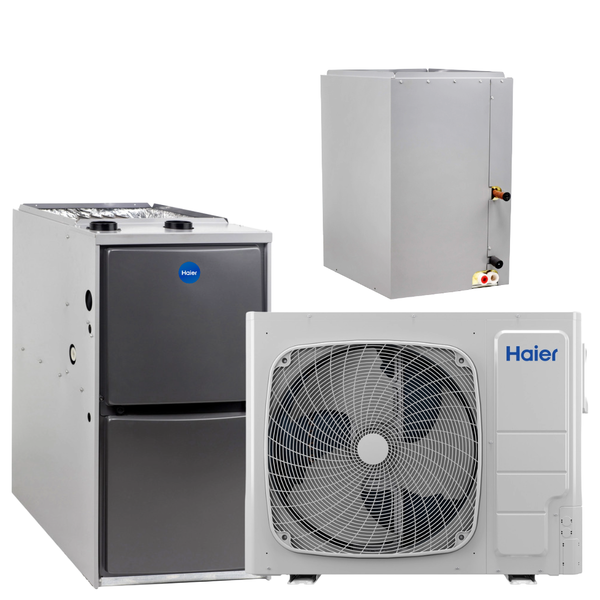

This complete furnace and coil system pairs a 3-ton outdoor condenser unit with a 96% AFUE gas furnace and matching evaporator coil to deliver efficient whole-home heating and cooling. The system achieves up to 18.0 SEER2 for air conditioning performance and operates on R-454B refrigerant. Designed as a matched set, these components work together to provide reliable climate control with high-efficiency operation for year-round comfort.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | 1U36T3PC1HE |
| Product Type | Heat Pump |
| Tonnage | 3 Ton |
| Cooling Capacity (BTU/h) | 36000 BTU/h |
| Heating Capacity (BTU/h) | 36000 BTU/h |
| SEER2 Rating | 18.0 |
| Defrost Type | Demand |
| Refrigerant Type | R-454B |
| Compressor Type | Inverter |
| Voltage/Phase/Frequency | 208-230V/1-Ph/60Hz |
| Min Circuit Ampacity | 24 A |
| Max Overcurrent Protection | 35 A |
| Factory Charge (oz) | 94 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Sound Level (dBA) | 75 dBA |
| Dimensions (H×W×D) | 33.062" x 43.125" x 19.875" |
| Shipping Weight | 213.8 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | NF96U070S3BR |
| Product Type | 96% AFUE Gas Furnace |
| AFUE Rating | 96% |
| Input BTU/h | 66,000 BTU |
| Output BTU/h | 63,900 BTU |
| Heating Stages | 1 |
| Blower Motor Type | Multi-Speed ECM (Constant Torque) (1/2 HP) |
| Fuel Type | Natural Gas / LP |
| Gas Connection Size | 1/2" FPT |
| Voltage/Phase/Frequency | 120V/1-Ph/60Hz |
| Min Circuit Ampacity | 6.8 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (H×W×D) | 33.0" x 17.5" x 28.5" |
| Shipping Weight | 129.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | NCUC36BT5S |
| Product Type | Upflow Evaporator Coil |
| Tonnage | 3 Ton |
| Nominal Cooling (BTU/h) | 36000 BTU/h |
| Refrigerant Type | R-454B |
| Metering Device | TXV |
| Coil Configuration | Cased Upflow |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Drain Connection Size | (2) 3/4" FPT |
| Dimensions (W×D×H) | 17.5" x 21.0" x 25.25" |
| Shipping Weight | 47.5 lbs |
Features
- 17.5 SEER2 cooling efficiency for reduced energy consumption
- 96% AFUE gas furnace delivers high heating performance
- 3-ton capacity system designed for reliable home comfort
- R-454B refrigerant for environmentally responsible climate control
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
