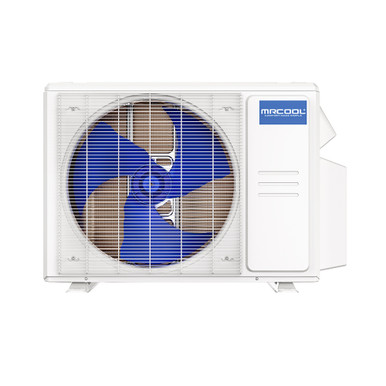

MRCOOL 18,000 BTU 21.2 SEER2 Air Conditioner Condenser - DIY-MULTI2-18HP230C
The 4th Generation MRCOOL® DIY® 18K BTU 2-Zone Ductless Heat Pump Condenser is the latest in heat pump technology. This 2-zone condenser, when paired with select MRCOOL® air handlers, is capable of producing an impressive 21 SEER efficiency rating. It also has the ability to heat even when temperatures drop to -13°F. It features robust construction which includes a Gold Fin® condenser coating so it is sure to withstand exposure to the elements. As a MRCOOL® DIY® product, this heat pump is designed specifically to be used with MRCOOL's® R-410A Pre-Charged Quick Connect® Line Sets—so homeowners can avoid refrigerant handling and brazing. They are also equipped with quick connectors, so the line set can be connected to the condenser by the homeowner using only wrenches. This means the installation process can be performed without retaining the services of a certified technician. The MRCOOL® DIY® 18K system is supported by comprehensive warranty coverage, including a 7-year compressor warranty and 5-year parts protection, and eligibility for the MRCOOL® Care Program. Let the 4th Generation MRCOOL® DIY® 18K be the solution to your home’s heating and cooling needs.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | MRCOOL |
| Model Number | DIY-MULTI2-18HP230C |
| Product Type | Air Conditioner Condenser |
| Series | DIY 4th Gen Multi-Zone |
| Cooling Capacity | 18,000 BTU |
| Heating Capacity | 19,000 BTU |
| SEER2 | 21.2 |
| EER2 | 12.5 |
| Refrigerant | R-410A |
| Voltage | 208/230 V |
| Phase | 1 |
| Color | White |
| Unit Dimensions | 26.5"H x 35.04"W x 13.46"D |
| Shipping Weight | 111 lb |
| Parts Warranty | 5-year Parts |
| Compressor Warranty | 7-year Compressor |
| Warranty | 5-year Parts/7-year Compressor |
Compliance & Shipping Notices
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Warranty Coverage
5-year Parts/7-year Compressor
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
