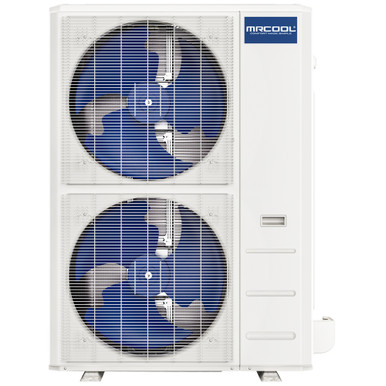

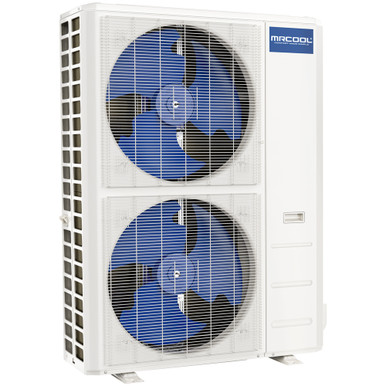

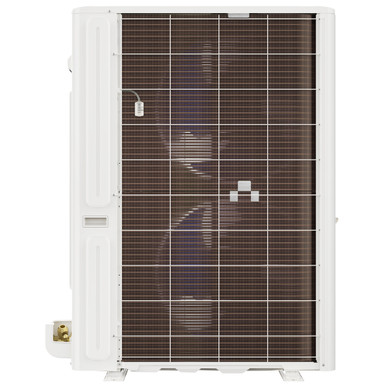

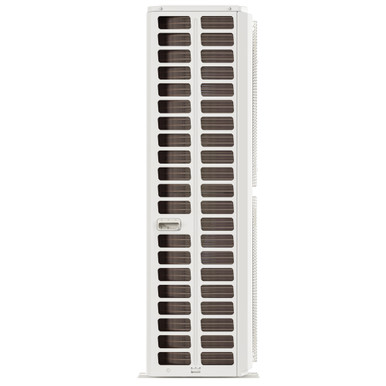

MRCOOL 5 Ton 16 SEER2 Heat Pump Condenser – CENTRAL-60-HP-C-230B00-O
$3,764.47
-
Product Details
- Model Number
- CENTRAL-60-HP-C-230B00-O
- Brand
- MRCOOL
- Condition
- New
Description
The CENTRAL-60-HP-C-230B00-O — MRCOOL 5 Ton 16 SEER2 Heat Pump Condenser – CENTRAL-60-HP-C-230B00-O — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.
About the CENTRAL-60-HP-C-230B00-O
MRCOOL 5 Ton 16 SEER2 Heat Pump Condenser – CENTRAL-60-HP-C-230B00-O
The 60K MRCOOL® Hyper Heat Central Ducted Condenser is built to perform exceptionally in all weather conditions, whether enduring the chill of winter or the heat of summer.
This advanced Hyper Heat system leverages DC Inverter technology and variable speed capabilities to ensure reliable and efficient operation. With a SEER2 rating of up to 16 and an HSPF2-4 rating of up to 9, it offers robust heating and cooling while optimizing energy usage. The included MRCOOL® Smart thermostat makes it easy to control your home’s climate.

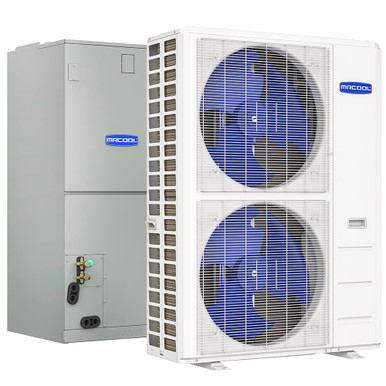

The 60K MRCOOL® VersaPro® Central Ducted Air Handler pairs seamlessly with the 60K MRCOOL® Hyper Heat Central Ducted Condenser. Designed for versatility, the air handler supports a variety of installation options and can be paired with an optional heat kit to enhance functionality. It uses R-454B refrigerant, an eco-conscious choice that reduces environmental impact.
Durability is key to the outdoor heat pump, which is constructed with painted galvanized steel for lasting strength. The air handler is designed for convenience, featuring a compact size, slide-out blower, and a self-diagnostic panel to simplify maintenance and troubleshooting.
With a 10-year warranty covering the compressor, parts, and labor, you can enjoy peace of mind knowing your system is covered. Upgrade your home’s heating and cooling with the reliable, efficient 60K MRCOOL® Hyper Heat Central Ducted Condenser today!
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | MRCOOL |
| Model Number | CENTRAL-60-HP-C-230B00-O |
| Product Type | Heat Pump Condenser |
| Series | Central Ducted Hyper Heat 2nd Gen |
| Tonnage | 5 |
| Cooling Capacity | 54,000 BTU |
| Heating Capacity | 56,000 BTU |
| SEER2 | 16 |
| EER2 | 10 |
| Refrigerant | R-454B |
| Voltage | 208/230 V |
| Phase | 1 |
| Color | Gray |
| Unit Dimensions | 52.48″H x 37.48″W x 16.34″D |
| Shipping Weight | 275.13 lb |
| Parts Warranty | 10 Years |
| Compressor Warranty | 10 Years |
Warranty Coverage
10 Years
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
CENTRAL-60-HP-C-230B00-O: fitment and resources
Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the U.S. Department of Energy heat pump guide. Browse the rest of our Central Ducted Systems or the MRCOOL catalog, and see what customers say on our reviews page.
Ordering and delivery
In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.
CENTRAL-60-HP-C-230B00-O FAQ
Does the CENTRAL-60-HP-C-230B00-O ship free?
Yes on orders over $99 — most orders that include it qualify.
How do I know it fits my system?
Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.
Additional information
| Weight | 275.13 lbs |
|---|---|
| Dimensions | 0.00 × 0.00 × 0.00 in |
| System Type | Mini Split |
| Brand | MRCOOL |
| Tonnage | 5 Ton |
| SEER2 | 16 |
| Refrigerant | R-454B |
| Voltage | 208/230V |
