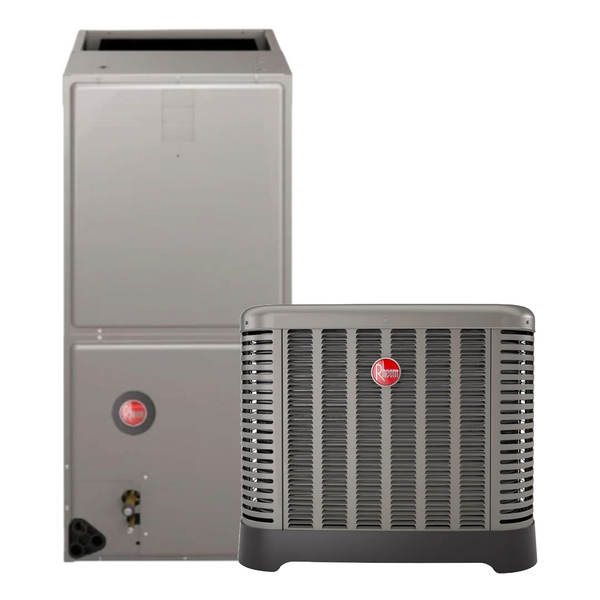

Rheem 1.5 Ton Heat Pump 14.3 SEER2 w/ Air Handler and 5KW Heat kit 17" R-454B

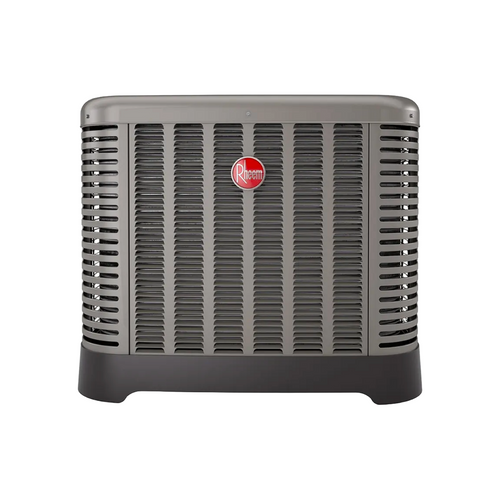

RP14AY18AJ1NA - Endeavor® Line Classic® Series Heat Pump

Key Features:

• Energy Efficiency: Achieves a SEER2 rating of 14.3, ensuring cost-effective heating and cooling throughout the year.

• Durable Construction: Built with high-quality materials to withstand various weather conditions, ensuring long-lasting performance.

• Quiet Operation: Designed to minimize noise, providing a comfortable indoor environment without disturbance.

• Eco-Friendly Refrigerant: Utilizes R-454B refrigerant, which has a lower global warming potential compared to traditional refrigerants.

Specifications:

• Model: RP14AY18AJ1NA

• Type: Residential Split Heat Pump

• Capacity: 1.5 Tons

• Refrigerant: R-454B

• SEER2 Rating: 14.3

• Dimensions (D x W x H): [Dimensions not provided]

• Weight: [Weight not provided]

RH2TY2417STANNJ - Endeavor® Line Air Handler

Key Features:

• Quiet Operation: Cabinet construction with 1.0 inch of foil-faced insulation ensures quieter sound characteristics.

• Aluminum Indoor Coil Design: Constructed with aluminum fins bonded to internally grooved aluminum tubing for enhanced corrosion resistance.

• Versatile 4-Way Convertible Compact Design: Allows for upflow, downflow, horizontal left, and horizontal right applications, even in compact spaces.

• Rugged Steel, Compact Cabinet Construction: Designed for added strength and versatility.

• Less than 2% Cabinet Air Leakage at 1-inch H2O: Tested in accordance with ASHRAE Standard 193 to ensure minimal air leakage.

• Designing for Sustainability with Low GWP: Utilizes R-454B refrigerant with a global warming potential (GWP) limit of 700, resulting in a 78% lower GWP than previous-generation refrigerants, aligning with 2025 Environmental Protection Agency (EPA) requirements.

• PlusOne® Refrigerant Detection System™: Integrated, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application, and system protection by automatically pausing outdoor unit operation if excess refrigerant is detected.

Specifications:

• Model: RH2TY2417STANNJ

• Type: Multipurpose Air Handler

• Voltage: 208 to 240 V

• Number of Phases: 1

• Frequency: 60 Hz

• Stages of Airflow: Two-Stage

• Motor Type: Constant Torque

• Refrigerant: R-454B

• Nominal Capacity: 24,000 Btu (7.03 kW)

• Efficiency: Standard

• Metering: TXV

• Controls: Non-communicating

• Coil Series: N Coil

• Air Flow - Low: 600 ft³/min (283 L/s)

• Air Flow - High: 800 ft³/min (378 L/s)

• Blower Motor: 1/3 hp (249 W)

• Blower Motor RPM: 300 to 1,100

• Blower Motor Speeds: 4

• Motor Amps: 2.8 A

• Minimum Circuit Ampacity: 4 A

• Maximum Overcurrent Protection: 15 A

• Weight: 91 lbs (41 kg)

• Shipping Weight: 105 lbs (48 kg)

• Dimensions (D x W x H): 21 11/16 in x 17 1/2 in x 42 1/2 in (551 mm x 445 mm x 1,080 mm)

• Supply Duct: 16 in (406 mm)

• Refrigerant Connections Sweat ID - Liquid: 3/8 in (9.53 mm)

• Refrigerant Connections Sweat ID - Vapor: 3/4 in (19.05 mm)

Limited Warranty:

• Conditional Parts: 10 Years (registration required)

WRX05021 - 5kW Heating Kit

Key Features:

• Efficient Heating Performance: Provides supplemental electric heat for HVAC systems, ensuring reliable warmth in colder conditions.

• Compact Design: Designed for seamless integration with compatible air handlers and heat pump systems.

• Easy Installation: Factory-approved kit for quick and secure installation.

• Durable Construction: Built with high-quality materials to ensure longevity and consistent performance.

• Optimized for Compatibility: Works with select air handlers and heat pump units to enhance heating capabilities.

Specifications:

• Model: WRX05021

• Heating Capacity: 5 kW

• Voltage: 208/240V

• Compatibility: Designed for use with select Rheem air handlers

• Construction: Heavy-duty components for reliability
