Rheem 3.5 Ton Dual Fuel System - 15.2 SEER2 Heat Pump & 92% AFUE Furnace - R-454B
brand: Rheem
- SKU:
- RP15AY42AJ2NA, R921T0855A21M4SNAS, RCFY4821STANMC
- Condition:
- New
- Shipping:
- Free Shipping
Rheem 3.5 Ton 15.2 SEER2 Complete HVAC System
Experience superior home comfort with this premium Rheem complete HVAC system. This professionally matched system combines a high-efficiency heat pump, variable-speed furnace, and perfectly sized evaporator coil to deliver optimal performance and energy savings year-round with advanced R-454B refrigerant technology.
Energy Efficient
15.2 SEER2 cooling efficiency and 92% AFUE heating efficiency for maximum energy savings and lower utility bills.
Complete System
Factory-matched components ensure optimal performance, reliability, and warranty coverage.
Quiet Operation
Advanced sound dampening technology provides whisper-quiet comfort without disrupting your home.
Variable Speed
ECM variable-speed technology provides consistent temperatures and improved humidity control.
System Components
| Model | Description |
|---|---|
| RP15AY42AJ2NA | 3.5 Ton 15.2 SEER2 Single-Stage Heat Pump |
| R921T0855A21M4SNAS | 85,000 BTU 92% AFUE Variable-Speed ECM Furnace |
| RCFY4821STANMC | 4 Ton Multi-Position Evaporator Coil |

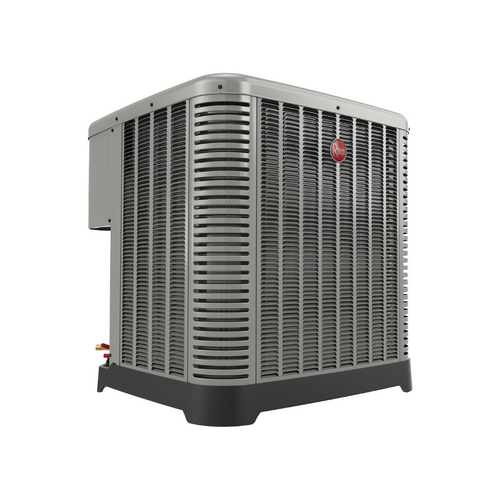

Rheem Heat Pump - RP15AY42AJ2NA
Premium 3.5-ton heat pump delivering exceptional efficiency with 15.2 SEER2 cooling and reliable heat pump heating. Engineered with Rheem's proven scroll compressor technology and environmentally responsible R-454B refrigerant for superior performance and reduced carbon footprint.
| Specification | Value |
|---|---|
| Cooling Capacity | 42,000 BTU (3.5 Tons) |
| Heating Capacity | 40,000 BTU |
| SEER2 Rating | 15.2 SEER2 |
| HSPF2 Rating | 7.8 HSPF2 |
| EER2 Rating | 11.7 EER2 |
| Sound Level | 71 dB |
| Refrigerant Type | R-454B (Low GWP) |
| Compressor Type | Single-Stage Scroll |
| Voltage | 208/230V-1Ph-60Hz |
| Min Circuit Ampacity | 26.1 Amps |
| Max Overcurrent Protection | 40 Amps |
| Dimensions (W×D×H) | 35.5" × 35.5" × 41.5" |
| Weight | 285 lbs |
Rheem Gas Furnace - R921T0855A21M4SNAS
High-efficiency 92% AFUE gas furnace with variable-speed ECM motor technology. This advanced furnace provides exceptional heating comfort with precise temperature control, enhanced humidity management, and whisper-quiet operation throughout your home.
| Specification | Value |
|---|---|
| Heating Capacity Input | 85,000 BTU |
| Heating Capacity Output | 78,200 BTU |
| AFUE Rating | 92% |
| Gas Type | Natural Gas (LP Convertible) |
| Heat Exchanger | Aluminized Steel Primary, Stainless Secondary |
| Stages of Operation | Single-Stage Heat |
| Blower Motor Type | Variable-Speed ECM |
| Max CFM | 1,600 CFM |
| Cabinet Width | 21" |
| Venting Type | Direct Vent (2-pipe) |
| Electrical | 115V-1Ph-60Hz |
| Dimensions (W×D×H) | 21" × 29.5" × 40" |
| Weight | 158 lbs |
Rheem Evaporator Coil - RCFY4821STANMC
Precision-engineered 4-ton evaporator coil designed for optimal heat transfer efficiency. Features advanced aluminum fin and copper tube construction with factory-installed TXV for precise refrigerant control, ensuring maximum system performance with R-454B refrigerant.
| Specification | Value |
|---|---|
| Nominal Capacity | 4.0 Tons (48,000 BTU) |
| Coil Type | A-Coil Configuration |
| Installation Position | Multi-Position (Upflow/Downflow) |
| Refrigerant Type | R-454B Compatible |
| Metering Device | Factory-Installed TXV |
| Drain Connection | 3/4" FPT |
| Cabinet Material | Galvanized Steel |
| Coil Construction | Aluminum Fins / Copper Tubes |
| Max Operating Pressure | 450 PSIG |
| Cabinet Dimensions (W×D×H) | 21" × 21" × 30" |
| Operating Weight | 62 lbs |
| Warranty Coverage | 10 Year Limited Parts |
Why Choose This Rheem System?
This complete Rheem HVAC system represents the perfect balance of efficiency, comfort, and reliability. The dual fuel configuration automatically switches between the energy-efficient heat pump and high-capacity gas furnace based on outdoor temperatures, ensuring optimal comfort and efficiency in any weather with advanced R-454B refrigerant technology.
Key Benefits:
- Year-Round Comfort: Dual fuel technology provides efficient cooling in summer and reliable heating even in extreme winter conditions
- Energy Savings: 15.2 SEER2 cooling and 92% AFUE heating ratings help reduce energy consumption by up to 30%
- Enhanced Air Quality: Variable-speed blower provides superior air filtration and humidity control
- Quiet Performance: Advanced sound dampening keeps operation noise to a minimum
- Smart Controls Ready: Compatible with smart thermostats for convenient temperature management
- Professional Quality: Commercial-grade components ensure long-lasting reliability
- Environmental Responsibility: R-454B refrigerant has 78% lower global warming potential than previous refrigerants
Ideal Applications:
This system is perfectly sized for homes between 1,750-2,100 square feet in moderate to cold climates. The dual fuel configuration makes it ideal for areas with fluctuating energy costs, as it can automatically switch between gas and electric heating for maximum efficiency.
Professional Installation Required
This system requires professional installation by certified HVAC technicians trained on R-454B refrigerant technology. Proper installation ensures optimal performance, maintains warranty coverage, and maximizes system lifespan. Contact your local HVAC contractor for installation services.
