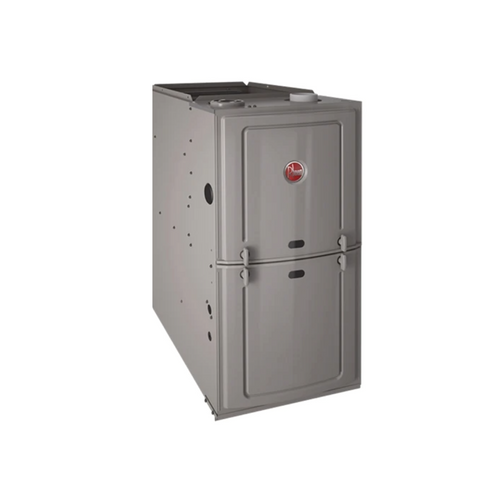

RHEEM R962V0603A17M4SCAP - 60,000 BTU 96% AFUE Two-Stage Furnace
brand: Rheem
- SKU:
- R962V0603A17M4SCAP
- Condition:
- New
- Shipping:
- Free Shipping
**3-5 WEEK LEAD TIME**
RHEEM R962V0603A17M4SCAP - 60,000 BTU 96% AFUE Two-Stage Furnace
High-efficiency gas furnace featuring Two-Stage heating with 96% AFUE rating and Variable Speed motor technology for superior comfort control and energy savings. Designed for residential applications with EcoNet connectivity.
96% AFUE Efficiency
ENERGY STAR Certified with 96% AFUE rating delivers exceptional energy savings and reduced operating costs.
Two-Stage Heating
Variable heating stages (56,000 / 39,200 BTU input) optimize comfort and efficiency while reducing energy consumption.
EcoNet Technology
Advanced connectivity with Bluetooth technology and PlusOne Diagnostics for smart home integration and remote monitoring.
Variable Speed Motor
Variable Speed motor with 1/2 HP delivers precise airflow control between 300-1,240 CFM for optimal comfort.
Technical Specifications
Complete specifications for the RHEEM R962V0603A17M4SCAP furnace, including performance ratings, electrical requirements, and physical dimensions.
| Specification | Value |
|---|---|
| BTU Input (High Fire) | 56,000 BTU |
| BTU Input (Low Fire) | 39,200 BTU |
| Heating Capacity | 55,000 BTU |
| High Altitude Output | 48,384 BTU |
| AFUE Rating | 96% |
| Series | R962V |
| Heating Stages | Two-Stage |
| Motor Type | Variable Speed ECM |
| Motor HP | 1/2 HP |
| Motor FLA | 5.8 Amps |
| Max CFM | 1,240 CFM |
| Min CFM | 300 CFM |
| Heating CFM | 1,100 CFM |
| Fan CFM | 600 CFM |
| Cabinet Width | 17.5" |
| Dimensions (W x D x H) | 17.5" x 29.63" x 34" |
| Weight | 128 lbs |
| Voltage | 115V/1Ph/60Hz |
| Min Circuit Ampacity | 8 |
| Min Overload Protection | 15 Amps |
| Max Overload Protection | 15 Amps |
| Blower Size | 11 x 8" |
| Gas Connection | 1/2" NPT |
| Gas Type | Natural Gas |
| Temp Rise (High Fire) | 30-60°F |
| Temp Rise (Low Fire) | 20-50°F |
| Max External Static Pressure | 1.0" WC |
Advanced Features & Performance
The RHEEM R962V0603A17M4SCAP delivers exceptional performance with advanced Two-Stage heating technology and smart connectivity features.
Key Benefits:
- 96% AFUE Efficiency: ENERGY STAR Certified for maximum energy savings and environmental responsibility.
- EcoNet Connectivity: Smart home integration with Bluetooth technology and remote monitoring capabilities.
- PlusOne Diagnostics: Advanced diagnostic system for predictive maintenance and troubleshooting.
- Two-Stage Heating: Variable BTU output optimizes comfort and reduces energy consumption.
- Variable Speed Motor: Variable Speed motor adjusts airflow based on system demands for optimal comfort.
- Direct Spark Ignition: Reliable ignition system with enhanced safety and efficiency.
- PlusOne Water Management: Advanced condensate management system prevents water damage.
- 4-Way Multi-Position: Flexible installation options for upflow, downflow, left, or right horizontal configurations.
Professional Installation Required
This high-efficiency furnace requires professional installation by certified HVAC technicians for optimal performance and warranty compliance.
