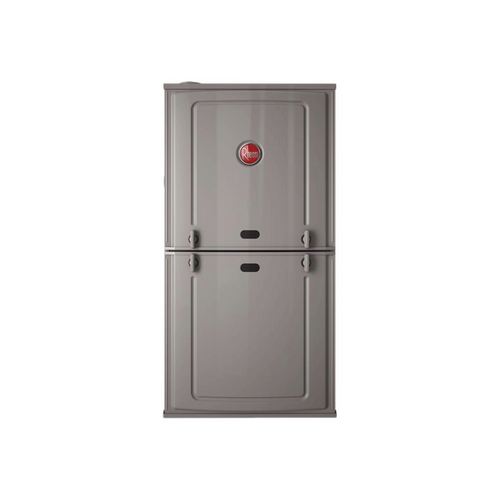

RHEEM R801V1005A21UHSCAP - 100,000 BTU 80% AFUE Single Stage Furnace
brand: Rheem
- SKU:
- R801V1005A21UHSCAP
- Condition:
- New
- Shipping:
- Free Shipping
RHEEM R801V1005A21UHSCAP - 100,000 BTU 80% AFUE Single Stage Furnace
High-efficiency gas furnace featuring Single Stage heating with 80% AFUE rating and Variable Speed motor technology for superior comfort control and energy savings. Designed for residential applications with EcoNet connectivity and advanced diagnostics.
80% AFUE Efficiency
Reliable heating performance with 80% AFUE rating delivers exceptional energy savings and reduced operating costs.
Single Stage
Reliable Single Stage heating with 100,000 BTU input provides consistent comfort for residential applications.
EcoNet Technology
Advanced connectivity with Bluetooth technology and PlusOne Diagnostics for smart home integration and remote monitoring.
Variable Speed Motor
Variable Speed motor with 1 HP delivers precise airflow control between 500-1,980 CFM for optimal comfort.
Technical Specifications
Complete specifications for the RHEEM R801V1005A21UHSCAP furnace, including performance ratings, electrical requirements, and physical dimensions.
| Specification | Value |
|---|---|
| BTU Input | 100,000 BTU |
| Heating Capacity | 80,000 BTU BTU |
| High Altitude Output | 72,000 BTU BTU |
| AFUE Rating | 80% |
| Series | R801V |
| Heating Stages | Single Stage |
| Motor Type | Variable Speed ECM |
| Motor HP | 1 HP |
| Motor FLA | 12.4 Amps |
| Max CFM | 1,980 CFM |
| Min CFM | 500 CFM |
| Heating CFM | 1,440 CFM |
| Fan CFM | 1,000 CFM |
| Cabinet Width | 21.5" |
| Dimensions (W x D x H) | 21.5" x 29.59" x 34" |
| Weight | 150 lbs |
| Voltage | 115V/1Ph/60Hz |
| Min Circuit Ampacity | 17 |
| Min Overload Protection | 20 Amps |
| Max Overload Protection | 25 Amps |
| Blower Size | 11 x 10" |
| Gas Connection | 1/2 inch NPT NPT |
| Gas Type | Natural Gas |
| Temp Rise | 40-70°F |
| Max External Static Pressure | 1.0" WC |
Advanced Features & Performance
The RHEEM R801V1005A21UHSCAP delivers exceptional performance with advanced Single Stage heating technology and smart connectivity features.
Key Benefits:
- 80% AFUE: Reliable heating performance for maximum energy savings and environmental responsibility.
- EcoNet Connectivity: Smart home integration with Bluetooth technology and remote monitoring capabilities.
- PlusOne Diagnostics: Advanced diagnostic system for predictive maintenance and troubleshooting.
- Single Stage: Reliable and consistent heating performance for optimal comfort.
- Variable Speed Motor: Variable Speed motor adjusts airflow based on system demands for optimal comfort.
- Direct Spark Ignition: Reliable ignition system with enhanced safety and efficiency.
- PlusOne Water Management System: Advanced condensate management system prevents water damage.
Professional Installation Required
This high-efficiency furnace requires professional installation by certified HVAC technicians for optimal performance and warranty compliance.
