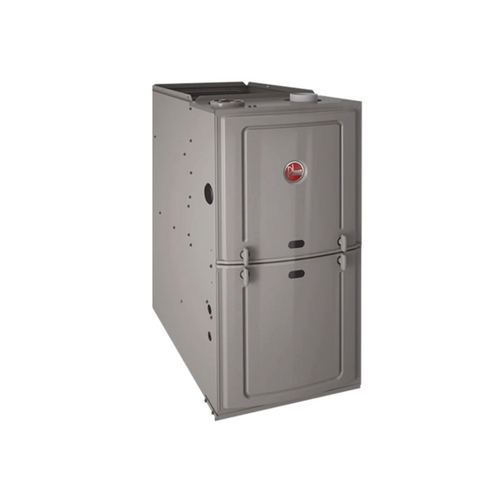

RHEEM R921V0403A17M4SCAP - 40,000 BTU 92% AFUE Single Stage Furnace
brand: Rheem
- SKU:
- R921V0403A17M4SCAP
- Condition:
- New
- Shipping:
- Free Shipping
RHEEM R921V0403A17M4SCAP - 40,000 BTU 92% AFUE Single Stage Furnace
High-efficiency gas furnace featuring Single Stage heating with 92% AFUE rating and Variable Speed motor technology for superior comfort control and energy savings. Designed for residential applications with EcoNet connectivity.
92% AFUE Efficiency
ENERGY STAR Certified (South) with 92% AFUE rating delivers excellent energy savings and reduced operating costs.
Single Stage Heating
Reliable 40,000 BTU input capacity provides consistent heating performance for optimal comfort.
EcoNet Technology
Advanced connectivity with Bluetooth technology and PlusOne Diagnostics for smart home integration and remote monitoring.
Variable Speed Motor
Variable Speed motor with 1/2 HP delivers precise airflow control between 300-1,240 CFM for optimal comfort.
Technical Specifications
Complete specifications for the RHEEM R921V0403A17M4SCAP furnace, including performance ratings, electrical requirements, and physical dimensions.
| Specification | Value |
|---|---|
| BTU Input | 42,000 BTU |
| Heating Capacity | 39,900 BTU |
| High Altitude Output | 35,910 BTU |
| AFUE Rating | 92% |
| Series | R921V |
| Heating Stages | Single Stage |
| Motor Type | Variable Speed ECM |
| Motor HP | 1/2 HP |
| Motor FLA | 6.1 Amps |
| Max CFM | 1,240 CFM |
| Min CFM | 300 CFM |
| Heating CFM | 990 CFM |
| Fan CFM | 600 CFM |
| Cabinet Width | 17.5" |
| Dimensions (W x D x H) | 17.5" x 29.63" x 34" |
| Weight | 123.5 lbs |
| Voltage | 115V/1Ph/60Hz |
| Min Circuit Ampacity | 10 |
| Min Overload Protection | 15 Amps |
| Max Overload Protection | 15 Amps |
| Blower Size | 11 x 7" |
| Gas Connection | 1/2" NPT |
| Gas Type | Natural Gas |
| Temperature Rise | 20-50°F |
| Max External Static Pressure | 1.0" WC |
Advanced Features & Performance
The RHEEM R921V0403A17M4SCAP delivers exceptional performance with advanced Single Stage heating technology and smart connectivity features.
Key Benefits:
- 92% AFUE Efficiency: ENERGY STAR Certified (South) for excellent energy savings and environmental responsibility.
- EcoNet Connectivity: Smart home integration with Bluetooth technology and remote monitoring capabilities.
- PlusOne Diagnostics: Advanced diagnostic system for predictive maintenance and troubleshooting.
- Variable Speed Motor: Variable Speed motor adjusts airflow based on system demands for optimal comfort and efficiency.
- Single Stage Heating: Reliable heating performance with consistent temperature control.
- Direct Spark Ignition: Reliable ignition system with enhanced safety and efficiency.
- PlusOne Water Management: Advanced condensate management system prevents water damage.
- 4-Way Multi-Position: Flexible installation options for upflow, downflow, left, or right horizontal configurations.
Professional Installation Required
This high-efficiency furnace requires professional installation by certified HVAC technicians for optimal performance and warranty compliance.
