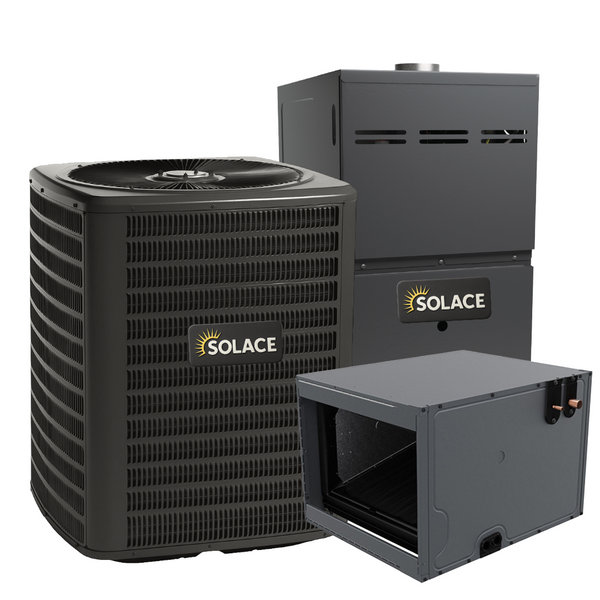

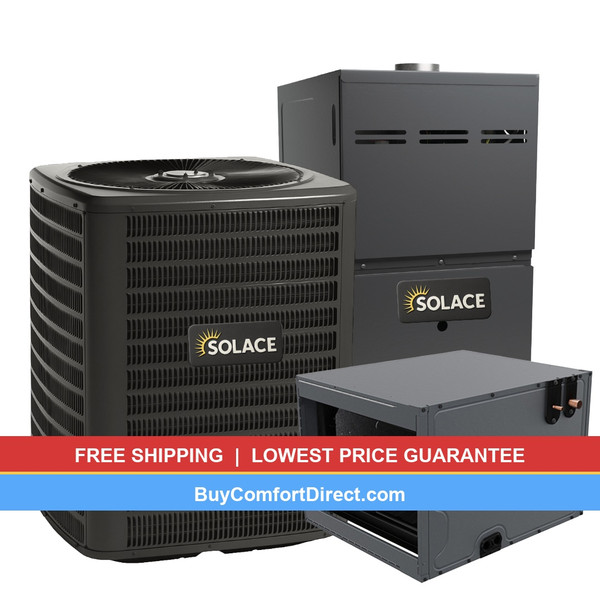

SOLACE 2 Ton 15.2 SEER2 R-32 80% AFUE Gas Furnace Air Conditioning System (Horizontal Coil)
Experience reliable home comfort with this complete Solace 2 ton HVAC system (Horizontal Coil). This matched system combines a high-efficiency 15.2 SEER2 air conditioner, a 80% AFUE single-stage gas furnace with multi-speed ECM blower, and a precision-engineered horizontal evaporator coil with factory-installed TXV. Designed for dependable year-round heating and cooling performance, this system delivers excellent energy efficiency, quiet operation, and proven reliability with R-32 refrigerant.
Technical Specifications
Air Conditioner — S-GLXS5BA2410 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GLXS5BA2410 |
| Product Type | Air Conditioner Condenser |
| Tonnage | 2 Ton |
| Cooling Capacity | 24,000 BTU/h |
| SEER2 Rating | 15.2 |
| Refrigerant Type | R-32 |
| Refrigerant Charge | 65 oz |
| Compressor Type | Scroll |
| Voltage/Phase/Frequency | 208/230-1V-1-60Hz |
| Min Circuit Ampacity | 13.8 A |
| Max Overcurrent Protection | 20 A |
| Sound Level | 69.0 dBA |
| Liquid Line Size | ⅜" |
| Suction Line Size | ¾" |
| Dimensions (W×D×H) | 29.0" × 29.0" × 32.0" |
| Shipping Weight | 149 lbs |
Gas Furnace — S-GR9S800403ANA Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-GR9S800403ANA |
| Product Type | Gas Furnace |
| BTU Input | 40,300 BTU/h |
| BTU Output | 32,240 BTU/h |
| AFUE | 80% |
| Heating Stages | Single Stage |
| Blower Motor Type | Multi-Speed ECM |
| Configuration | Multi-Position |
| Voltage/Phase/Frequency | 120/1/60V-1-60Hz |
| Min Circuit Ampacity | 15.0 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (W×D×H) | 14.5" × 29.0" × 33.0" |
| Shipping Weight | 120 lbs |
Evaporator Coil — S-CHPTA2426B3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Solace |
| Model Number | S-CHPTA2426B3 |
| Product Type | Cased Horizontal Evaporator Coil |
| Tonnage | 2 Ton |
| Metering Device | Factory-Installed TXV |
| Configuration | Cased |
| Liquid Line Connection | ⅜" |
| Suction Line Connection | ¾" |
| Dimensions (W×D×H) | 22.0" × 23.0" × 16.0" |
| Shipping Weight | 40 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
