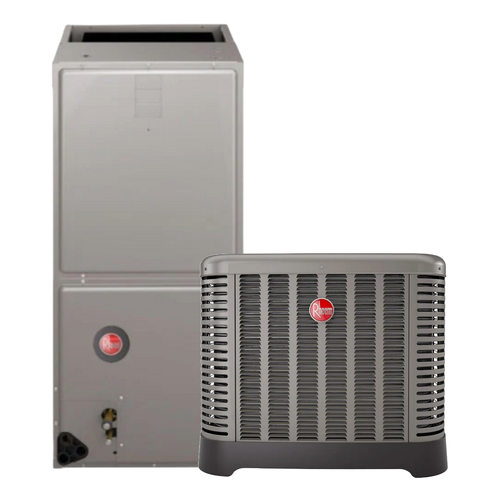

4 Ton AC 14.3 SEER2 w/ Air Handler and 10KW Heat kit 21" R-454B

RA14AY48AJ1NA - Endeavor® Line Classic® Series Air Conditioner

Key Features:

• Energy Efficiency: Achieves a 13.8 SEER2 rating, ensuring cost-effective and environmentally friendly operation.

• Durable Construction: Built with high-quality materials to withstand various weather conditions, ensuring years of dependable service.

• Advanced Performance: Designed to deliver optimal cooling for your home while maintaining quiet operation.

• Compact Design: Space-saving dimensions make it easy to install in a variety of residential settings.

Specifications:

• Model: RA14AY48AJ1NA

• Refrigerant Type: R-454B

• Nominal Capacity: 48,000 Btu (4 Tons)

• Cooling Efficiency: 13.8 SEER2 / 11.7 EER2

• Sound Level: 74 dB

• ENERGY STAR® Certified: Yes

• EcoNet® Enabled: No

• Compressor Type: Single-Stage Scroll

• Condenser Coil Type: 7mm

• Weight: 243 lbs

PlusOne® Features:

• PlusOne® Expanded Valve Space: Provides a minimum working area of 27 square inches for easier installation and service.

• PlusOne® Triple Service Access: Industry-leading 15-inch wide corner service access with two fastener removable corners and easily removable individual louver panels.

• PlusOne® Refrigerant Detection System™: Integrated, patented design providing system protection and homeowner peace of mind with low GWP refrigerant monitoring.

Dimensions:

• Depth: 33 3/4 inches

• Width: 33 3/4 inches

• Height: 35 inches

Limited Warranty:

• Conditional Parts: 10 Years (registration required)

RH2TY4821STANNJ - Endeavor® Line Air Handler

Key Features:

• Quiet Operation: Cabinet construction with 1.0 inch of foil-faced insulation ensures quieter sound characteristics.

• Aluminum Indoor Coil Design: Constructed with aluminum fins bonded to internally grooved aluminum tubing for enhanced corrosion resistance.

• Versatile 4-Way Convertible Compact Design: Allows for upflow, downflow, horizontal left, and horizontal right applications, even in compact spaces.

• Rugged Steel, Compact Cabinet Construction: Designed for added strength and versatility.

• Less than 2% Cabinet Air Leakage at 1-inch H2O: Tested in accordance with ASHRAE Standard 193 to ensure minimal air leakage.

• Designing for Sustainability with Low GWP: Utilizes R-454B refrigerant with a global warming potential (GWP) limit of 700, resulting in a 78% lower GWP than previous-generation refrigerants, aligning with 2025 Environmental Protection Agency (EPA) requirements.

• PlusOne® Refrigerant Detection System™: Integrated, patented design featuring the A2L sensor and mitigation board, offering easier commissioning with a single component and simplified wiring configuration, compatibility with any 24V thermostat application, and system protection by automatically pausing outdoor unit operation if excess refrigerant is detected.

Specifications:

• Model: RH2TY4821STANNJ

• Type: Multipurpose Air Handler

• Voltage: 208 to 240 V

• Number of Phases: 1

• Frequency: 60 Hz

• Stages of Airflow: Two-Stage

• Motor Type: Constant Torque

• Refrigerant: R-454B

• Nominal Capacity: 48,000 Btu (14.07 kW)

• Efficiency: Standard

• Metering: TXV

• Controls: Non-communicating

• Coil Series: N Coil

• Air Flow - Low: 1,400 ft³/min (661 L/s)

• Air Flow - High: 1,600 ft³/min (755 L/s)

• Blower Motor: 3/4 hp (559 W)

• Blower Motor RPM: 300 to 1,100

• Blower Motor Speeds: 4

• Motor Amps: 3.7 A

• Minimum Circuit Ampacity: 5 A

• Maximum Overcurrent Protection: 15 A

• Weight: 128 lbs (56 kg)

• Shipping Weight: 144 lbs (65 kg)

• Dimensions (D x W x H): 21 11/16 in x 21 in x 50 1/2 in (551 mm x 533 mm x 1,282 mm)

• Supply Duct: 19 1/2 in (495 mm)

• Refrigerant Connections Sweat ID - Liquid: 3/8 in (9.53 mm)

• Refrigerant Connections Sweat ID - Vapor: 7/8 in (22.23 mm)

Limited Warranty:

• Conditional Parts: 10 Years (registration required)

Specifications:

• Model: WRX10021
• Heating Capacity: 10 kW
• Voltage: 208/240V
• Phase: Single
• Number of Heating Elements: 2
• Amperage at 208V: 47.6A
• Amperage at 240V: 41.7A
• Breaker Size: 50A
• Compatibility: Designed for use with select Rheem air handlers
• Construction: Heavy-duty components for enhanced reliability
• Installation: Factory-approved kit for secure and efficient integration

Limited Warranty:

• Conditional Parts Warranty: 10 Years (registration required)
