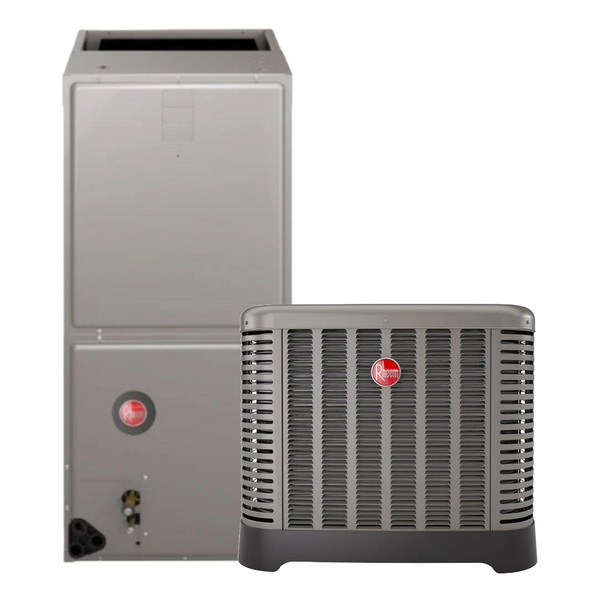

Rheem 3.5 Ton AC 14.3 SEER2 w/ Air Handler and 10KW Heat kit 21" R-454B

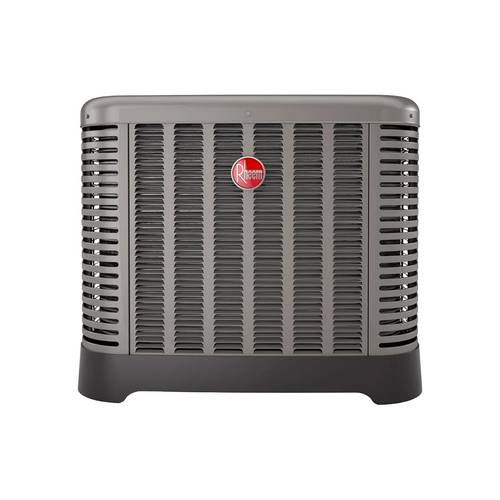

RA14AY42AJ1NA - Endeavor® Line Classic® Series Air Conditioner

Key Features:

• Energy Efficiency: Achieves a SEER2 rating of 14.3, providing cost-effective cooling throughout the year.
• Durable Construction: Built with high-quality materials to withstand various weather conditions, ensuring long-lasting performance.
• Quiet Operation: Designed to minimize noise, providing a comfortable indoor environment without disturbance.
• Eco-Friendly Refrigerant: Utilizes R-454B refrigerant, which has a lower global warming potential compared to traditional refrigerants.

Specifications:

• Model: RA14AY42AJ1NA
• Type: Residential Split Air Conditioner
• Capacity: 3.5 Tons
• Refrigerant: R-454B
• SEER2 Rating: 14.3
• Sound Level: As low as 72 dB
• Compressor Type: Single-Stage
• Condenser Coil Type: 7mm
• Weight: 202 lbs

PlusOne® Features:

• Expanded Valve Space: Provides a minimum working area of 27 square inches for easier installation and service.
• Triple Service Access: Industry-leading 15-inch wide corner service access with two fastener removable corners and easily removable individual louver panels.
• Refrigerant Detection System™: Integrated, patented design providing system protection and homeowner peace of mind with low GWP refrigerant monitoring.

Dimensions:

• Depth: 33.75 inches
• Width: 33.75 inches
• Height: 35 inches

Limited Warranty:

• Conditional Parts: 10 Years (registration required)

RH2TY4821STANNJ - Endeavor® Line Air Handler

Key Features:

• Quiet Operation: Cabinet construction with 1.0 inch of foil-faced insulation ensures quieter sound characteristics.
• Aluminum Indoor Coil Design: Constructed with aluminum fins bonded to internally grooved aluminum tubing for enhanced corrosion resistance.
• Versatile 4-Way Convertible Compact Design: Allows for upflow, downflow, horizontal left, and horizontal right applications, even in compact spaces.
• Rugged Steel, Compact Cabinet Construction: Designed for added strength and versatility.
• Less than 2% Cabinet Air Leakage at 1-inch H₂O: Tested in accordance with ASHRAE Standard 193 to ensure minimal air leakage.
• Designing for Sustainability with Low GWP: Utilizes R-454B refrigerant with a global warming potential (GWP) limit of 700, reducing environmental impact.
• PlusOne® Refrigerant Detection System™: Integrated, patented design providing system protection and homeowner peace of mind with low GWP refrigerant monitoring.

Specifications:

• Model: RH2TY4821STANNJ
• Voltage: 208 to 240 V
• Number of Phases: 1
• Frequency: 60 Hz
• Stages of Airflow: Two-Stage
• Motor Type: Constant Torque
• Refrigerant: R-454B
• Nominal Capacity: 48,000 Btu (4 Tons)
• Metering: TXV
• Controls: Non-communicating
• Blower Motor: 3/4 hp
• Blower Motor RPM: 300 to 1,100
• Motor Amps: 5.6 A
• Minimum Circuit Ampacity: 7 A
• Maximum Overcurrent Protection: 15 A
• Weight: 128 lbs
• Shipping Weight: 144 lbs
• Dimensions (D x W x H): 21 11/16 in x 21 in x 50 1/2 in
• Supply Duct: 19 1/2 in
• Refrigerant Connections - Liquid: 3/8 in
• Refrigerant Connections - Vapor: 7/8 in

Limited Warranty:

• Conditional Parts: 10 Years (registration required)

WRX10021 - 10 kW Heating Kit

Key Features:

• Efficient Heating Performance: Provides supplemental electric heat for HVAC systems, ensuring reliable warmth in colder conditions.
• Compact Design: Designed for seamless integration with compatible air handlers and heat pump systems.
• Easy Installation: Factory-approved kit for quick and secure installation.
• Durable Construction: Built with high-quality materials to ensure longevity and consistent performance.
• Optimized for Compatibility: Works with select air handlers and heat pump units to enhance heating capabilities.
• Built-in Overcurrent Protection: Ensures system safety by preventing overheating and electrical issues.

Specifications:

• Model: WRX10021
• Heating Capacity: 10 kW
• Voltage: 208/240V
• Phase: Single
• Number of Heating Elements: 2
• Amperage at 208V: 47.6A
• Amperage at 240V: 41.7A
• Breaker Size: 50A
• Compatibility: Designed for use with select Rheem air handlers
• Construction: Heavy-duty components for enhanced reliability
• Installation: Factory-approved kit for secure and efficient integration

Limited Warranty:

• Conditional Parts Warranty: 10 Years (registration required)
• General Parts Warranty: 5 Years (if not registered)
