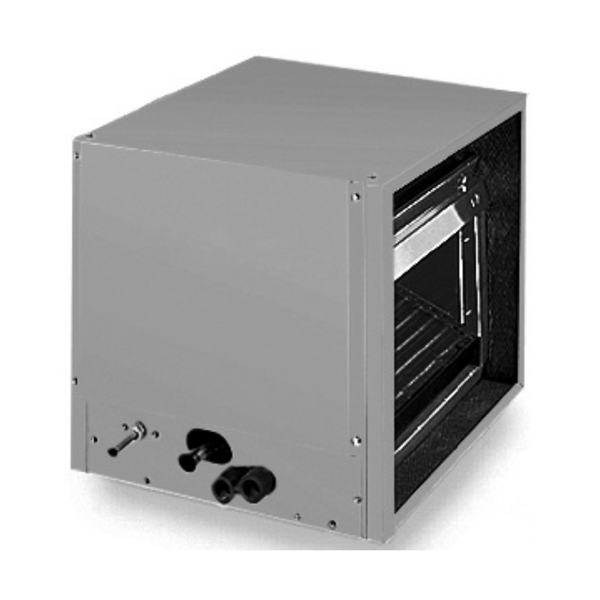

ADP 2.5 Ton R-410A Horizontal Cased Evaporator Coil - C30H142P449
brand:
- SKU:
- C30H142P449
- Shipping:
- Free Shipping
ADP 2.5 Ton R-410A Horizontal Cased Evaporator Coil - C30H142P449
The ADP C-Series C30H142P449 is a high-efficiency 2.5-ton horizontal cased evaporator coil designed for seamless integration with Carrier, Bryant, and Payne furnace systems. Built with durable aluminum slab construction and a factory-installed TXV for precise refrigerant metering, this coil delivers reliable performance in horizontal applications such as attics, crawlspaces, and closet installations. Features include Microban antimicrobial drain pan protection, dual condensate drains for flexible left or right airflow configurations, and 5/8" foil-faced cabinet insulation. This evaporator coil requires a compatible outdoor unit and furnace (sold separately) to complete your system.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | ADP (Advanced Distributor Products) |
| Model Number | C30H142P449 |
| Product Type | Horizontal Cased Evaporator Coil (A-Coil) |
| Series | C-Series |
| Tonnage | 2.5 Tons |
| Nominal Capacity | 30,000 BTU/hr |
| Refrigerant Type | R-410A |
| Metering Device | TXV (Factory Installed) |
| Coil Configuration | Horizontal |
| Slab Type | Aluminum (High-Efficiency Lanced Fin) |
| Cabinet Color | P (Carrier/Bryant/Payne Match) |
| Liquid Line Size | ⅜" ODF |
| Suction Line Size | ¾" ODF |
| Dimensions (W×D×H) | 14" × 21" × 26.5" |
| Furnace Cabinet Width | 14" |
| Condensate Drain | Dual ¾" FPT (Front & Back) |
| Shipping Weight | 32 lbs |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection. Air pressure tested at 500 PSI, leak tested with helium, and charged with dry air for guaranteed quality.
AHRI Certified & UL Listed
This evaporator coil is AHRI certified and UL/cUL listed, meeting all applicable safety and performance standards. Compatible with R-410A refrigerant systems. ISO 9001:2008 registered quality system.
