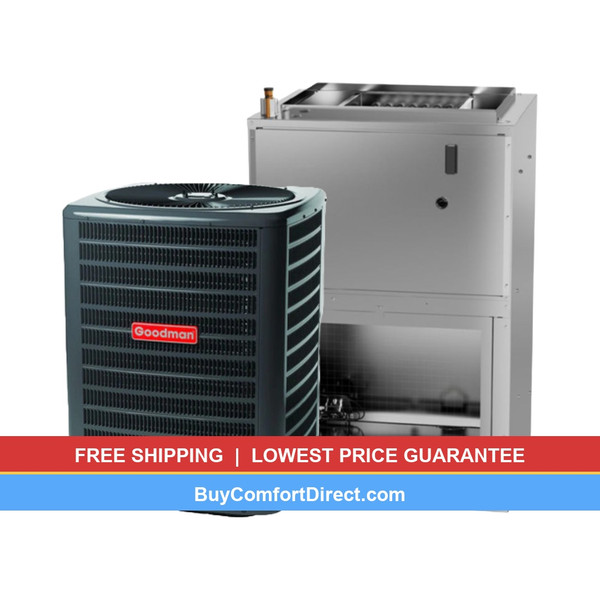

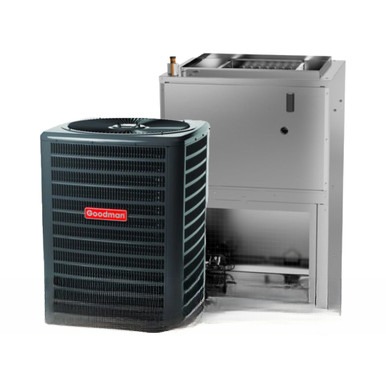

Goodman 1.5 Ton 14.3 SEER2 AC System with Air Handler – Wall-Mount – GLXS4BA1810
$2,850.00
-
Product Details
- Model Numbers
- GLXS4BA1810
AWST18SU1305 - Brand
- Goodman
- Condition
- New
- Warranty
- Goodman's standard 10 year parts warranty when registered online through the manufacturer.
Description
The Goodman 1.5 Ton 14.3 SEER2 AC System with Air Handler — Goodman 1.5 Ton 14.3 SEER2 AC System with Air Handler – Wall-Mount – GLXS4BA1810 — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.
About the Goodman 1.5 Ton 14.3 SEER2 AC System with Air Handler
GOODMAN 1.5 Ton 14.3 SEER2 R-32 Air Conditioning System with Wall-Hung Air Handler
Experience superior comfort cooling with this complete Goodman 1.5-ton air conditioning system featuring a space-saving wall-hung air handler with integrated electric heat. This matched system combines a high-efficiency 14.3 SEER2 air conditioner with a wall-mounted air handler that includes a 5kW electric heat kit for reliable winter heating. Perfect for homes where floor space is limited, this system delivers efficient cooling and heating with environmentally-friendly R-32 refrigerant while maximizing your usable living space.
Technical Specifications

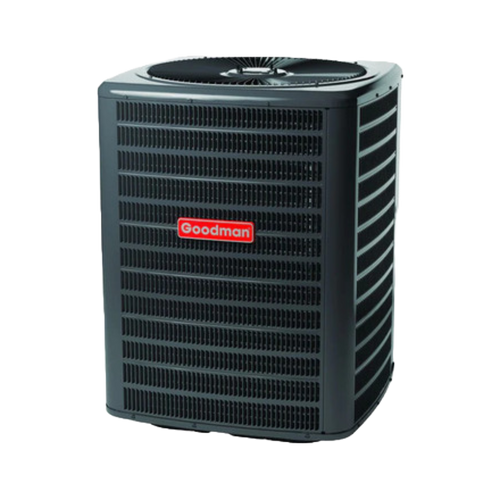

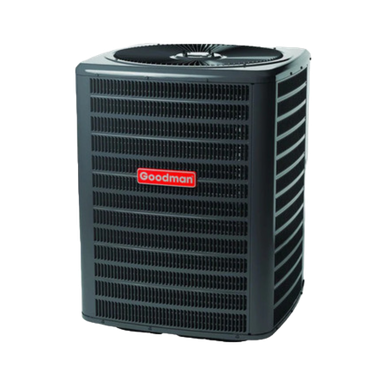

Air Conditioner – GLXS4BA1810A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | GLXS4BA1810A |
| Tonnage | 1.5 Ton |
| Cooling Capacity (Nominal) | 18,000 BTU/h |
| SEER2 Rating | 14.3 |
| Refrigerant | R-32 |
| Compressor Type | Single-Stage Rotary |
| Compressor RLA | 8.2 A |
| Compressor LRA | 41.2 A |
| Fan Motor Type | PSC (1/6 HP) |
| Fan Motor FLA | 0.95 A |
| Voltage | 208–230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 11.2 A |
| Max Overcurrent Protection | 15 A |
| Sound Level | 74.0 dBA |
| Dimensions (H×W×D) | 32½” × 29″ × 29″ |
| Weight | 150 lbs |
| Refrigerant Charge | 70 oz (Factory charged for 15′ line) |
| Liquid Line Size | ⅜” |
| Suction Line Size | ¾” |

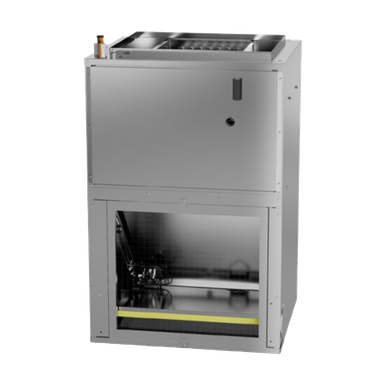

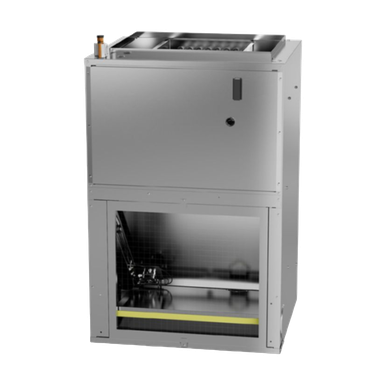

Wall-Hung Air Handler – AWST18SU1305A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | AWST18SU1305A |
| Tonnage | 1.5 Ton |
| Type | Wall-Hung Indoor Air Handler |
| Refrigerant | R-32 Compatible |
| Blower Motor | Multi-Speed ECM |
| Voltage | 208–230V / 1Ph / 60Hz |
| Integrated Electric Heat Kit | 5 kW (17,060 BTU/h) |
| Heat Kit Voltage | 208–230V / 1Ph / 60Hz |
| Heat Kit Amperage | 21.7 A @ 230V |
| Heat Kit Stages | 2-Stage (2.5kW + 2.5kW) |
| Metering Device | TXV (Thermal Expansion Valve) |
| Liquid Connection | ⅜” |
| Suction Connection | ¾” |
| Dimensions (H×W×D) | 28″ × 23″ × 9½” |
| Weight | 65 lbs |
| Filter Type | Washable/Reusable |
| Mounting | Wall-Mount Bracket Included |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This R-32 air conditioner meets Department of Energy minimum efficiency requirements for all U.S. climate zones
Goodman 1.5 Ton 14.3 SEER2 AC System with Air Handler: fitment and resources
Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the AHRI Directory of Certified Product Performance. Browse the rest of our 1.5 Ton Air Conditioners & AC Systems or the Goodman catalog, and see what customers say on our reviews page.
Ordering and delivery
In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.
Goodman 1.5 Ton 14.3 SEER2 AC System with Air Handler FAQ
Does the Goodman 1.5 Ton 14.3 SEER2 AC System with Air Handler ship free?
Yes on orders over $99 — most orders that include it qualify.
How do I know it fits my system?
Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.
Additional information
| Weight | 245.00 lbs |
|---|---|
| Dimensions | 29.00 × 29.00 × 36.00 in |
| System Type | AC + Air Handler System |
| Brand | Goodman |
| Tonnage | 1.5 Ton |
| SEER2 | 14.3 |
| Refrigerant | R-32 |
| Stages | Single Stage |
| Blower Motor | Multi-Speed ECM |
| Voltage | 208/230V |
