Goodman 1.5 Ton 16.2 SEER2 60,000 BTU 80% AFUE AC and Furnace System – Upflow – GXV6SS1810

Goodman 1.5 Ton 16.2 SEER2 60,000 BTU 80% AFUE AC and Furnace System – Upflow – GXV6SS1810

Name: GOODMAN 1.5 Ton 16.2 SEER2 R-32 80% - GXV6SS1810 | Buy Comfort Direct
SKU: GXV6SS1810, CAPEA2418B3, GRVT800603BN, GTST-CW-WH-A
Price: 5507.00 USD
Availability: InStock

$5,507.00

Condition: NewFree ShippingGoodman's standard 10 year parts warranty when registered online through the manufacturer.

Complete Your System Optional add-ons — each ships with your order as its own item

Line SetInsulated copper line set sized for this system (3/4" suction / 3/8" liquid)

Line Set CoverHides and protects the line set on an exterior wall

Condenser PadLevel, UV-stable plastic pad for the outdoor unit

Surge ProtectorProtects the compressor and control board from power surges

Disconnect & WhipOutdoor electrical disconnect, with an optional 6' weather-tight whip

Condensate Safety SwitchShuts the system off before a clogged drain overflows

Condensate PumpFor installs without a gravity drain

Air Filter

Propane (LP) Conversion KitOnly if the furnace will run on propane instead of natural gas

Your system total: $5,507.00

Product Details

Model Numbers: GXV6SS1810
CAPEA2418B3
GRVT800603BN
GTST-CW-WH-A
Brand: Goodman
Condition: New
Warranty: Goodman's standard 10 year parts warranty when registered online through the manufacturer.

Shop more:1.5 Ton Air Conditioners & AC Systems 1.5-Ton 5 Ton Heat Pumps & Heat Pump Systems 5-ton AC + Gas Furnace Systems Dual Fuel Systems Furnace + AC Systems Furnace + Heat Pump Systems Split Gas Systems

Description

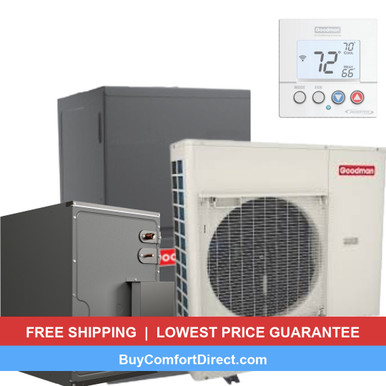

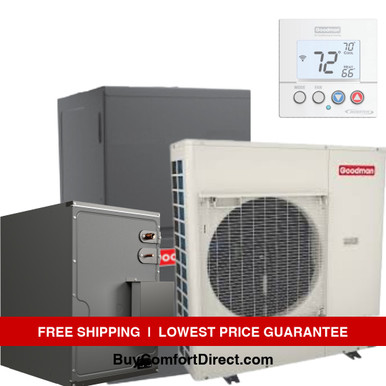

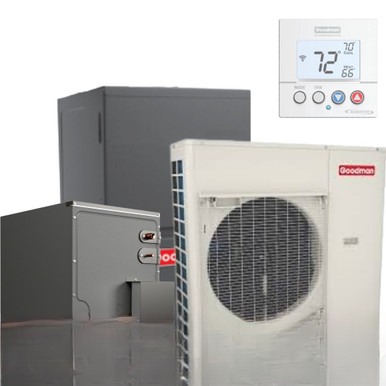

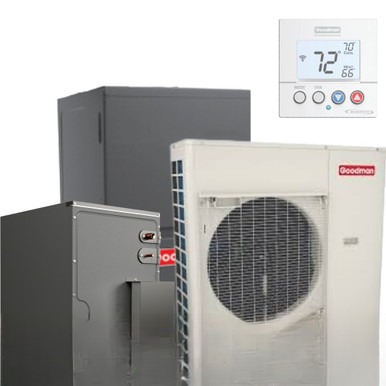

GOODMAN 1.5 Ton 16.2 SEER2 R-32 80% AFUE Gas Furnace Air Conditioning System (Upflow Coil)

Experience reliable home comfort with this complete Goodman 1.5-ton HVAC system (Upflow Coil). This matched system combines a high-efficiency 16.2 SEER2 air conditioner, a 80% AFUE single-stage gas furnace with multi-speed ECM blower, and a precision-engineered upflow evaporator coil with factory-installed TXV. Designed for dependable year-round heating and cooling performance, this system delivers excellent energy efficiency, quiet operation, and proven reliability with environmentally-friendly R-32 refrigerant.

Technical Specifications

Air Conditioner — GXV6SS1810 Specifications

Specification	Value
Manufacturer	Goodman
Model Number	GXV6SS1810
Product Type	Air Conditioner Condenser
Tonnage	1.5 Ton
Cooling Capacity	17,100 BTU/h
SEER2 Rating	16.2
Refrigerant Type	R-32
Refrigerant Charge	74 oz
Compressor Type	Swing
Voltage/Phase/Frequency	208/230V-1-60Hz
Min Circuit Ampacity	12.8 A
Max Overcurrent Protection	15 A
Sound Level	61 dBA
Liquid Line Size	⅜”
Suction Line Size	¾”
Dimensions (W×D×H)	36″ × 13″ × 27.375″
Shipping Weight	133 lbs

Gas Furnace — GRVT800603BN Specifications

Specification	Value
Manufacturer	Goodman
Model Number	GRVT800603BN
Product Type	Gas Furnace
BTU Input	60,000 BTU/h
BTU Output	48,000 BTU/h
AFUE	80%
Heating Stages	Two Stage
Blower Motor Type	Multi-Speed ECM
Configuration	Multi-Position
Voltage/Phase/Frequency	115/1/60V-1-60Hz
Min Circuit Ampacity	7.6 A
Max Overcurrent Protection	15.0 A
Dimensions (W×D×H)	33.375″ × 17.5″ × 17.5″
Shipping Weight	105 lbs

Evaporator Coil — CAPEA2418B3 Specifications

Specification	Value
Manufacturer	Goodman
Model Number	CAPEA2418B3
Product Type	Cased Upflow Evaporator Coil
Tonnage	2 Ton
Metering Device	Factory-Installed EEV
Configuration	Cased
Liquid Line Connection	⅜”
Suction Line Connection	¾”
Dimensions (W×D×H)	17.5″ × 21.0″ × 18.0″
Shipping Weight	43 lbs

Comprehensive Warranty Protection

Year Parts Warranty

Year Compressor Warranty

∞

Lifetime Heat Exchanger Warranty

Professional Installation Required

Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.

✓

DOE Compliant Nationwide

This 16.2 SEER2 equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones

Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.

Additional information

Weight	400.00 lbs
Dimensions	36.00 × 40.00 × 40.00 in
System Type	AC + Gas Furnace System
Brand	Goodman
Tonnage	1.5 Ton
SEER2	16.2
AFUE	80%
Heating BTU	60,000 BTU
Refrigerant	R-32
Airflow Direction	Upflow
Blower Motor	Multi-Speed ECM
Voltage	115V
