Goodman 2 Ton 14.3 SEER2 Air Conditioning System – Upflow – GLXS4BA2410
$4,453.00
-
Product Details
- Model Numbers
- GLXS4BA2410
GR9S920403ANA
CAPTA2422A3 - Brand
- Goodman
- Condition
- New
- Warranty
- Goodman's standard 10 year parts warranty when registered online through the manufacturer.
Description
The Goodman 2 Ton 14.3 SEER2 Air Conditioning System — Goodman 2 Ton 14.3 SEER2 Air Conditioning System – Upflow – GLXS4BA2410 — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.
About the Goodman 2 Ton 14.3 SEER2 Air Conditioning System
GOODMAN 2.0 Ton 14.3 SEER2 R-32 92% AFUE Gas Furnace Air Conditioning System (Upflow Coil)
Experience reliable home comfort with this complete Goodman 2.0-ton R-32 HVAC system (Upflow Coil). This matched system combines a high-efficiency 14.3 SEER2 air conditioner, a 92% AFUE single-stage gas furnace with multi-speed ECM blower, and a precision-engineered upflow/downflow evaporator coil with factory-installed TXV. Designed for dependable year-round heating and cooling performance, this system delivers excellent energy efficiency, quiet operation, and proven reliability with environmentally-friendly R-32 refrigerant.

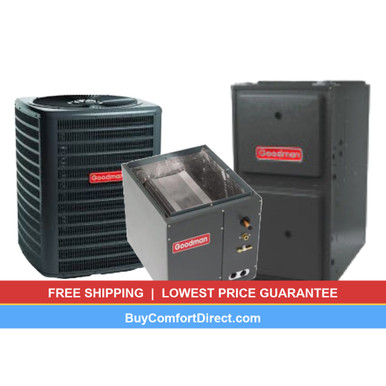

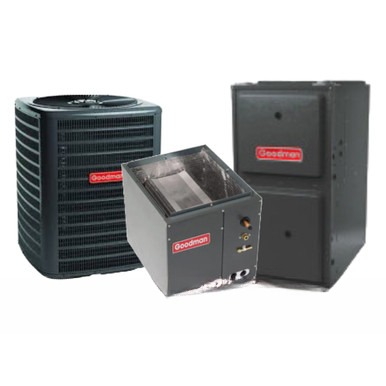

Complete System Components (Upflow Coil)
Air Conditioner
Goodman GLXS4BA2410A
2.0 Ton (24,000 BTU/h)
Single-Stage Rotary Compressor
R-32 Refrigerant
14.3 SEER2

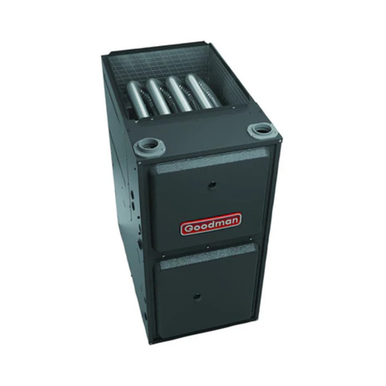

Gas Furnace
Goodman GR9S920403ANA
40,000 BTU/h Input
36,840 BTU/h Output
92% AFUE
Single-Stage Multi-Speed ECM

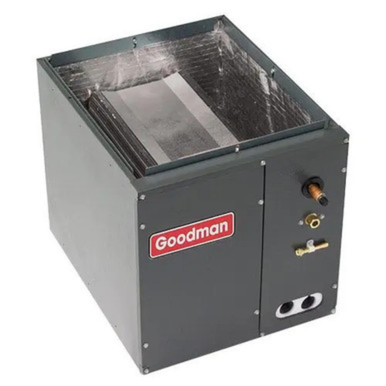

Evaporator Coil
Goodman CAPTA2422A3
2 Ton Cased Upflow/Downflow Coil
All-Aluminum Construction
Factory-Installed TXV
R-32 Compatible
Technical Specifications
Air Conditioner – GLXS4BA2410A Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | GLXS4BA2410A |
| Tonnage | 2.0 Ton |
| Cooling Capacity (Nominal) | 24,000 BTU/h |
| SEER2 Rating | 14.3 |
| EER2 Rating | 11.2 |
| Refrigerant | R-32 |
| Compressor Type | Single-Stage Rotary |
| Compressor RLA | 8.2 A |
| Compressor LRA | 41.2 A |
| Fan Motor Type | PSC (1/8 HP) |
| Voltage | 208–230V / 1Ph / 60Hz |
| Min Circuit Ampacity | 10.9 A |
| Max Overcurrent Protection | 15 A |
| Sound Level | 74.0 dBA |
| Dimensions (H×W×D) | 27″ × 26″ × 26″ |
| Weight | 117 lbs |
| Refrigerant Charge | 53 oz (Factory charged for 15′ line) |
| Liquid Line Size | ⅜” |
| Suction Line Size | ¾” |
Gas Furnace – GR9S920403ANA Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | GR9S920403ANA |
| BTU Input | 40,000 BTU/h |
| BTU Output | 36,840 BTU/h |
| AFUE | 92% |
| Stages | Single-Stage |
| Blower Motor | Multi-Speed ECM (9-Speed) |
| Blower HP | 1/2 HP |
| Blower Size | 10″ × 6″ |
| Number of Burners | 2 |
| Voltage | 115 VAC, 60 Hz, Single-Phase |
| Min Circuit Ampacity | 7.6 A |
| Max Overcurrent Device | 15 A |
| Temperature Rise Range | 35–65°F |
| Vent Diameter | 2″ |
| Filter Size | 16″ × 20″ × 1″ |
| Cabinet Width | 17½” |
| Dimensions (W×D×H) | 17½” × 28⅞” × 34½” |
| Weight | 106 lbs |
Evaporator Coil – CAPTA2422A3 Specifications
| Specification | Value |
|---|---|
| Manufacturer | Goodman |
| Model | CAPTA2422A3 |
| Tonnage | 1½–2 Ton |
| Type | Cased Upflow/Downflow Indoor Coil |
| Expansion Device | Factory-Installed TXV (Thermal Expansion Valve) |
| Refrigerant | R-32 Compatible |
| Construction | All-Aluminum A-Coil |
| Dimensions (W×D×H) | 14″ × 21″ × 22″ |
| Weight | 37 lbs |
| Liquid Connection | ⅜” |
| Suction Connection | ¾” |
| Cabinet Style | Cased with Drain Pan |
Comprehensive Warranty Protection
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This R-32 air conditioner meets Department of Energy minimum efficiency requirements for all U.S. climate zones
Goodman 2 Ton 14.3 SEER2 Air Conditioning System: fitment and resources
Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the ENERGY STAR furnace guide. Browse the rest of our 2 Ton Air Conditioners & AC Systems or the Goodman catalog, and see what customers say on our reviews page.
Ordering and delivery
In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.
Goodman 2 Ton 14.3 SEER2 Air Conditioning System FAQ
Does the Goodman 2 Ton 14.3 SEER2 Air Conditioning System ship free?
Yes on orders over $99 — most orders that include it qualify.
How do I know it fits my system?
Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.
Additional information
| Weight | 445.00 lbs |
|---|---|
| Dimensions | 28.00 × 21.00 × 33.50 in |
| System Type | AC + Gas Furnace System |
| Brand | Goodman |
| Tonnage | 2 Ton |
| SEER2 | 14.3 |
| AFUE | 92% |
| Refrigerant | R-32 |
| Stages | Single Stage |
| Airflow Direction | Upflow |
| Cabinet Width | 17" |
| Blower Motor | Multi-Speed ECM |
| Voltage | 115V |
