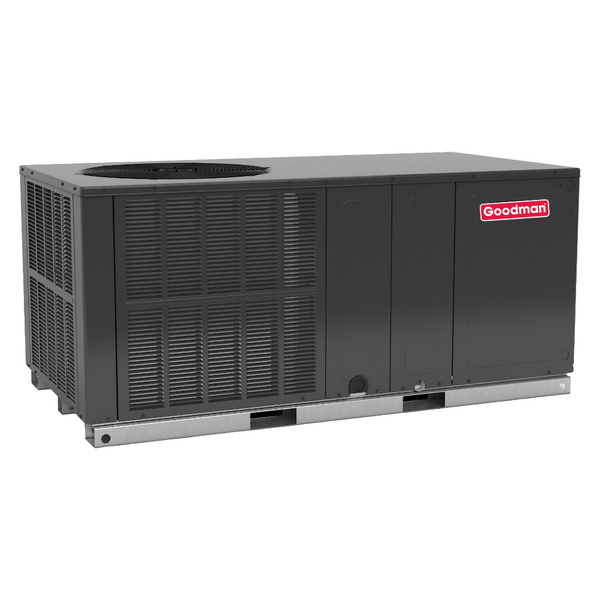

Goodman 5 Ton 13.4 SEER2 Packaged Unit – GPCH36031

Name: GPCH36031 – Goodman 5 Ton 13.4 SEER2 Packaged Unit - GPCH36031 | Free Shipping
Brand: Goodman
SKU: GPCH36031
Price: 5255.00 USD
Availability: InStock

$5,255.00

Condition: NewFree Shipping10-Year Limited Parts Warranty

Complete Your System Optional add-ons — each ships with your order as its own item

Thermostat

Condenser PadLevel, UV-stable plastic pad for the outdoor unit

Surge ProtectorProtects the compressor and control board from power surges

Disconnect & WhipOutdoor electrical disconnect, with an optional 6' weather-tight whip

Condensate Safety SwitchShuts the system off before a clogged drain overflows

Condensate PumpFor installs without a gravity drain

Air Filter

Your system total: $5,255.00

Rather talk to a person?

We will confirm the match for your home, quote it, and take your order by phone.

Call to Order: (877) 843-4822

Product Details

Model Number: GPCH36031
Brand: Goodman
Condition: New
Warranty: 10-Year Limited Parts Warranty

Shop more:3 Ton Package Units 3-Ton Package Units

Description

The GPCH36031 — Goodman 5 Ton 13.4 SEER2 Packaged Unit – GPCH36031 — is stocked and shipped by Buy Comfort Direct from Winder, Georgia. Specifications, fitment notes and ordering details are below; call (877) 843-4822 if you need it matched to your equipment first.

About the GPCH36031

Goodman 5 Ton 13.4 SEER2 Packaged Air Conditioner – GPCH36031

The Goodman GPCH36031 is an all-in-one 5 ton packaged air conditioner rated at 13.4 SEER2. It uses R-32 refrigerant, consolidates the indoor and outdoor sections into a single cabinet for easier installs, and ships pre-charged for straightforward setup. It meets DOE efficiency requirements for Northeast-region installations; verify local eligibility outside those zones. Compatible with optional electric heat kits for auxiliary heating needs (sold separately).

Technical Specifications

Specification	Value
Manufacturer	Goodman
Model Number	GPCH36031
Product Type	Packaged Air Conditioner
Tonnage	5 Ton
SEER2 Rating	13.4
EER2 Rating	10.6
Refrigerant Type	R-32
Cooling Capacity (BTU/h)	56000 BTU/h
Sensible Capacity (BTU/h)	40800 BTU/h
Airflow (CFM)	1675 CFM
Blower Motor	ECM (0.75 HP)
Compressor Type	Scroll
Factory Charge (oz)	78 oz
Voltage/Phase/Frequency	208-230V/1-Ph/60Hz
Min Circuit Ampacity	40.6 A
Max Overcurrent Protection	60 A
Sound Level (dBA)	78 dBA
Cabinet Size	Large
Duct Opening – Supply	14″ x 14″
Duct Opening – Return	14″ x 24″
Dimensions (H×W×D)	36.0″ x 66″ x 34″
Shipping Weight	410 lbs
Operating Weight	400 lbs

Warranty Coverage

Year Parts Warranty

Year Compressor Warranty

Professional Installation Required

Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.

✓

DOE Compliant – Northeast Region Only

This equipment meets Department of Energy efficiency requirements for residential HVAC installations only in Northeast U.S. climate zones. Typically not approved for installation in South, Southeast, or Southwest regions.

Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.

GPCH36031: fitment and resources

Equipment ratings are only valid as an AHRI-matched pairing; confirm the match before ordering. Our free HVAC system sizing tool gives a starting point for tonnage, and Background reading: the ENERGY STAR central air conditioner guide. Browse the rest of our 3 Ton Package Units or the Goodman catalog, and see what customers say on our reviews page.

Ordering and delivery

In-stock items ship from our Winder, Georgia warehouse; orders over $99 ship free. Large equipment travels by freight carrier and parts by ground, with tracking by email. Financing is available at checkout through Affirm, and contractors can set up a contractor account for trade pricing. Questions before you pay? Use the contact page or call (877) 843-4822.

GPCH36031 FAQ

Does the GPCH36031 ship free?

Yes on orders over $99 — most orders that include it qualify.

How do I know it fits my system?

Send us your equipment model number through the contact page or call (877) 843-4822 and we will confirm the match before it ships.

Additional information

Weight	350.00 lbs
Dimensions	48.00 × 48.00 × 60.00 in
System Type	Package Unit
Brand	Goodman
Tonnage	5 Ton
SEER2	13.4
Refrigerant	R-32
Blower Motor	Multi-Speed ECM
Voltage	208/230V
