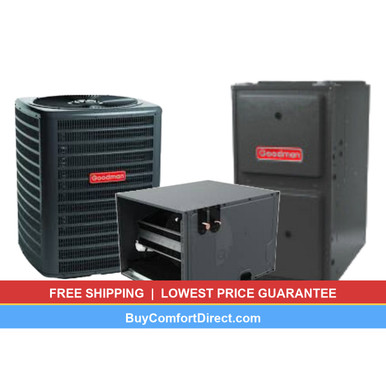

Goodman 5 Ton 13.4 SEER2 Air Conditioning System – Horizontal – GLXS3BN6010

Goodman 5 Ton 13.4 SEER2 Air Conditioning System – Horizontal – GLXS3BN6010

Name: GOODMAN 5 Ton 13.4 SEER2 R-32 80% AFUE - GLXS3BN6010 | Buy Comfort Direct
SKU: GLXS3BN6010, GR9S801005CNA, CHPT6030D3
Price: 5626.00 USD
Availability: InStock

$5,626.00

Condition: NewFree ShippingGoodman's standard 10 year parts warranty when registered online through the manufacturer.

Shipping restrictions: Because of federal regional efficiency standards this model cannot be sold or installed in: Alabama, Arkansas, Delaware, District of Columbia, Florida, Georgia, Hawaii, Kentucky, Louisiana, Maryland, Mississippi, North Carolina, Oklahoma, South Carolina, Tennessee, Texas, Virginia, Arizona, California, Nevada, New Mexico. Orders shipping to these states will not be accepted at checkout.

Complete Your System Optional add-ons — each ships with your order as its own item

Line SetInsulated copper line set sized for this system (7/8" suction / 3/8" liquid)

Line Set CoverHides and protects the line set on an exterior wall

Thermostat

Condenser PadLevel, UV-stable plastic pad for the outdoor unit

Surge ProtectorProtects the compressor and control board from power surges

Disconnect & WhipOutdoor electrical disconnect, with an optional 6' weather-tight whip

Condensate Safety SwitchShuts the system off before a clogged drain overflows

Condensate PumpFor installs without a gravity drain

Air Filter

Propane (LP) Conversion KitOnly if the furnace will run on propane instead of natural gas

Your system total: $5,626.00

Product Details

Model Numbers: GLXS3BN6010
GR9S801005CNA
CHPT6030D3
Brand: Goodman
Condition: New
Warranty: Goodman's standard 10 year parts warranty when registered online through the manufacturer.

Shop more:5 Ton Air Conditioners & AC Systems 5-Ton AC + Gas Furnace Systems Furnace + AC Systems Split Gas Systems

Description

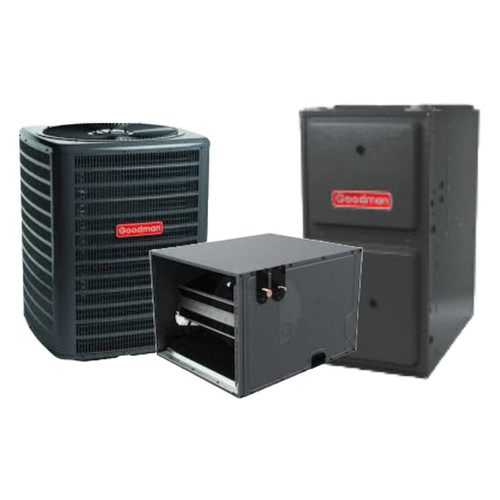

GOODMAN 5 Ton 13.4 SEER2 R-32 80% AFUE AC System (Horizontal Coil)

Experience year-round comfort with this complete Goodman 5-ton air conditioning system with horizontal coil. This matched system combines a high-efficiency 13.4 SEER2 air conditioner for efficient cooling, a 80% AFUE single-stage gas furnace for reliable heating, and a precision-engineered horizontal evaporator coil with factory-installed TXV. Designed for dependable performance with environmentally-friendly R-32 refrigerant.

Technical Specifications

Air Conditioner — GLXS3BN6010 Specifications

Specification	Value
Manufacturer	Goodman
Model Number	GLXS3BN6010
Series	Classic
Product Type	Air Conditioner Condenser
Tonnage	5 Ton
Cooling Capacity	60,000 BTU/h
SEER2 Rating	13.4
Refrigerant Type	R-32
Refrigerant Charge	91 oz
Compressor Type	Scroll
Voltage/Phase/Frequency	208/230V-1-60Hz
Min Circuit Ampacity	31.1 A
Max Overcurrent Protection	50 A
Sound Level	74.0 dBA
Liquid Line Size	⅜”
Suction Line Size	1⅛”
Dimensions (W×D×H)	35″ × 35″ × 39.5″
Shipping Weight	229 lbs

Gas Furnace — GR9S801005CNA Specifications

Specification	Value
Manufacturer	Goodman
Model Number	GR9S801005CNA
Product Type	Gas Furnace
BTU Input	100,500 BTU/h
BTU Output	80,400 BTU/h
AFUE	80%
Heating Stages	Single Stage
Blower Motor Type	PSC
Configuration	Multi-Position
Voltage/Phase/Frequency	120V-1-60Hz
Min Circuit Ampacity	15.0 A
Max Overcurrent Protection	15.0 A
Dimensions (W×D×H)	21.0″ × 29.0″ × 33.0″
Shipping Weight	180 lbs

Evaporator Coil — CHPTA6030D3 Specifications

Specification	Value
Manufacturer	Goodman
Model Number	CHPTA6030D3
Product Type	Cased Horizontal Evaporator Coil
Tonnage	5 Ton
Refrigerant Type	R-32 Compatible
Metering Device	Factory-Installed TXV
Configuration	Cased
Liquid Line Connection	⅜”
Suction Line Connection	¾”
Dimensions (W×D×H)	28″ × 27″ × 22″
Shipping Weight	55 lbs

Comprehensive Warranty Protection

Year Parts Warranty

Year Compressor Warranty

∞

Lifetime Heat Exchanger Warranty

Professional Installation Required

Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.

✓

DOE Compliant for Northern Regions

This complete R-32 13.4 SEER2 air conditioning system meets Department of Energy efficiency requirements for residential HVAC installations in Northern U.S. climate zones

Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.

Additional information

Weight	445.00 lbs
Dimensions	28.00 × 21.00 × 33.50 in
System Type	AC + Gas Furnace System
Brand	Goodman
Tonnage	5 Ton
SEER2	13.4
AFUE	80%
Refrigerant	R-32
Airflow Direction	Horizontal
Blower Motor	PSC
Voltage	115V
