GREE Multi Gen2 42,000 BTU 3-Zone Mini-Split Heat Pump System - MULTI42HP230V1EO
brand: Gree
- SKU:
- MULTI42HP230V1EO
- Shipping:
- Free Shipping
GREE Multi Gen2 42,000 BTU 3-Zone Mini-Split Heat Pump System - MULTI42HP230V1EO

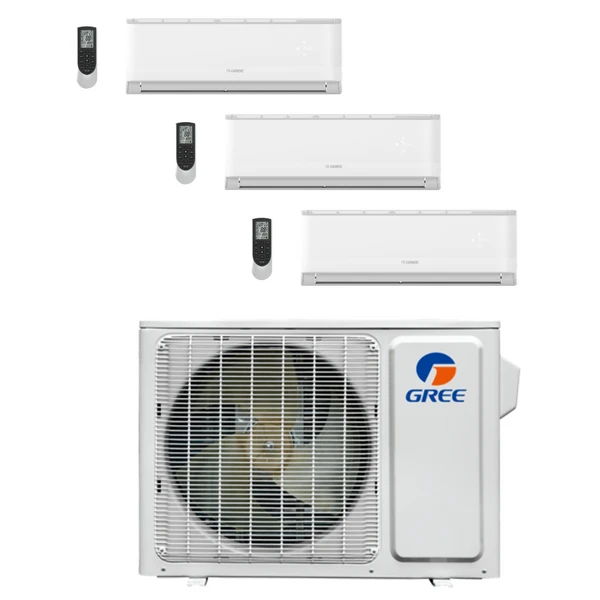

This pre-configured 3-zone mini-split system pairs the GREE Multi Gen2 MULTI42HP230V1EO outdoor condenser (42,000 BTU/h) with two 9,000 BTU Livo Gen4 wall-mount heads and one 18,000 BTU Livo Gen4 wall-mount head. The Multi Gen2 outdoor unit supports up to 5 indoor zones with independent temperature control per room. DC inverter technology modulates compressor speed to match the combined load across all zones for efficient, quiet operation.
System Configuration
- Outdoor Unit: MULTI42HP230V1EO — 42,000 BTU Multi Gen2 Condenser (208-230V)
- Zone 1: 4LIV09HP115V1AH — 9,000 BTU Livo Gen4 Wall-Mount Head (115V)
- Zone 2: 4LIV09HP115V1AH — 9,000 BTU Livo Gen4 Wall-Mount Head (115V)
- Zone 3: 4LIV18HP230V1AH — 18,000 BTU Livo Gen4 Wall-Mount Head (230V)
- Total Indoor Capacity: 36,000 BTU/h (9k + 9k + 18k)
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | GREE |
| Outdoor Unit Model | MULTI42HP230V1EO |
| Series | Multi Gen2 |
| System Type | Multi-Zone Heat Pump |
| Outdoor Unit Capacity | 42,000 BTU/h |
| Max Zones Supported | Up to 5 |
| Zones in This Config | 3 (9k + 9k + 18k) |
| Refrigerant | R-410A |
| Outdoor Unit Voltage | 208-230V / 1-Ph / 60Hz |
| Zone 1 Indoor | 4LIV09HP115V1AH (9,000 BTU, 115V) |
| Zone 2 Indoor | 4LIV09HP115V1AH (9,000 BTU, 115V) |
| Zone 3 Indoor | 4LIV18HP230V1AH (18,000 BTU, 230V) |
| Indoor Unit Type | Livo Gen4 Wall-Mount |
| Remote Controls | Wireless with LCD (1 per zone, 3 total included) |
Warranty Coverage
Note: Residential applications only. Warranty terms and conditions apply.
Professional Installation Required
Multi-zone mini-split systems require certified HVAC technician installation including individual refrigerant line sets per zone, electrical wiring for the outdoor unit and each indoor head, vacuum/charge procedures, and branch distribution piping.
Complete Multi-Zone System
Includes outdoor condenser and all indoor units listed above. Refrigerant line sets required for each zone (sold separately). Verify total combined capacity does not exceed outdoor unit rating.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
