HAIER 2 Ton 18.0 SEER2 R-454B Heat Pump System with Multi-Positional Air Handler
brand: Haier
- SKU:
- 1U24T3PS1HE,NAM24V1TA5S
- Condition:
- New
- Shipping:
- Free Shipping

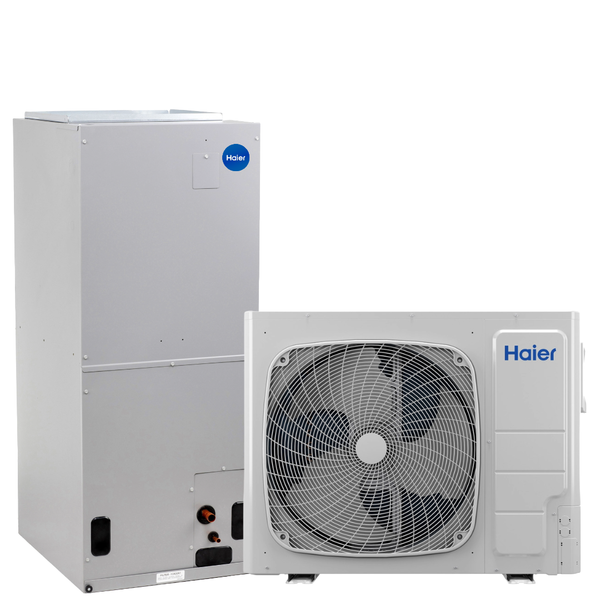

HAIER 2 Ton 18.0 SEER2 R-454B Heat Pump System with Multi-Positional Air Handler
This 2-ton condenser and air handler system pairs the 1U24T3PS1HE outdoor condenser unit with the NAM24V1TA5S variable speed air handler to deliver 18 SEER2 efficiency. Both components utilize R-454B refrigerant and are designed to work together as a matched system. The variable speed blower in the air handler helps optimize airflow and comfort control throughout your space, making this combination suitable for residential cooling applications.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | 1U24T3PS1HE |
| Product Type | Heat Pump |
| Tonnage | 2 Ton |
| Cooling Capacity (BTU/h) | 24000 BTU/h |
| Heating Capacity (BTU/h) | 24000 BTU/h |
| SEER2 Rating | 18.0 |
| Defrost Type | Demand |
| Refrigerant Type | R-454B |
| Compressor Type | Inverter |
| Voltage/Phase/Frequency | 208-230V/1-Ph/60Hz |
| Min Circuit Ampacity | 21 A |
| Max Overcurrent Protection | 30 A |
| Factory Charge (oz) | 62 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Sound Level (dBA) | 69 dBA |
| Dimensions (H×W×D) | 30.125" x 40.188" x 17.125" |
| Shipping Weight | 176.4 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | NAM24V1TA5S |
| Product Type | Multi-Position Air Handler |
| Tonnage | 2 Ton |
| Airflow (CFM) | 800 CFM |
| Blower Motor Type | Variable Speed |
| Refrigerant Type | R-454B |
| Metering Device | TXV |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Voltage/Phase/Frequency | 208/230V/1-Ph/60Hz |
| Min Circuit Ampacity | 4.9 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (H×W×D) | 45.5" x 18.5" x 16.5" |
| Shipping Weight | 136.0 lbs |
Features
- 18 SEER2 energy efficiency rating for reduced operating costs
- 2 ton cooling capacity suitable for medium-sized spaces
- R-454B refrigerant for environmentally responsible operation
- Variable speed blower adjusts airflow for consistent comfort
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
