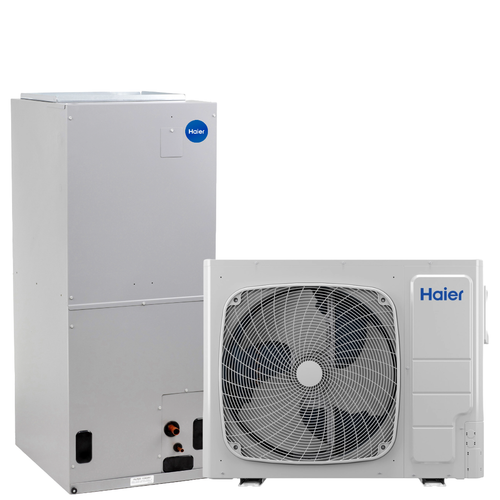

HAIER 5 Ton 18.0 SEER2 R-454B Heat Pump System with Multi-Positional Air Handler
brand: Haier
- SKU:
- 1U60T3PE1HE,NAM60V1TA5S
- Condition:
- New
- Shipping:
- Free Shipping
HAIER 5 Ton 18.0 SEER2 R-454B Heat Pump System with Multi-Positional Air Handler
This condenser and air handler system pairs the 1U60T3PE1HE outdoor unit with the NAM60V1TA5S air handler to deliver efficient whole-home cooling and heating. The 5-ton outdoor condenser achieves up to 17 SEER2 performance, while the matching 5-ton air handler features a variable speed blower and is rated up to 18 SEER2. Both components utilize R-454B refrigerant, providing a modern solution for residential climate control needs.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | 1U60T3PE1HE |
| Product Type | Heat Pump |
| Tonnage | 5 Ton |
| Cooling Capacity (BTU/h) | 60000 BTU/h |
| Heating Capacity (BTU/h) | 60000 BTU/h |
| SEER2 Rating | 18.0 |
| Defrost Type | Demand |
| Refrigerant Type | R-454B |
| Compressor Type | Inverter |
| Voltage/Phase/Frequency | 208-230V/1-Ph/60Hz |
| Min Circuit Ampacity | 37 A |
| Max Overcurrent Protection | 60 A |
| Factory Charge (oz) | 125 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Sound Level (dBA) | 78 dBA |
| Dimensions (H×W×D) | 56.312" x 41.625" x 19.875" |
| Shipping Weight | 306.4 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | NAM60V1TA5S |
| Product Type | Multi-Position Air Handler |
| Tonnage | 5 Ton |
| Airflow (CFM) | 2000 CFM |
| Blower Motor Type | Variable Speed |
| Refrigerant Type | R-454B |
| Metering Device | TXV |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Voltage/Phase/Frequency | 208/230V/1-Ph/60Hz |
| Min Circuit Ampacity | 9.3 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (H×W×D) | 59.75" x 21.5" x 19.5" |
Features
- 5-ton cooling capacity for whole-home comfort
- 17 SEER2 energy efficiency rating
- R-454B refrigerant for reduced environmental impact
- Variable speed blower for enhanced airflow control
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
