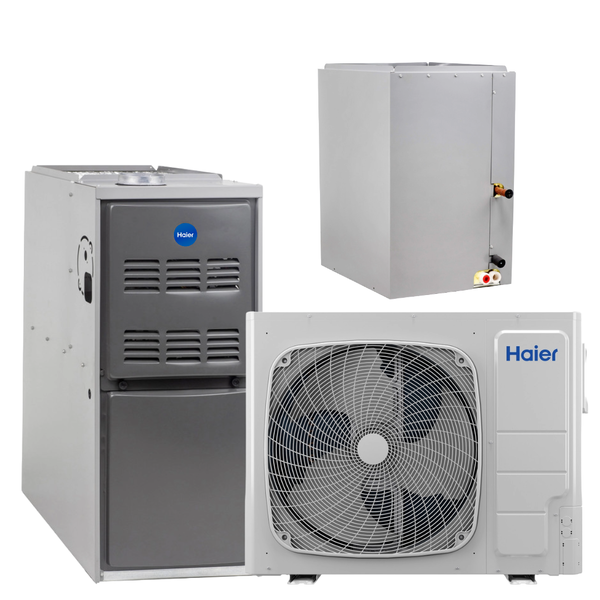

HAIER 3 Ton 18.0 SEER2 R-454B 80% AFUE 70K BTU Dual Fuel System (Horizontal Coil)
brand: Haier
- SKU:
- 1U36T3PC1HE,NF80U070V3AR,NCHC36AT5S
- Condition:
- New
- Shipping:
- Free Shipping
HAIER 3 Ton 18.0 SEER2 R-454B 80% AFUE 70K BTU Dual Fuel System (Horizontal Coil)
This complete furnace and coil system pairs a 3-ton outdoor condenser unit with an 80% AFUE gas furnace featuring a variable speed blower and a matching evaporator coil. The system operates with R-454B refrigerant and delivers up to 18.0 SEER2 cooling efficiency when properly matched. Designed for whole-home comfort, this configuration provides both reliable heating and high-efficiency air conditioning performance in a coordinated package.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | 1U36T3PC1HE |
| Product Type | Heat Pump |
| Tonnage | 3 Ton |
| Cooling Capacity (BTU/h) | 36000 BTU/h |
| Heating Capacity (BTU/h) | 36000 BTU/h |
| SEER2 Rating | 18.0 |
| Defrost Type | Demand |
| Refrigerant Type | R-454B |
| Compressor Type | Inverter |
| Voltage/Phase/Frequency | 208-230V/1-Ph/60Hz |
| Min Circuit Ampacity | 24 A |
| Max Overcurrent Protection | 35 A |
| Factory Charge (oz) | 94 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Sound Level (dBA) | 75 dBA |
| Dimensions (H×W×D) | 33.062" x 43.125" x 19.875" |
| Shipping Weight | 213.8 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | NF80U070V3AR |
| Product Type | 80% AFUE Gas Furnace |
| AFUE Rating | 80% |
| Input BTU/h | 66,000 BTU |
| Output BTU/h | 52,000 BTU |
| Heating Stages | 1 |
| Blower Motor Type | Variable Speed ECM (1/2 HP) |
| Fuel Type | Natural Gas / LP |
| Gas Connection Size | 1/2" FPT |
| Voltage/Phase/Frequency | 120V/1-Ph/60Hz |
| Min Circuit Ampacity | 7.7 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (H×W×D) | 33.0" x 14.5" x 28.5" |
| Shipping Weight | 128.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | NCHC36AT5S |
| Product Type | Horizontal Evaporator Coil |
| Tonnage | 3 Ton |
| Nominal Cooling (BTU/h) | 36000 BTU/h |
| Refrigerant Type | R-454B |
| Metering Device | TXV |
| Coil Configuration | Cased Horizontal |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Drain Connection Size | (2) 3/4" FPT |
| Dimensions (W×D×H) | 14.5" x 21.5" x 27.25" |
| Shipping Weight | 44.65 lbs |
Features
- Complete 3-ton system with 18.0 SEER2 energy efficiency rating
- 80% AFUE gas furnace with variable speed blower
- R-454B refrigerant compatible outdoor unit and indoor coil
- 17.5 SEER2 condenser paired with matched indoor components
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
