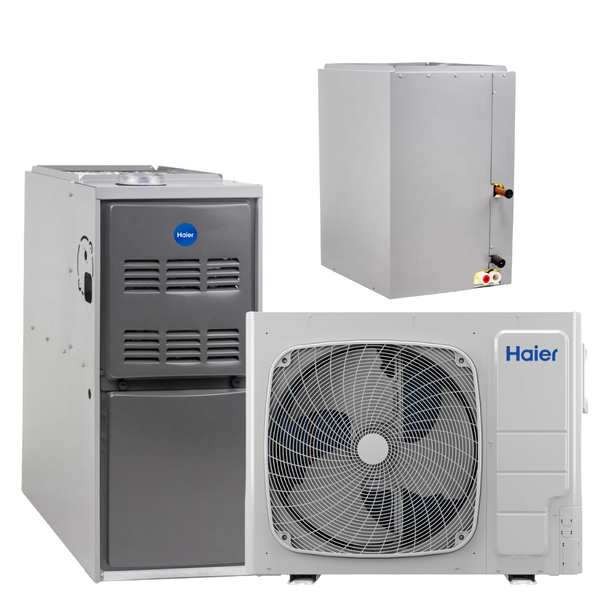

HAIER 3 Ton 18.0 SEER2 R-454B 80% AFUE 70K BTU Dual Fuel System (Horizontal Coil)
brand: Haier
- SKU:
- 1U36T3PC1HE,NF80U070S3AR,NCHC36AT5S
- Condition:
- New
- Shipping:
- Free Shipping
HAIER 3 Ton 18.0 SEER2 R-454B 80% AFUE 70K BTU Dual Fuel System (Horizontal Coil)
This complete furnace and coil system pairs a 3-ton outdoor condensing unit with an 80% AFUE gas furnace and matching evaporator coil to deliver efficient whole-home comfort. The system achieves up to 18.0 SEER2 cooling performance and utilizes R-454B refrigerant. Designed for reliable operation, this 3-ton configuration provides balanced heating and cooling capacity for medium-sized homes, combining proven furnace technology with modern air conditioning components in a single coordinated package.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | 1U36T3PC1HE |
| Product Type | Heat Pump |
| Tonnage | 3 Ton |
| Cooling Capacity (BTU/h) | 36000 BTU/h |
| Heating Capacity (BTU/h) | 36000 BTU/h |
| SEER2 Rating | 18.0 |
| Defrost Type | Demand |
| Refrigerant Type | R-454B |
| Compressor Type | Inverter |
| Voltage/Phase/Frequency | 208-230V/1-Ph/60Hz |
| Min Circuit Ampacity | 24 A |
| Max Overcurrent Protection | 35 A |
| Factory Charge (oz) | 94 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Sound Level (dBA) | 75 dBA |
| Dimensions (H×W×D) | 33.062" x 43.125" x 19.875" |
| Shipping Weight | 213.8 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | NF80U070S3AR |
| Product Type | 80% AFUE Gas Furnace |
| AFUE Rating | 80% |
| Input BTU/h | 66,000 BTU |
| Output BTU/h | 53,000 BTU |
| Heating Stages | 1 |
| Blower Motor Type | Multi-Speed ECM (Constant Torque) (1/2 HP) |
| Fuel Type | Natural Gas / LP |
| Gas Connection Size | 1/2" FPT |
| Voltage/Phase/Frequency | 120V/1-Ph/60Hz |
| Min Circuit Ampacity | 6.8 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (H×W×D) | 33.0" x 14.5" x 28.5" |
| Shipping Weight | 111.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | NCHC36AT5S |
| Product Type | Horizontal Evaporator Coil |
| Tonnage | 3 Ton |
| Nominal Cooling (BTU/h) | 36000 BTU/h |
| Refrigerant Type | R-454B |
| Metering Device | TXV |
| Coil Configuration | Cased Horizontal |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Drain Connection Size | (2) 3/4" FPT |
| Dimensions (W×D×H) | 14.5" x 21.5" x 27.25" |
| Shipping Weight | 44.65 lbs |
Features
- 3-ton cooling capacity system with matched components
- 17.5 SEER2 outdoor condenser for efficient cooling performance
- 80% AFUE gas furnace for reliable heating
- R-454B refrigerant compatible across all cooling components
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
