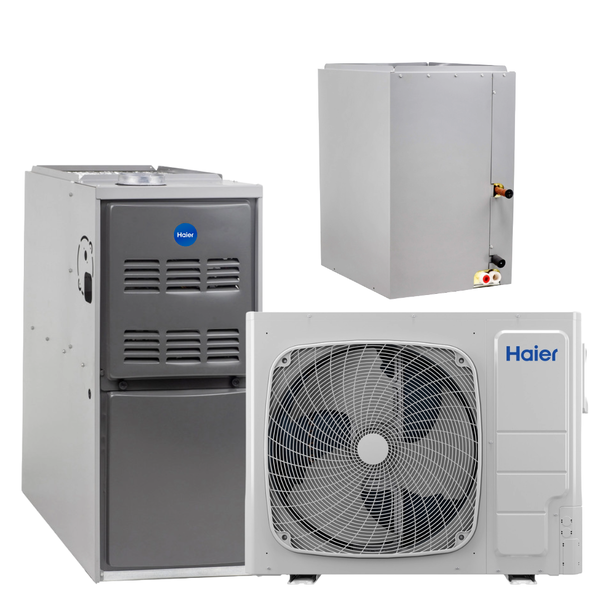

HAIER 5 Ton 18.0 SEER2 R-454B 80% AFUE 110K BTU Dual Fuel System (Upflow Coil)
brand: Haier
- SKU:
- 1U60T3PE1HE,NF80U110V5CR,NCUC60CT5S
- Condition:
- New
- Shipping:
- Free Shipping
HAIER 5 Ton 18.0 SEER2 R-454B 80% AFUE 110K BTU Dual Fuel System (Upflow Coil)
This complete heating and cooling system pairs a 5-ton condenser with 17.0 SEER2 cooling performance, an 80% AFUE gas furnace featuring a variable-speed blower, and a matching evaporator coil. All three components operate with R-454B refrigerant and are designed to work together as a coordinated system. The furnace achieves up to 18.0 SEER2 when combined with the coil, delivering reliable year-round comfort for residential applications.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | 1U60T3PE1HE |
| Product Type | Heat Pump |
| Tonnage | 5 Ton |
| Cooling Capacity (BTU/h) | 60000 BTU/h |
| Heating Capacity (BTU/h) | 60000 BTU/h |
| SEER2 Rating | 18.0 |
| Defrost Type | Demand |
| Refrigerant Type | R-454B |
| Compressor Type | Inverter |
| Voltage/Phase/Frequency | 208-230V/1-Ph/60Hz |
| Min Circuit Ampacity | 37 A |
| Max Overcurrent Protection | 60 A |
| Factory Charge (oz) | 125 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Sound Level (dBA) | 78 dBA |
| Dimensions (H×W×D) | 56.312" x 41.625" x 19.875" |
| Shipping Weight | 306.4 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | NF80U110V5CR |
| Product Type | 80% AFUE Gas Furnace |
| AFUE Rating | 80% |
| Input BTU/h | 110,000 BTU |
| Output BTU/h | 87,000 BTU |
| Heating Stages | 1 |
| Blower Motor Type | Variable Speed ECM (1/2 HP) |
| Fuel Type | Natural Gas / LP |
| Gas Connection Size | 1/2" FPT |
| Voltage/Phase/Frequency | 120V/1-Ph/60Hz |
| Min Circuit Ampacity | 12.8 A |
| Max Overcurrent Protection | 20.0 A |
| Dimensions (H×W×D) | 33.0" x 21.0" x 28.5" |
| Shipping Weight | 181.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | NCUC60CT5S |
| Product Type | Upflow Evaporator Coil |
| Tonnage | 5 Ton |
| Nominal Cooling (BTU/h) | 60000 BTU/h |
| Refrigerant Type | R-454B |
| Metering Device | TXV |
| Coil Configuration | Cased Upflow |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Drain Connection Size | (2) 3/4" FPT |
| Dimensions (W×D×H) | 21.0" x 22.0" x 32.25" |
| Shipping Weight | 69.35 lbs |
Features
- 5-ton cooling capacity with 18 SEER2 system efficiency rating
- R-454B refrigerant compatible across all components
- 80% AFUE gas furnace with variable speed blower operation
- Complete matched condenser, furnace, and coil system package
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
