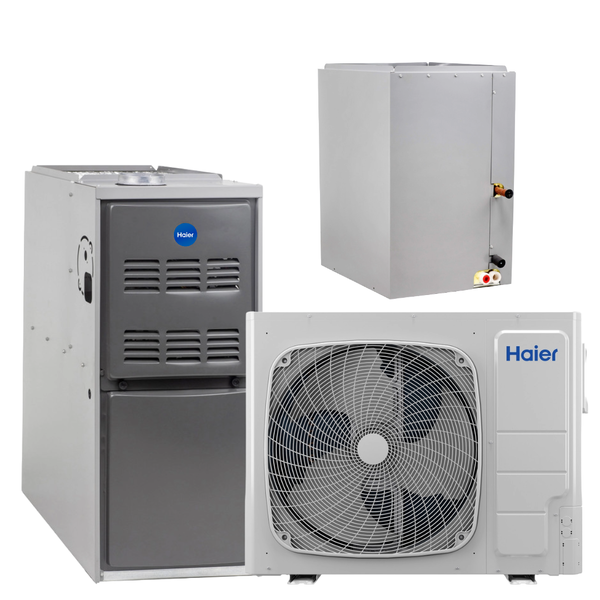

HAIER 5 Ton 18.0 SEER2 R-454B 80% AFUE 90K BTU Dual Fuel System (Upflow Coil)
brand: Haier
- SKU:
- 1U60T3PE1HE,NF80U090V4BR,NCUC48BT5S
- Condition:
- New
- Shipping:
- Free Shipping
HAIER 5 Ton 18.0 SEER2 R-454B 80% AFUE 90K BTU Dual Fuel System (Upflow Coil)
This complete furnace and coil system pairs a 5-ton outdoor condenser unit delivering 17 SEER2 cooling performance with an 80 AFUE gas furnace featuring variable speed blower technology and a matching evaporator coil. All components operate on R-454B refrigerant and are designed to work together for reliable year-round comfort. The furnace achieves 18 SEER2 when paired with the included 4-ton coil, while the 5-ton condenser provides robust cooling capacity for larger spaces.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | 1U60T3PE1HE |
| Product Type | Heat Pump |
| Tonnage | 5 Ton |
| Cooling Capacity (BTU/h) | 60000 BTU/h |
| Heating Capacity (BTU/h) | 60000 BTU/h |
| SEER2 Rating | 18.0 |
| Defrost Type | Demand |
| Refrigerant Type | R-454B |
| Compressor Type | Inverter |
| Voltage/Phase/Frequency | 208-230V/1-Ph/60Hz |
| Min Circuit Ampacity | 37 A |
| Max Overcurrent Protection | 60 A |
| Factory Charge (oz) | 125 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Sound Level (dBA) | 78 dBA |
| Dimensions (H×W×D) | 56.312" x 41.625" x 19.875" |
| Shipping Weight | 306.4 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | NF80U090V4BR |
| Product Type | 80% AFUE Gas Furnace |
| AFUE Rating | 80% |
| Input BTU/h | 88,000 BTU |
| Output BTU/h | 70,000 BTU |
| Heating Stages | 1 |
| Blower Motor Type | Variable Speed ECM (1/2 HP) |
| Fuel Type | Natural Gas / LP |
| Gas Connection Size | 1/2" FPT |
| Voltage/Phase/Frequency | 120V/1-Ph/60Hz |
| Min Circuit Ampacity | 12.8 A |
| Max Overcurrent Protection | 20.0 A |
| Dimensions (H×W×D) | 33.0" x 17.5" x 28.5" |
| Shipping Weight | 154.0 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | NCUC48BT5S |
| Product Type | Upflow Evaporator Coil |
| Tonnage | 4 Ton |
| Nominal Cooling (BTU/h) | 48000 BTU/h |
| Refrigerant Type | R-454B |
| Metering Device | TXV |
| Coil Configuration | Cased Upflow |
| Liquid Line Size | 3/8" |
| Suction Line Size | 3/4" |
| Drain Connection Size | (2) 3/4" FPT |
| Dimensions (W×D×H) | 17.5" x 21.0" x 28.25" |
| Shipping Weight | 52.25 lbs |
Features
- 5-ton outdoor unit with 17.0 SEER2 energy efficiency rating
- 80% AFUE gas furnace with variable speed blower
- R-454B refrigerant system for reduced environmental impact
- Complete furnace and coil system for reliable home comfort
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
