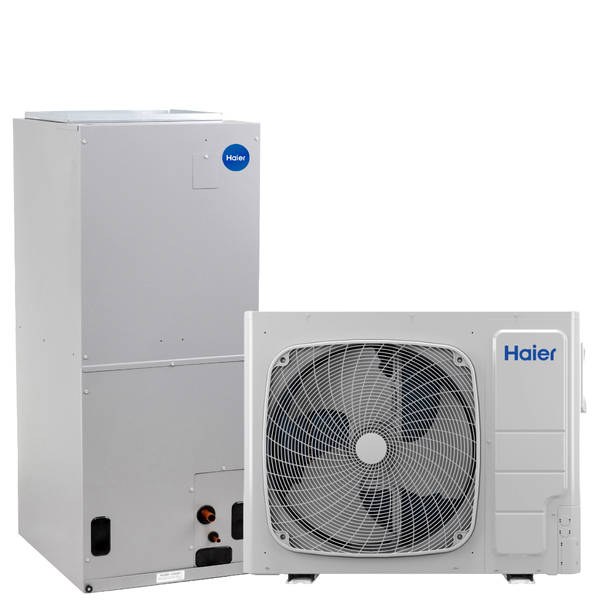

HAIER 5 Ton 18.0 SEER2 R-454B Heat Pump System with Multi-Positional Air Handler
brand: Haier
- SKU:
- 1U60T3PE1HE,NAM48V1TA5S
- Condition:
- New
- Shipping:
- Free Shipping
HAIER 5 Ton 18.0 SEER2 R-454B Heat Pump System with Multi-Positional Air Handler
This condenser and air handler system pairs the 1U60T3PE1HE outdoor unit with the NAM48V1TA5S air handler to deliver efficient home cooling. The 5-ton condenser features a SEER2 rating of 17.0 and operates on R-454B refrigerant, while the 4-ton air handler offers a SEER2 rating of 18.0 with a variable speed blower and R-454B refrigerant compatibility. Together, these components provide a reliable foundation for residential climate control installations.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | 1U60T3PE1HE |
| Product Type | Heat Pump |
| Tonnage | 5 Ton |
| Cooling Capacity (BTU/h) | 60000 BTU/h |
| Heating Capacity (BTU/h) | 60000 BTU/h |
| SEER2 Rating | 18.0 |
| Defrost Type | Demand |
| Refrigerant Type | R-454B |
| Compressor Type | Inverter |
| Voltage/Phase/Frequency | 208-230V/1-Ph/60Hz |
| Min Circuit Ampacity | 37 A |
| Max Overcurrent Protection | 60 A |
| Factory Charge (oz) | 125 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Sound Level (dBA) | 78 dBA |
| Dimensions (H×W×D) | 56.312" x 41.625" x 19.875" |
| Shipping Weight | 306.4 lbs |
| Specification | Value |
|---|---|
| Manufacturer | Haier |
| Model Number | NAM48V1TA5S |
| Product Type | Multi-Position Air Handler |
| Tonnage | 4 Ton |
| Airflow (CFM) | 1600 CFM |
| Blower Motor Type | Variable Speed |
| Refrigerant Type | R-454B |
| Metering Device | TXV |
| Drain Connection | (2) |
| Liquid Line Size | 3/8" |
| Suction Line Size | 7/8" |
| Voltage/Phase/Frequency | 208/230V/1-Ph/60Hz |
| Min Circuit Ampacity | 9.3 A |
| Max Overcurrent Protection | 15.0 A |
| Dimensions (H×W×D) | 55.0" x 21.5" x 19.5" |
| Shipping Weight | 179.0 lbs |
Features
- 5-ton outdoor condenser unit paired with 4-ton air handler
- 17.0 SEER2 system efficiency for year-round climate control
- R-454B low-GWP refrigerant in both indoor and outdoor units
- Variable speed blower adjusts airflow for consistent comfort and efficiency
Warranty Coverage
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
