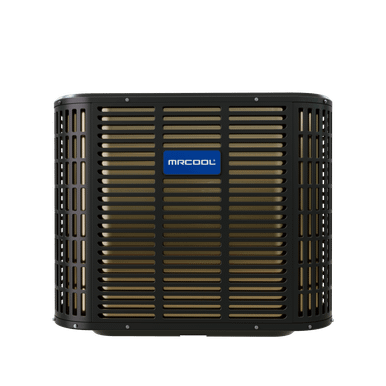

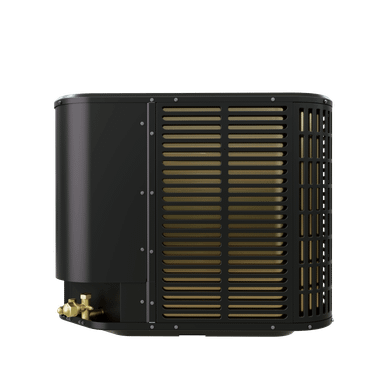

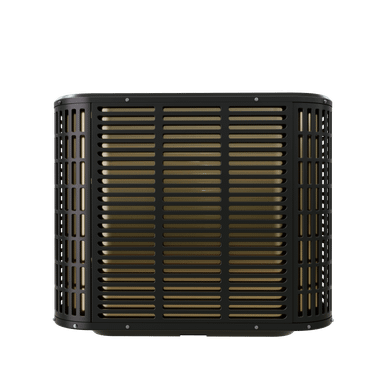

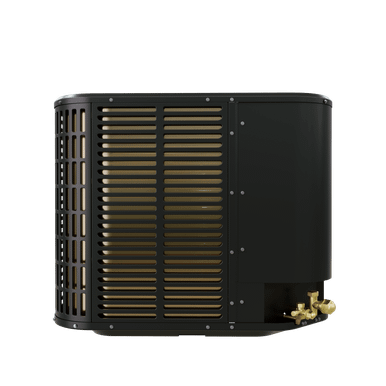

MRCOOL 2 Ton 18 SEER2 Heat Pump Condenser - MCAESHV8T2421BA
The MRCOOL® Signature Series TruInverter™ 24K Heat Pump Condenser delivers reliable, energy-efficient comfort all year long, making it an excellent choice for homeowners who want strong performance without high utility bills. With efficiency ratings of 18 SEER2 and 9 HSPF2, it provides consistent heating and cooling while keeping energy use in check—whether you’re upgrading an old system or installing new. This unit comes factory-charged with R-454B refrigerant, a next-generation, environmentally responsible option that offers excellent heat-transfer performance while significantly reducing global warming potential. Factory charging also speeds up installation and minimizes labor and handling errors. Further simplifying the setup, this system is designed to work seamlessly with MRCOOL® No-Vac® Quick Connect® line sets, which are pre-charged and eliminate the need for vacuuming or evacuation. This specialized compatibility significantly reduces installation time and removes the need for expensive specialized tools, making the process faster and more reliable. At the core of the system is TruInverter™ variable-speed technology, which continuously adjusts compressor output to match real-time demand. This delivers more stable indoor temperatures, improved efficiency, quieter operation, and reduced wear on system components for a longer service life. Designed for quiet operation, the TruInverter™ 24K runs at just 67 decibels, comparable to a dishwasher, with a sound-dampening top that further reduces noise. Durable construction includes a steel louver coil guard and wire fan discharge grille to protect against debris and weather, along with a service-friendly layout for easier maintenance. For added peace of mind, it’s backed by a 10-year parts warranty and a limited lifetime compressor warranty. With high efficiency, quiet performance, and rugged reliability, the MRCOOL® TruInverter™ 24K is a smart, long-term investment in home comfort.
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | MRCOOL |
| Model Number | MCAESHV8T2421BA |
| Product Type | Heat Pump Condenser |
| Series | TruInverter |
| Tonnage | 2 |
| Cooling Capacity | 24,000 BTU |
| Heating Capacity | 24,000 BTU |
| SEER2 | 18 |
| EER2 | 10 |
| Refrigerant | R-454B |
| Voltage | 208/230 V |
| Phase | 1 |
| Color | Gunmetal |
| Unit Dimensions | 24.94"H x 29.125"W x 29.125"D |
| Shipping Weight | 159 lb |
| Parts Warranty | 10 Year |
| Compressor Warranty | Lifetime |
| Warranty | 10 Year Parts, Lifetime Compressor |
Compliance & Shipping Notices
- WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Warranty Coverage
10 Year Parts, Lifetime Compressor
Professional Installation Required
Certified HVAC technician installation ensures optimal performance, safety compliance, and full warranty protection.
DOE Compliant Nationwide
This equipment meets Department of Energy efficiency requirements for residential HVAC installations across all U.S. climate zones.
Important: Check state and local codes and ordinances before purchasing. Product availability and compliance requirements may vary by region.
